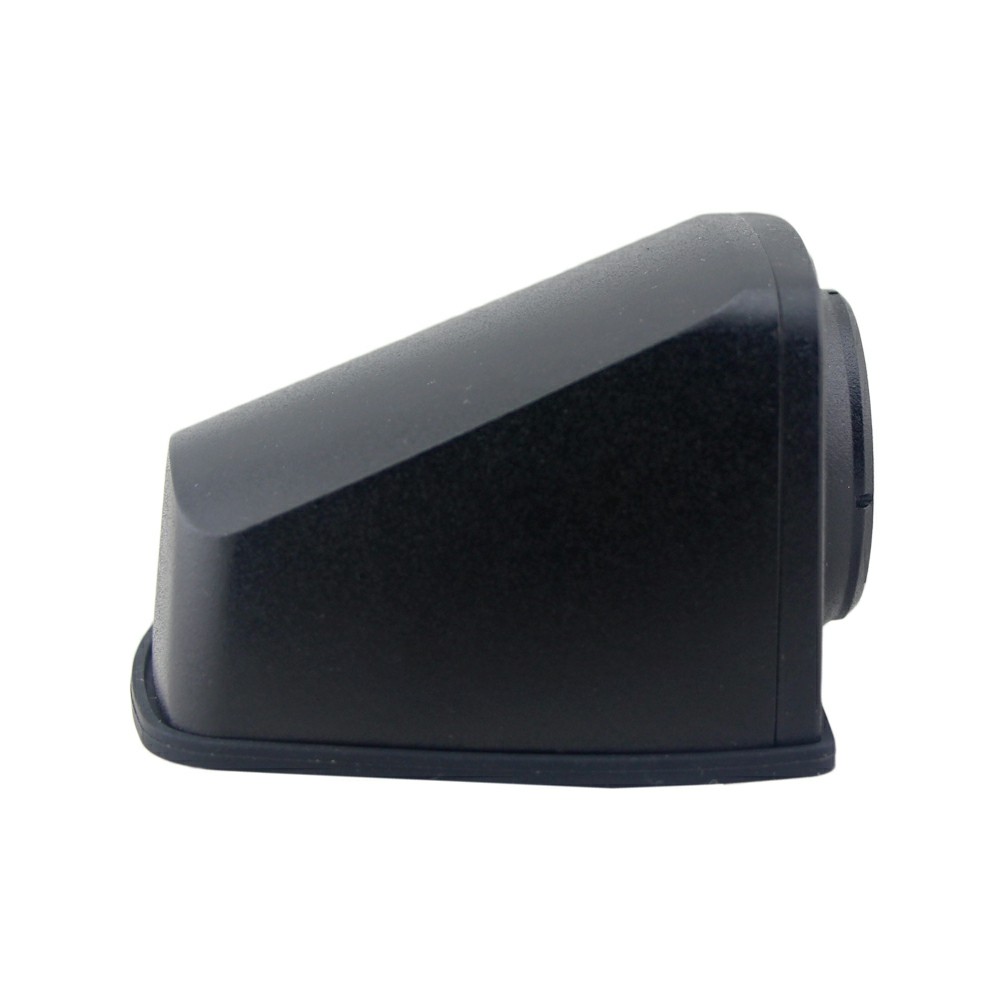

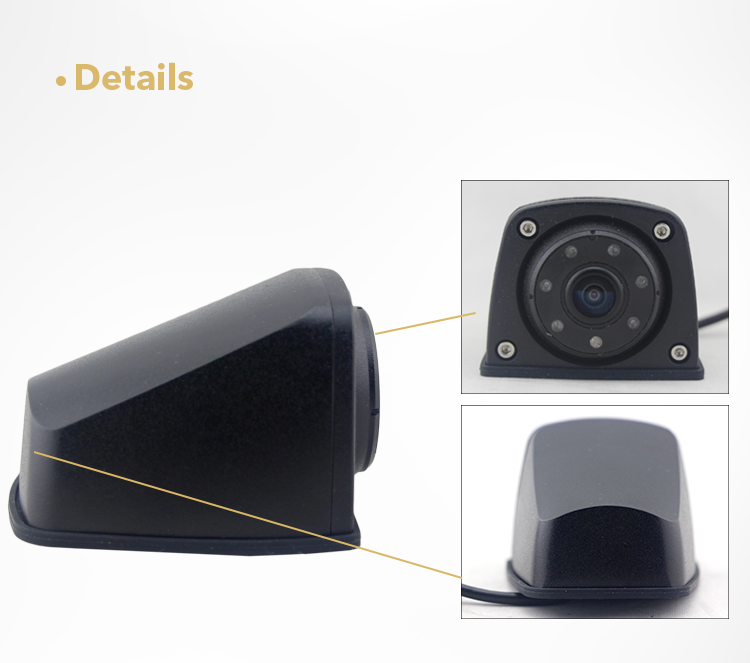

AC-219F 170 Degree wide angle Rear View Camera

  • Wide Angle: 170 Degree
  • IR: 7PCS LED
  • Waterproof : IP68
  • Power DC12/24V
  • Product description: 170 Degree wide angle Rear View Camera
  • INQUIRY

Main Feature:

Image sensor: Pixeplus PO3100K CMOS 1/3

DSP chip: AVS7110 image correction chip

Rsolution: 480TVL

Illuminace: 0.1Lux, infared night vision

View angle: 1.58mm waterproof lens, 170 Degree

Image: Mirror as default (Could set mirror&non-mirror switchable)

System: PAL System as default(Could set PAL&NTSC switchable)

Reference line: Off as default(Could be opened by software)

Display mode:

170 Degree wide single image display as default

(Could set overlook, Haorizontal, Two images, Vertical two images, three images display and 170 degree wide single image display switchable)

Appearance and applicantion: Aluminium alloy matrial, out-hanging design, suit for bus, truck and small vehicles

Waterproof Level: IP68

Connector: 4pin or RCA

Power supply 12-24V

Power consumption: About 1.8W

Maximum current: 150MA

Key control: Support single key adjustment

Output: 1 Channel CVBS output
