Dual Spectrum IR Thermal Imaging Camera with AI
AOTOP dual spectrum IR thermal imaging camera adopts dual lens design, infrared light thermal image & visible light camera 2 in 1, realising a variety of modes such as dual light overlay and split screen display. Whether it is unsafe road conditions such as sandy and foggy days, or low light or glare interference at night, it can easily cope with it. Built-in AI human & vehicle detection algorithm is able to intelligently identify pedestrians and vehicle, greatly improving driving safety.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

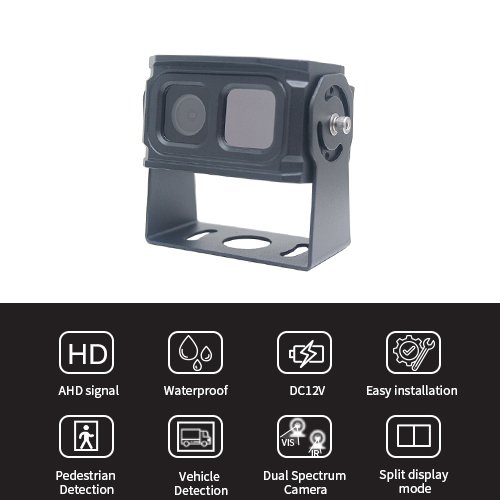

Features
- Dual Spectrum: Infrared + Visible

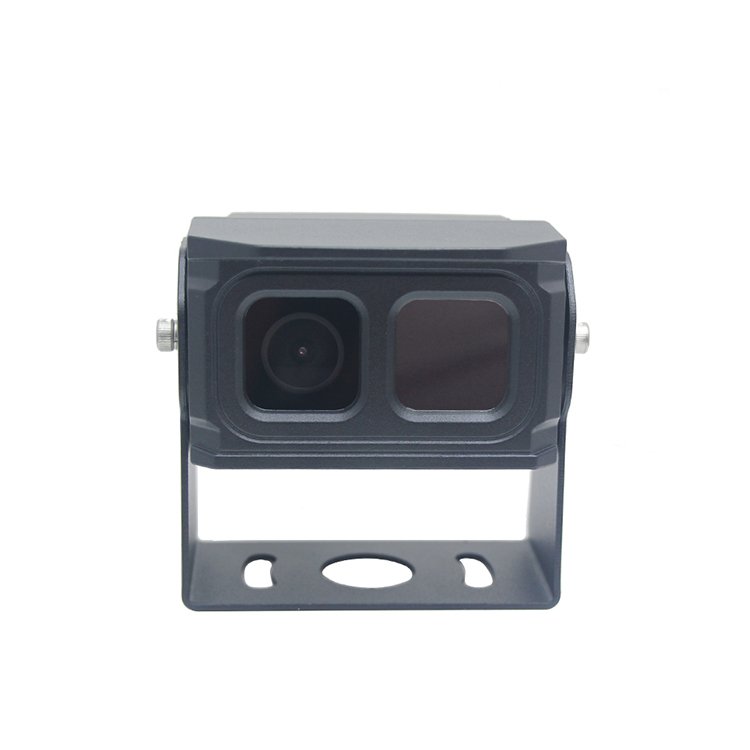

- Dual Lens Design: 1 Infrared Thermal Imaging Lens
& 1 Visible 1080P HD Lens - 2CH Video Image Output
- Multiple Display Modes Single View / Two Divisions
/ Picture-in-Picture and Other Display Mode - AI Vehicle and Human (Pedestrian & Cyclist) Detection
- IP69K Waterproof Dustproof

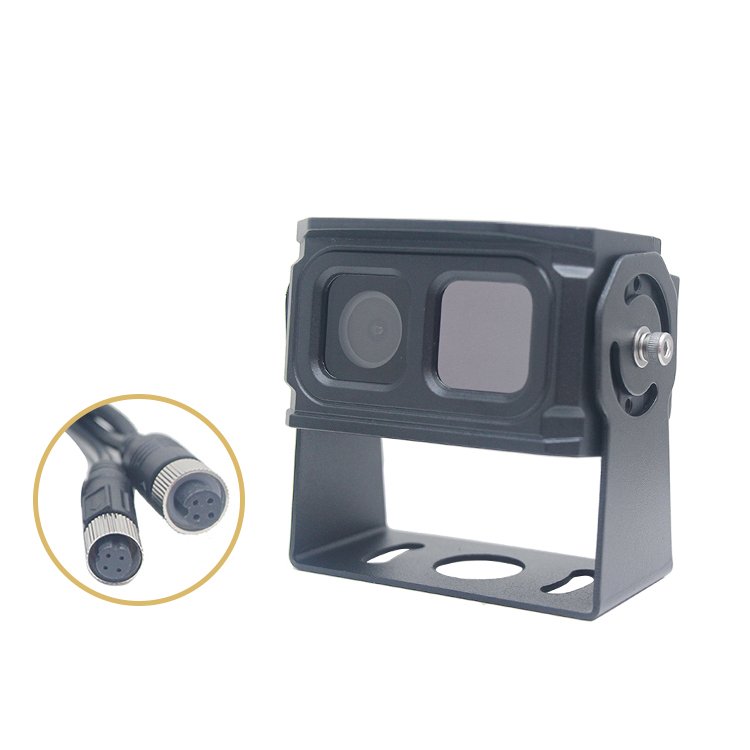

- Dual Waterproof 4PIN Aviation Connector
| Model | AC-687 | |
| Materials of Housing | High Density Aluminum Alloy | |
| Weight | 300g(N.W) / 350g(G.W.) | |
| Working Voltage | DC12V±10％ | |
| Working Current | ≤300mA@12V | |
| Power Consumption | ≤3.5W@12V | |
| Connectors | 4Pin Waterproof Aviation Connector | |
| Cable Length | L=0.5M | |
| SOC-AI Chip | SA220 | |
| SOC-AI ISA | RISC-V | |
| Thermal Infrared Camera | Image Sensor | High Performance Vanadium Oxide Uncooled Infrared Detector |
| Imaging Mode |
White Thermals Imaging (Multiple Color Palette Options to Choose From Depending on Communication Commands) |
|
| Pixel Pitch | @12μm WLP | |
| Spectral Band | 8 ～14μm | |
| Lens | 4.3mm / 7.0mm, Prime Focus: 5M-infinity | |
| Viewing Angle | Horizontal 39° * Vertical 30° / Horizontal 29° * Vertical 20° | |
| Detection Range |
200m / 300m (According to the Actual Vehicle Installation Height and Angle) |
|
| AI Recognition Range |
100m / 150m (According to the Actual Vehicle Installation Height and Angle) |
|
| Visible Light Camera Module | Image Sensor Brand | Galaxy Core |
| Chipset | GC2053 | |
| Viewing Angle | Horizontal 110° * Diagonal 130° * Vertical 70° | |
| Video Output Mode | Infrared Thermal Imaging and Visible Light Imaging | |
| Video Output Format | AHD | |
| Resolution / Frame Rate | 720P@25FPS / 1080P@25FPS | |
| Connector Waterproof Rating | IP68 | |
| Camera Waterproof Rating | IP69K | |
| Storage Temperature | -30℃～+85℃ | |
| Operating Temperature | -30℃～+70℃ | |
| Operating Humidity | 20%~80% | |
| Warranty | 2 Years | |
Why Choose AOTOP Dual Spectrum IR Thermal Imaging Camera?
In rainy days, foggy days, at night or in the case of strong light glare, visibility is low and the driver cannot normal identify oncoming pedestrians and vehicles with the naked eye, which may lead to safety accidents. Engineering equipment usually operates in an open-air environment, and conditions such as flying dust or extreme rainstorms often occur. In order to improve the mining progress, the operation time usually lasts until late at night. When dealing with these situations, it is no longer possible to predict safety risks in advance using traditional driving methods.

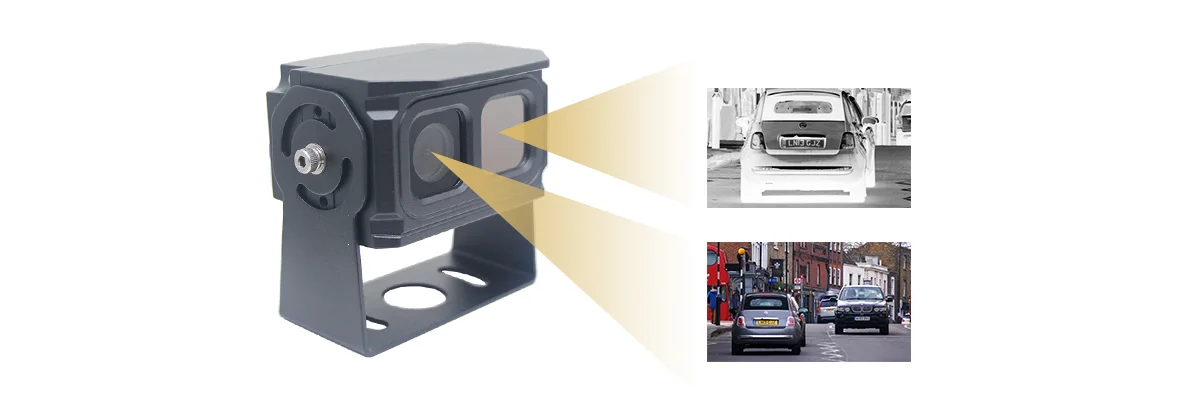

Dual Spectrum Integrated: Infrared + Visible
Dual lens design, integrating infrared light and visible light camera in one, customers can get both infrared thermal imaging and HD visible light images at the same time, which is more cost-effective. Infrared thermal imaging in dusty, foggy, night and other unclear vision of the road conditions, according to the temperature difference to provide a clear far-away white thermal into the image, while the visible light lens to provide a close-up view of the 1080P HD image, the two lenses screen complementary to provide a more comprehensive field of view, so that the all-weather road monitoring is more accurate and reliable.

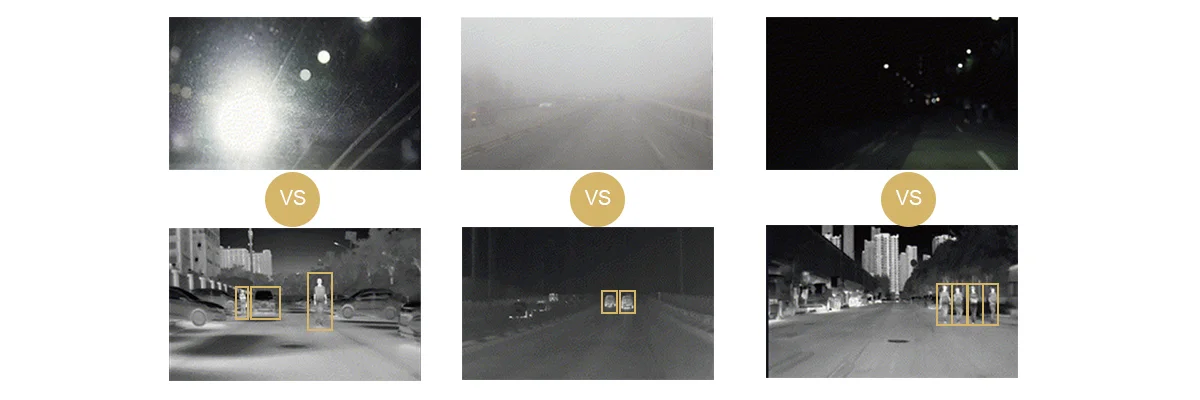

Anti-Glare and Penetrating Smog, Superior Penetrating Power
The thermal infrared has superb penetration capabilities to overcome nighttime obstacles, effectively preventing glare from high beams while penetrating fog, smoke and haze. The built-in artificial intelligence algorithm accurately identifies and distinguishes between pedestrians and vehicles, and provides audible warnings to improve driving safety.

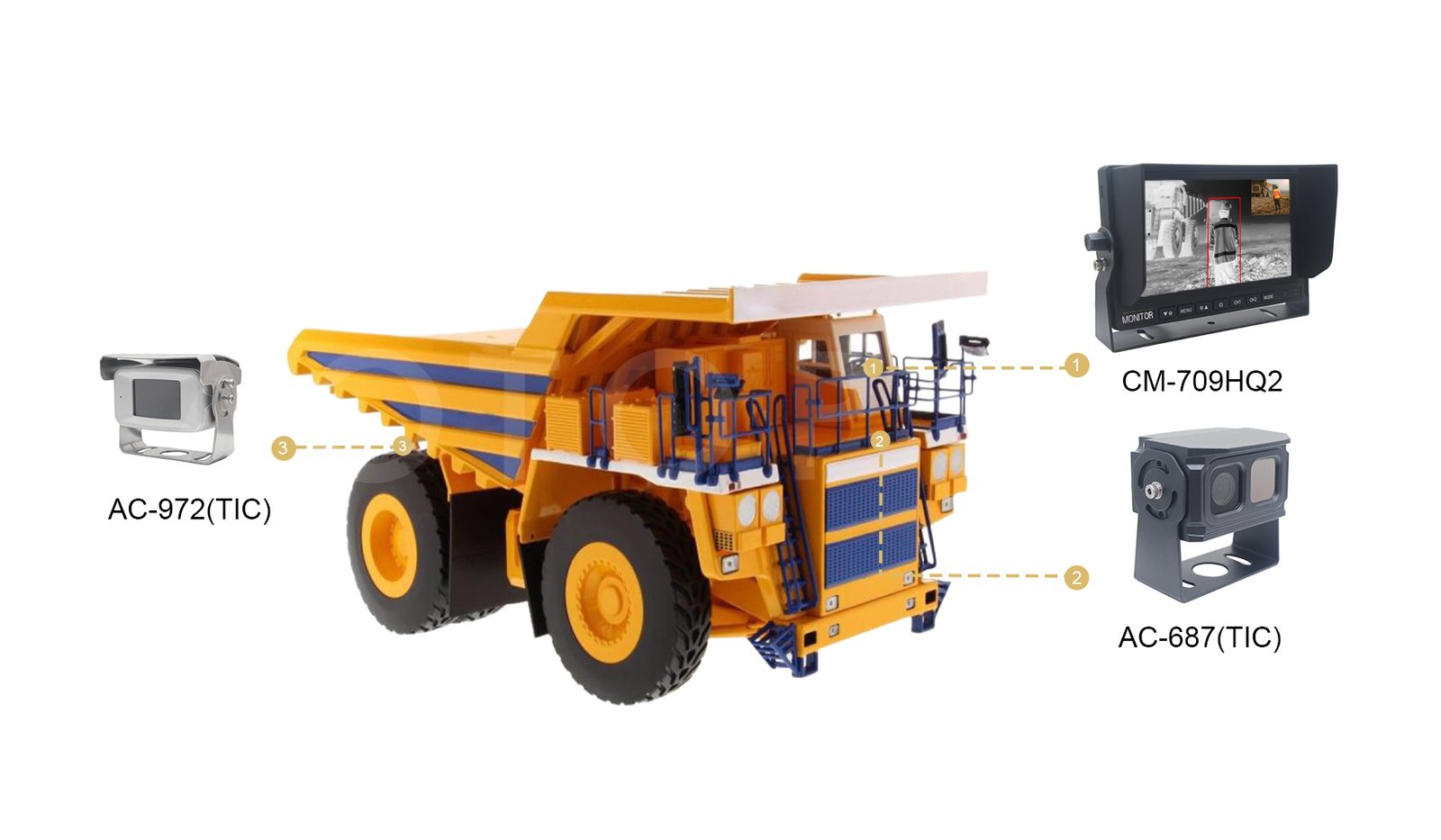

Product Applications
AOTOP dual spectrum IR thermal imaging camera with AI featuring fast recognition speed, high accuracy, good stability, easy to install. It is ideal for use in challenging environments such as tunnels, mining sites and low-visibility driving conditions including rain, fog and nighttime highways. It effectively addresses the visibility challenges that traditional optical vision systems struggle to overcome.
