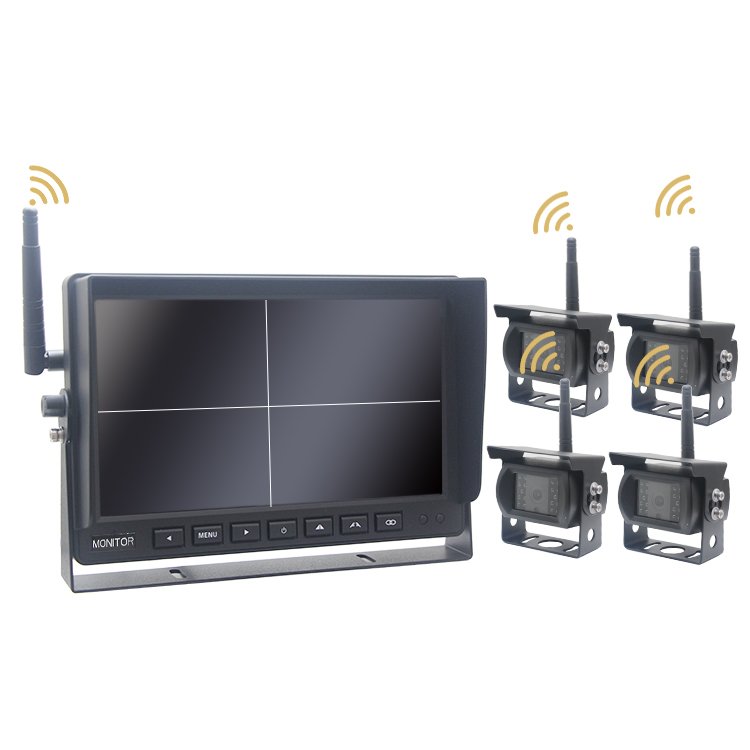

10.1 Inch 1080P Vehicle Wireless Monitoring System
AOTOP 10.1 inch HD vehicle wireless monitoring system is easy to install without wiring, including 10.1 inch wireless quad view HD monitor & 4CH 1080P IP69K wireless vehicle cameras. This wireless system is good for heavy duty vehicle such as trucks, trailers, RVs, buses, etc. The monitor supports AUTO pairing with 4 cameras achieve full coverage monitoring of the surrounding areas cover the vehicle’s blind spots. It is the an ideal solution to improve driver safety, making driving safer and more reliable.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

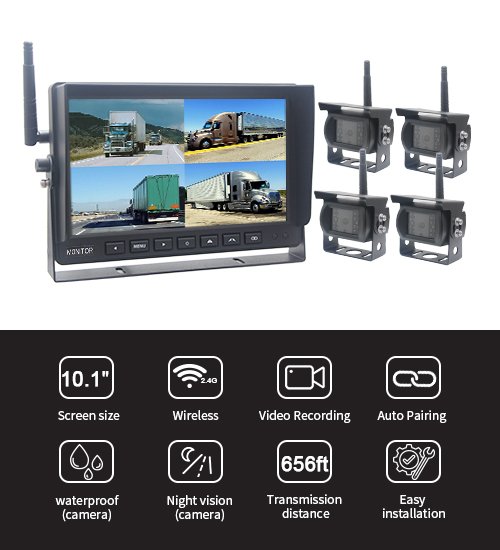

Features
- 10.1 Inch Super Wide IPS LCD Screen, 1024*RGB*600 HD Resolution.

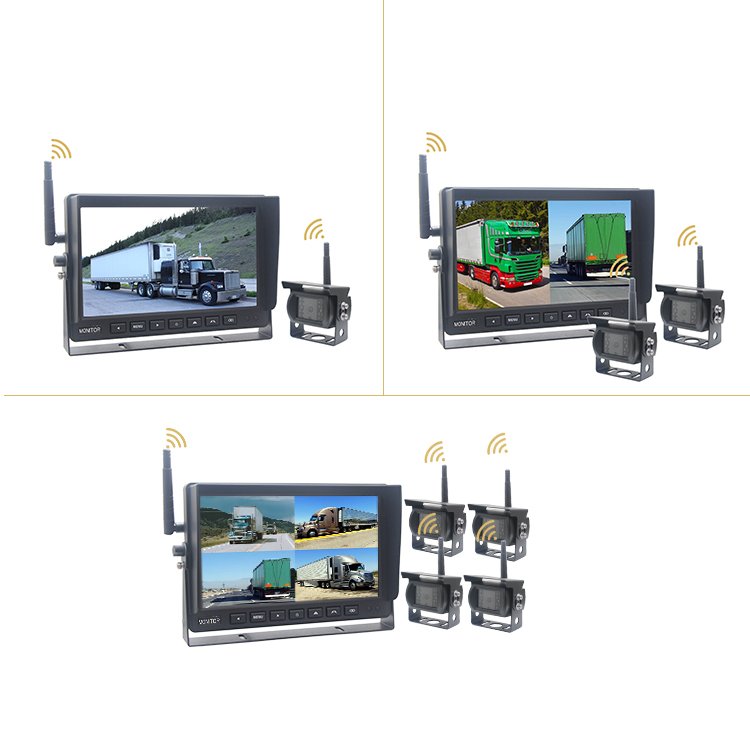

- Support 4CH Video Signals Input, A Variety of Monitors Modes Quad view, Double View, Triple View and Single View to Meet Various Monitoring Needs and Reduce Blind Spots.
- Support 1080P / 720P Camera Wireless Video Signal Inputs.
- 2.4Ghz Wireless Signal Transmission 200M (656ft) Wireless Transmission Distance, without Wiring Easy to Install, Save Money and Time.
- Built-in 128GB Memory Card, Support 4CH Real-Time Recording and Video Playback.
- Rear View Parking Lines Can be Configured.
- Wireless Camera Features IP69K Waterproof, HD Night Vision, 120° Wide Angle etc.
- Support Manual and AUTO Pairing, Easy to Operation. After the First Pairing is Completed, Just Connect the Car Power Supply to Work.
- DC 12-24V Wide Voltage, Applicable to A Variety Large & Commercial Vehicles.
| WIRELESS VEHICLE MONITOR | |

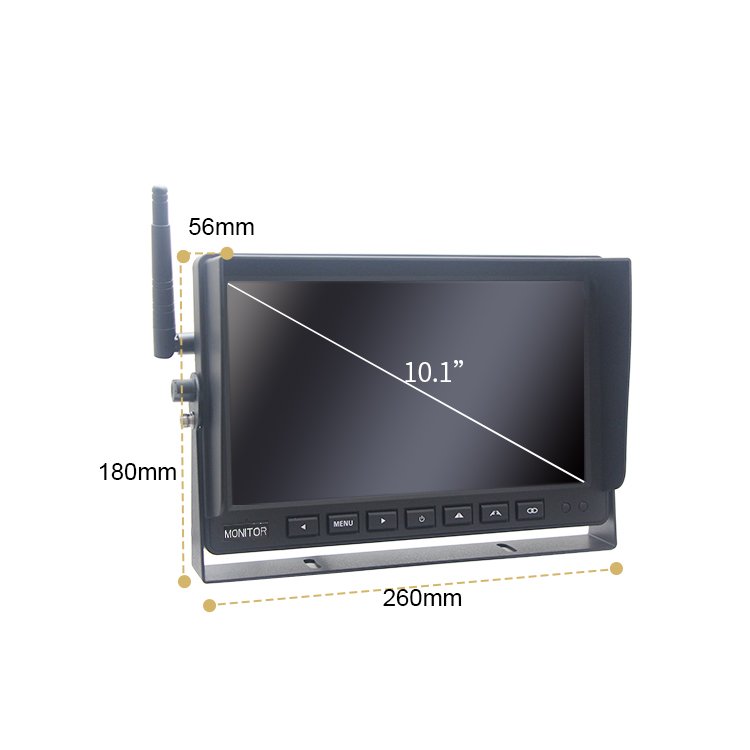

| Screen | 10.1 Inch 16:9 Digital Panel |
| Monitor Resolution | 1024*R.G.B*600 |
| Wireless Video Input | 1~4CH Wireless Video Input and Recording |
| Wireless Reception Distance | 200M (656ft) in Open Area |
| Power Supply | DC 12-24V |
| Power Consumption | 3W |
| Speaker | Built-in |
| Memory Card | 128GB |
| Recording Video Resolution | 1024*600 |
| Recording Document Size | About 3.3MB Per Minute |
| Recording Video Format | H.264 |
| Trigger | 4CH |
| Working Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~85℃ |
| Accessories |
Power Cord, U-Shaped Bracket, User Manual, 2.4G 5DB Antenna, 3M Extension Antenna |

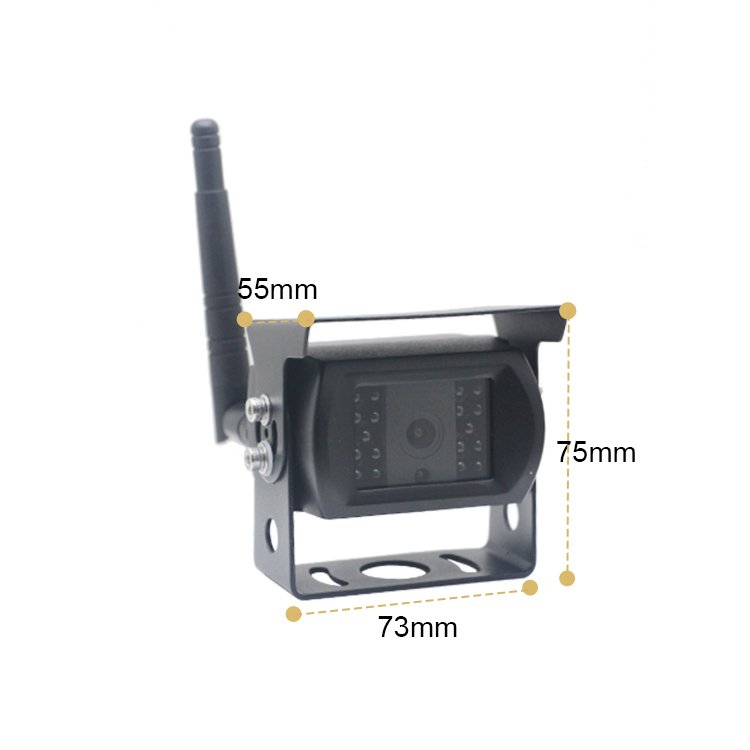

| WIRELESS VEHICLE CAMERA | |
| Image Sensor | CMOS 1/2.7” |
| Pixel | 1080P, 1920*1080 |
| Operating Frequency Range | 2400-2483.5MHZ |
| Wireless Transmission Distance | 200M (656ft) in Open Area |
| System | PAL / NTSC Automatically |
| Spread Spectrum Mode | FHSS (Adaptive Frequency Hopping) |
| Transmission Bandwidth | 8MHz BER<1E-3 |
| Working Temperature | -20°C~+70ºC / 85%RH MAX |
| Storage Temperature | -30°C~+85ºC / 95%RH MAX |
| Audio | with |
| SNR | 46.5dB |
| Waterproof | IP69K |
| Viewing Angle | Diagonal Viewing Angle 120° |
| Transmitting Sensitivity | -89 dBm |
| Shell Material | Aluminium Alloy |
| Warranty | 2 Years |
Product Applications

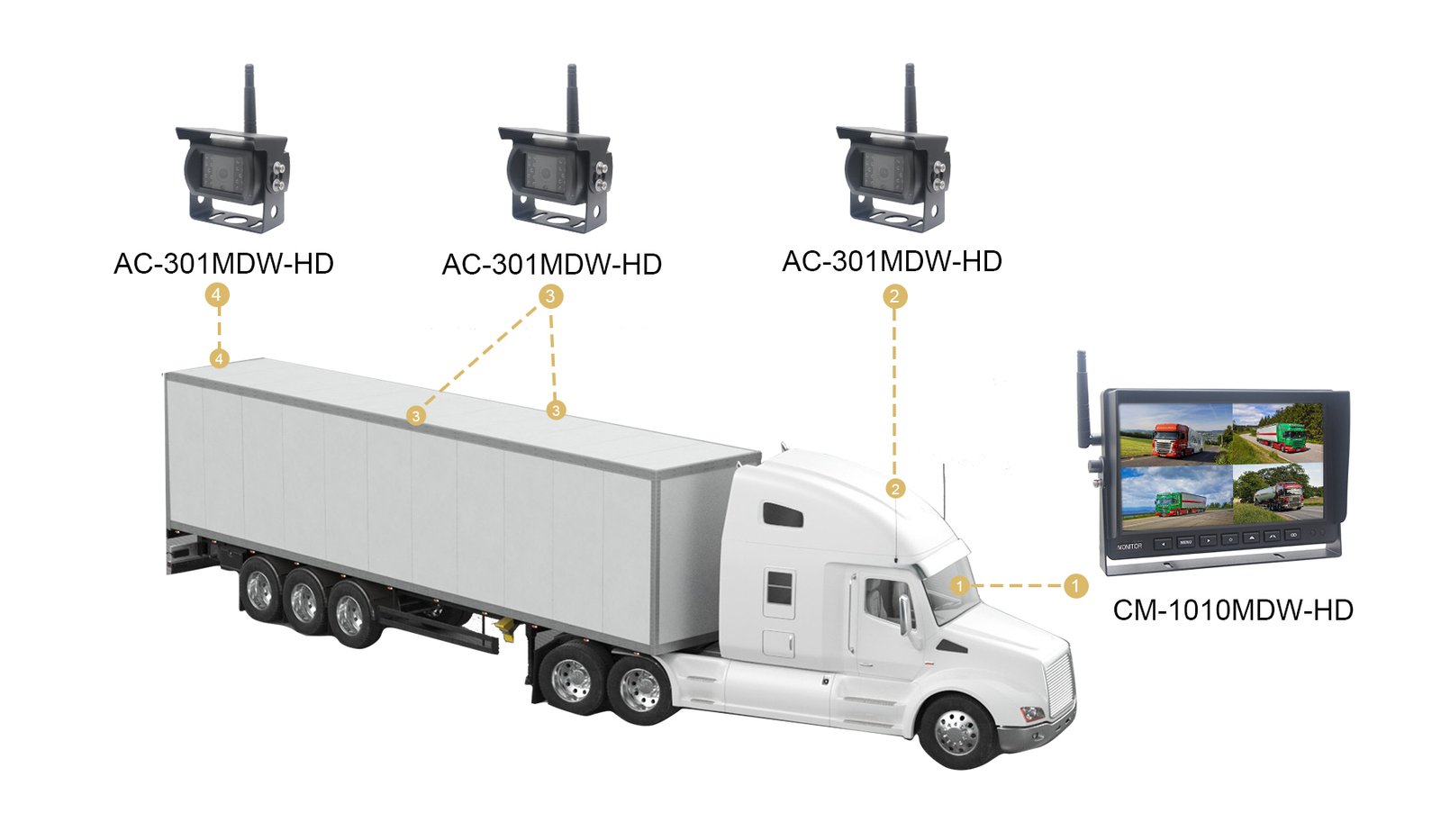

AOTOP 10.1 inch 1080P vehicle wireless monitoring system requires no wiring. Through simple installation, it can be applied to a variety of vehicles such as trucks, trails, RVs, buses, excavators, cranes, etc.
