10.1 Inch Quad View Digital Vehicle Monitor
AOTOP 10.1 inch quad view digital vehicle monitor supports 4CH vehicle cameras input, allowing drivers to monitor the driving conditions around their vehicle in all-round while driving, reducing the possibility collisions and other traffic accident. The monitor feature large viewing angle, high resolution LCD digital high brightness display with clear image supports multiple language settings, bringing a clear, visual in-vehicle monitoring experience to customers around the world!
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

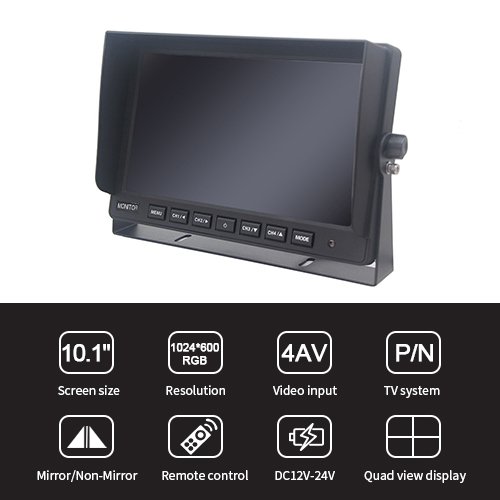

Features
- 1024*RGB*600 Resolution (IPS LCD Digital Screen)
- 4CH x CVBS Cameras Video Signal Input
- 4 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- Full Display & 2/3/4 Split View Mode
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO Adaptation PAL / NTSC System
| Model | CM-1010MQ |
| Screen Ratio | 16:9 |
| Back Light Luminance | LED, 500cd/㎡ |
| Resolution | 1024*RGB*600 |
| Compatible System | PAL & NTSC (Automatically) |
| OSD Control |
Color, Brightness, Contrast Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch) |
| View Angle |
Hor. L(60°) R(60°) Ver. Up(40°) Down(60°) |
| Image Reversion | UP / Down |
| Power Requirement | 12V DC (12-24V DC Optional) |
| Power Consumption | 9W |
| Storage Temperature | -30℃〜+80℃ |
| Working Temperature | -20℃〜+70℃ |
| Key Color | PC Lucency Black |
| AV Inputs |
4 Way Video Signal Input 1 Way Audio Signal Input |
| Number of Trigger and Display | 4 Trigger |
| Other Features |
Built-in TF/USB Slot, Built-in Speaker, Remoter Control, OSD Menu |

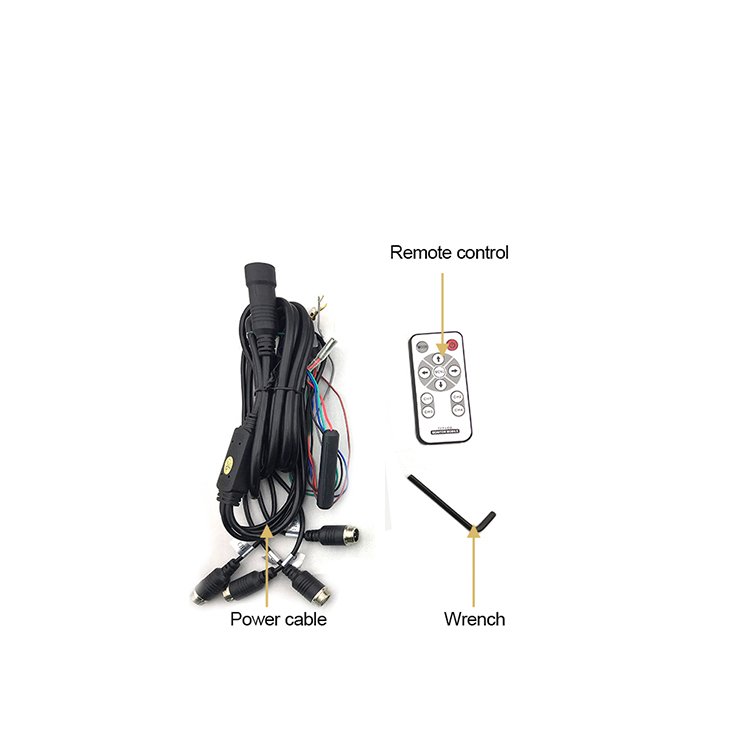

| Accessories |
Remote Control, Power Supply Cable, User Manual, Bracket, Sunshade, Wrench |
| Warranty | 2 Years |
| Certification | E-Mark, UKCA, E24, CE, FCC |

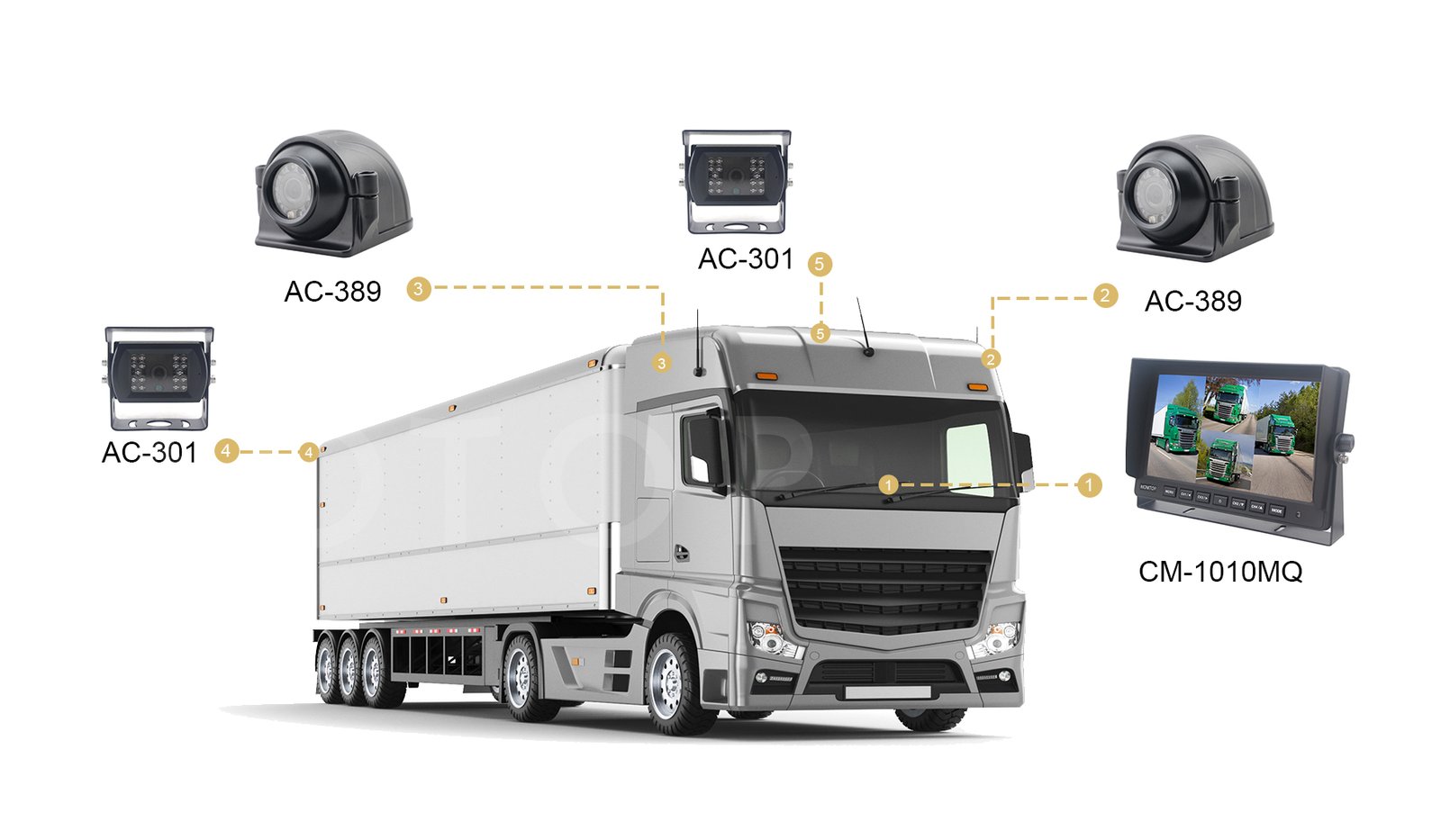

Product Applications
AOTOP 10.1 inch quad view digital vehicle monitor can be easily applied to various commercial vehicles and work well with our vehicle cameras. It helps drivers to see the surroundings of the vehicle in real-time, eliminating blind spots around the vehicle and reducing the risks of scratches and other accidents.
