Home » Rearview Mirror Camera System » 10.88 Inch HD Rearview Mirror Cameras System with ADAS BSD
10.88 Inch HD Rearview Mirror Cameras System with ADAS BSD

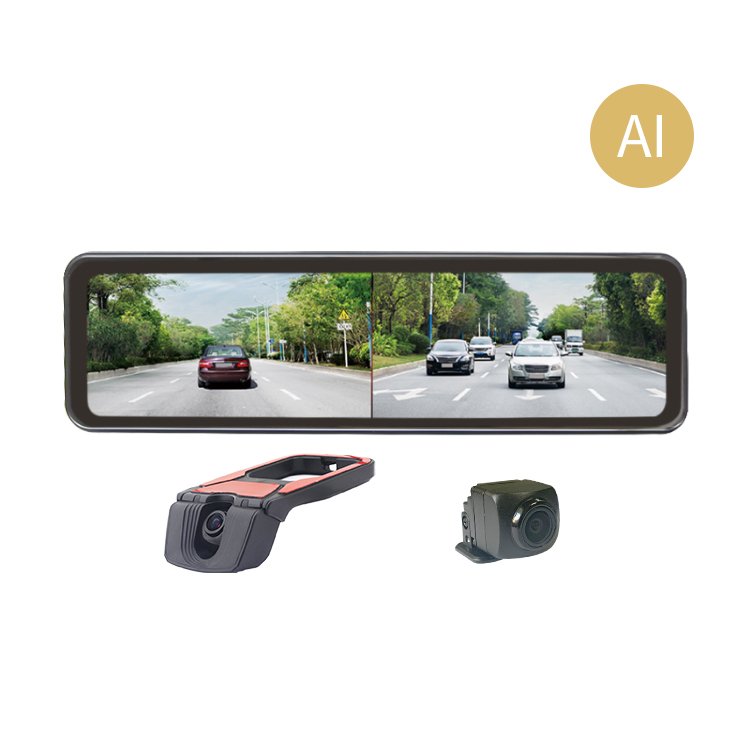

AOTOP 10.88 inch HD rearview mirror cameras system feature front view ADAS & back BSD functions, 10.88 inch IPS LCD screen full screen touch, providing driver with an intelligent safe driving experience. Supports dual front & rear camera 2CH image HD DVR driving recording, dual split view display, high definition night vision image etc. When turned off the mirror, it can be used as an regular mirror!
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

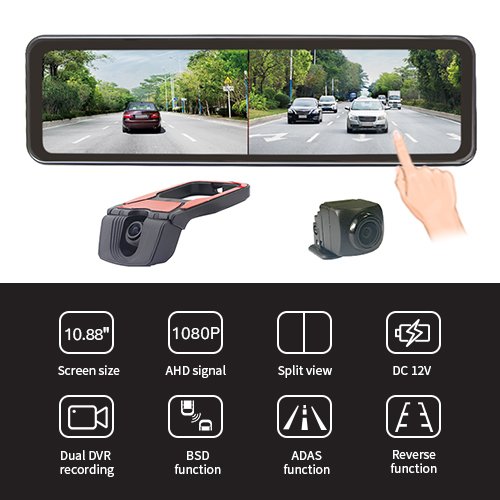

Features
- Front ADAS Advanced Driver Assistance System;
- Rear Side Blind Spot Reminder BSD Blind Spot Pedestrian & Vehicle Detection;
- Front and Back Dual WDR HD Recording, Dual Split View;
- Built-in G-Sensor Automatically Lock the File When in Accident Like Car Crash and Emergency Braking;
- Support HD Color Night Vision, Automatic Exposure, Eliminate Flicker, Low Image Noise, WDR, No Image Distortion;
- Support Responsive Reversing Display Automatically;

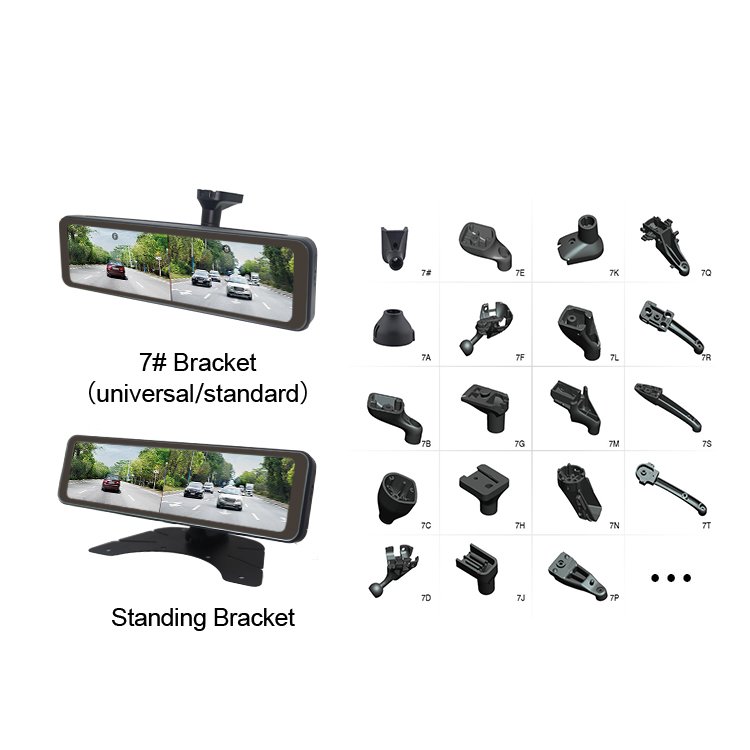

- More Than 100+ Mirror Mounting Brackets, Suitable for Most Car Models;
| Model | T99 |
| Certification | CE, UKCA, E-Mark, RoHS |
| RAM | 512M*2 |
| System | EOS |
| G-Sensor | 3-Axis Gravity Sensing |
| MCU |
Power Management, Communication & Control with Master Serial Port |
| Display |
10.88 Inch IPS HD LCD Screen, 1920*480 Resolution, Screen Viewing Angle Vertical Up and Down and Horizontal Left and Right are More than 170 ° |
| Screen Brightness | ≥1000nits |
| Touch Screen | Full Mirror Capacitive Touch Screen |
| Operating Voltage | Support 9~36V Range, Power Box Power Supply |
| Maximum Working Current | ≤1.0A |
| Standby Current | ≤5mA |
| Maximum Operating Power Consumption | ≤10W |
| Camera Video Output Format | TVI |
| Camera Lens | Full Glass Lens |
| Front Camera | 1920*1080, 27.5fps, Support HDR |
| Rear Camera | 1920*1080, 60fps, Support HDR |
| Video Format | 1080P, TS |
| Picture Format | JPEG |
| Positioning | Built-in GPS Positioning Module |
| Speaker | 1 * Speaker, 4Ω 2W |
| Microphone | 1 * Electret Microphone |
| Pushbuttons | 1 * Key, Power Button |
| TF Card Holder |
Support Micro SD Card, Maximum Support 256GB, Support U1/C10 Card Speed |
| Mirror Case Material | PC+ABS, Plastic Injection Moulding, Flame Retardant UL94 |
| Mirror Body Adjustment Torque | 1.2~1.7(N•m), Single Ball Head, Manual Adjustment |
| Ball / Bracket Material | Alloy Material One-Piece Die-Casting Moulding |
| Mirror Surface |
Plane Mirror, Mirror Radius of Curvature ∞, Mirror Reflectivity 41%~45 |
| Circuit Protection |
Over-Voltage and Over-Current Protection, Reverse Voltage Protection |
| Operating Temperature | -30℃~+70℃ |
| Storage Temperature | -40℃~+85℃ |
| Storage Humidity | 0%~90% |

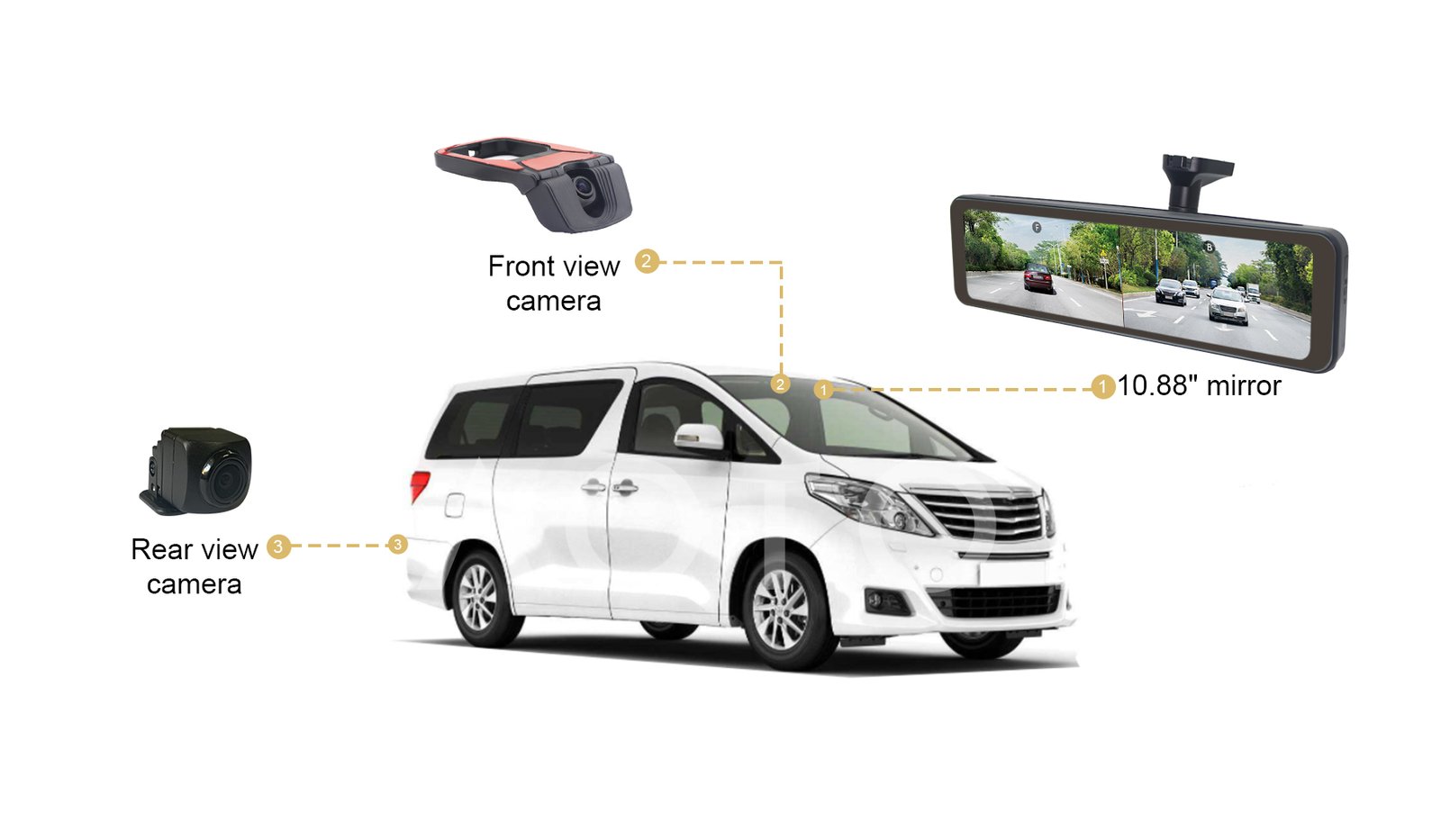

Product Applications
AOTOP 10.88 inch HD rearview mirror cameras system with ADAS BSD have more than 100+ mounting brackets for mounting on different year brands of cars.
