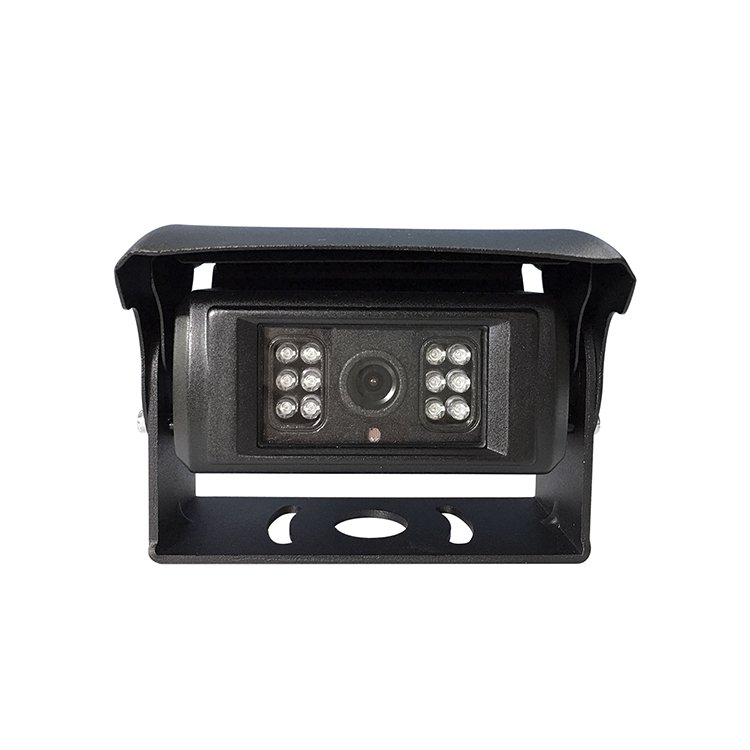

1080P HD Reverse Camera with Auto Shutter
AOTOP offers the best auto shutter reverse camera features 1080P high definition resolution, IP69K waterproof, night vision, wide angle view etc. Visualization of blind spots, assisted safety reversing. Support OEM & ODM Customization！
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

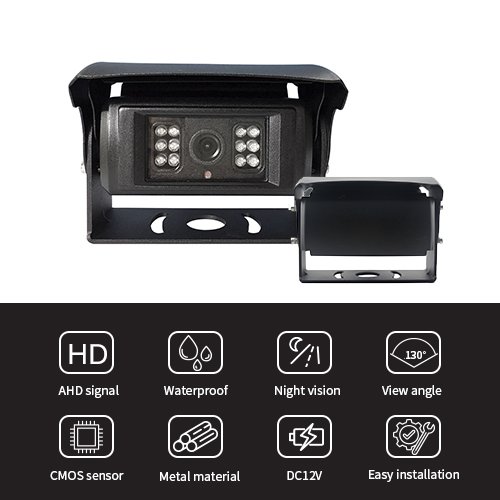

Features
- 720P 1080P AHD Resolution Optional
- CMOS Image Sensor
- With Auto Shutter for Better Protection of Lens, Suit to Use in Bad Environment Such As Sandy or Heavily Snowy Weather
- IP69K Waterproof Level
- 130° Wide Angle
- 12pcs IR LED Lights (with Light Sensor, AUTO Night Vision)
- Infrared Distance 8-10M
- Optional PAL & NTSC TV System
- Aviation 4PIN Female Connector
| Model | AC-661 |
| Image Sensor | CMOS |
| Effective Pixels |
1920(H) * 720(V) 1920(H) * 1080(V) |
| Resolution | 720P / 1080P |
| Night Vision |
HD Night Vision 12pcs 0.1Lux IR LED Night Light |
| Night Vision Distance | 8-10M |
| Angle View | 130° |
| Waterproof Level | IP69K |
| Shockproof Level | 4G |
| Housing Material | Aluminium Alloy |
| Connection Plug (Connector) | Locking Aviation 4PIN Female |
| TV System | PAL / NTSC (Default "PAL") |
| Mirror & Normal Image | Optional (Default "Mirror") |
| Microphone | Available |
| Heating Function | Optional |
| Power Supply | 12V |
| Maximum Current | <250mA |
| Power Consumption | <3W |
| Operating Temperature | -20°C~+70°C (RH0%-RH90%) |
| Storage Temperature | -30°C~+80°C (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | CE, UKCA, E-Mark, RoHS, IP69K |
Product Applications

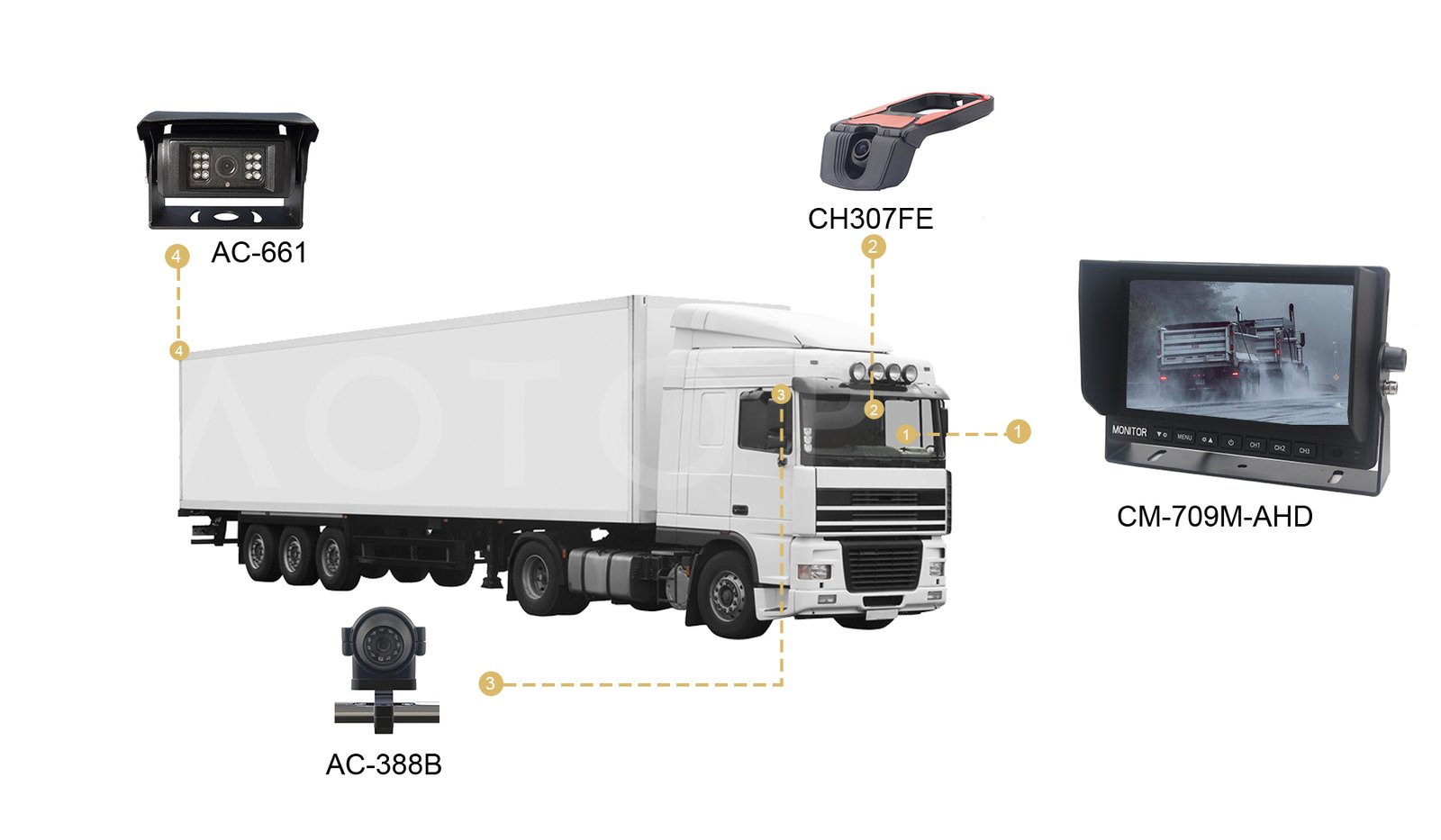

AOTOP 1080P HD reverse camera with auto shutter can be easily applied to various commercial vehicles and work well with our rear view monitor (safety vision system).
