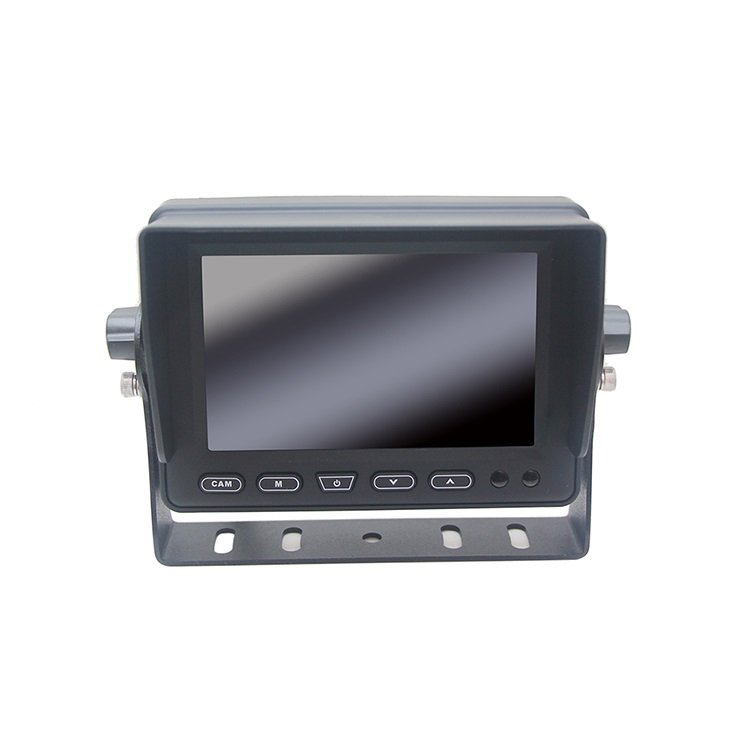

5 Inch HD Quad View Digital Color Car Monitor
AOTOP 5 inch HD quad view digital color car monitor supports 4CH HD camera video signal input. Allowing drivers to see the surroundings of the vehicle in real-time, eliminating blind spots around the vehicle and reducing the risks of scratches and other accidents. This AHD monitor meets customers’ need for high quality in-vehicle monitoring and easy operation.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

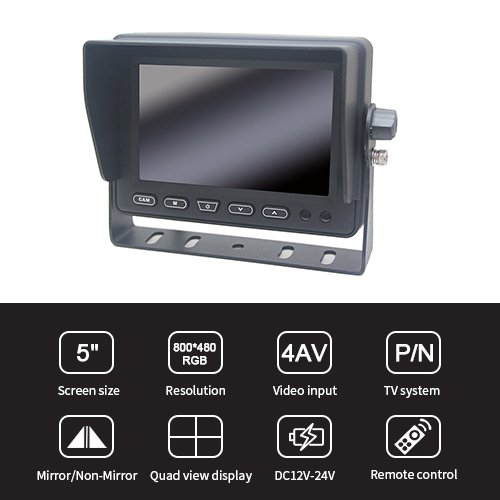

Features
- 800*RGB*480 Resolution (IPS LCD Digital Screen)
- 4CH x AHD Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 4 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (High Quality Speaker)

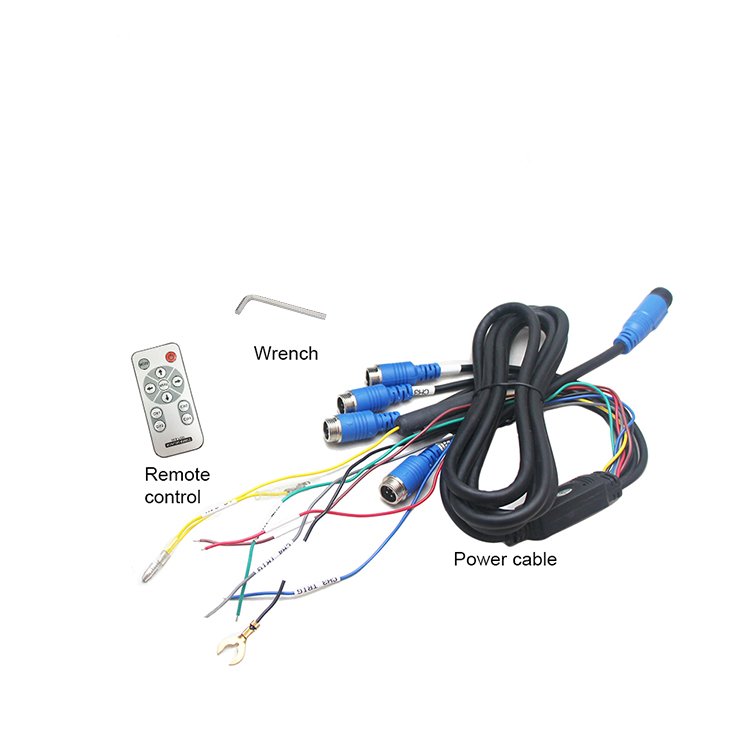

- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching; Image Flip;
- DC 12-24V Wide Voltage
- AUTO Adaptation PAL / NTSC System
| Model | CM-500HQ |

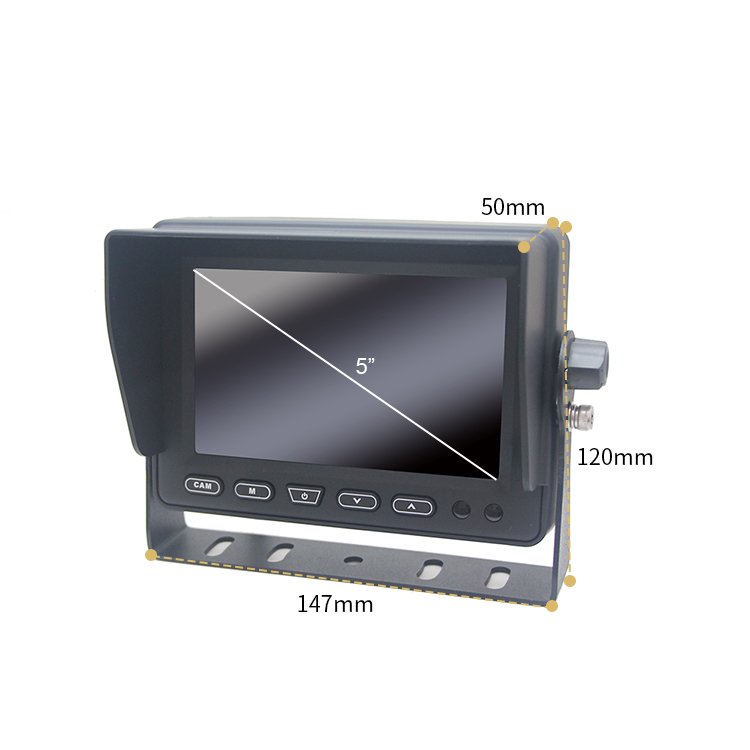

| Screen Type & Size | 5 Inch IPS LCD Screen |
| Aspect Ratio | 16:9 |
| Resolution | 800*R.G.B*480 |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up 85°, Down 85°, Left / Right 85° |
| Video Input |
Support 4CH AHD 1080P/720P/960P/CVBS Mixed Video Signal Input |

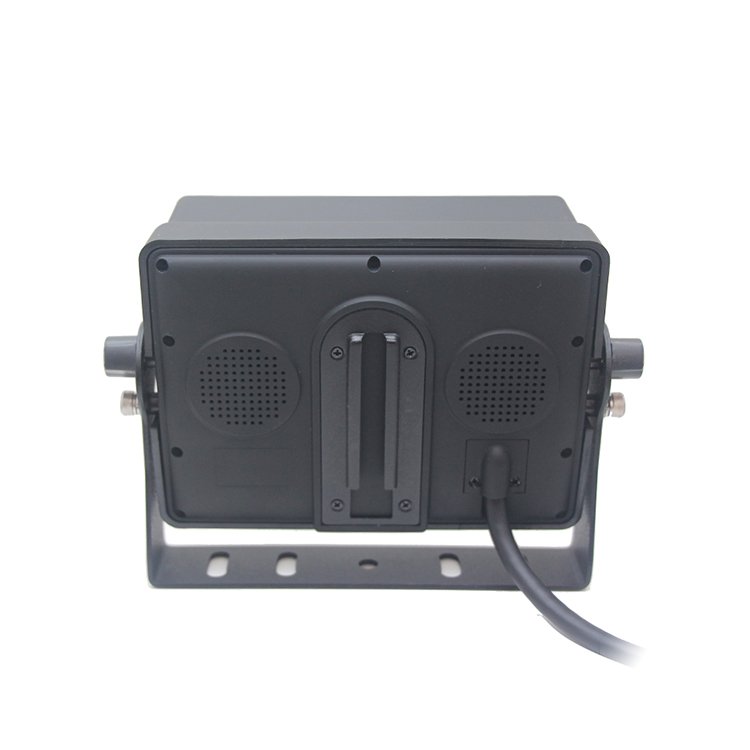

| Audio Input | 1CH, Available High Quality Speaker |
| OSD Menu |
Image Setting, Image Signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting |
| Parking Guide Line |
Each Channel is Controlled Separately (Off As Default) |
| Mirror / Normal Image |
Each Channel is Controlled Separately (Mirror As Default) |
| Split View Mode | Single / Double / Triple / Quad View Image Display |
| Trigger | 4CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/<1A |
| Operating Power | <10W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Operating Temperature | -20°C~+70°C (RH0%-RH90%) |
| Storage Temperature | -30°C~+80°C (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | E-Mark, UKCA, E24, CE, FCC |

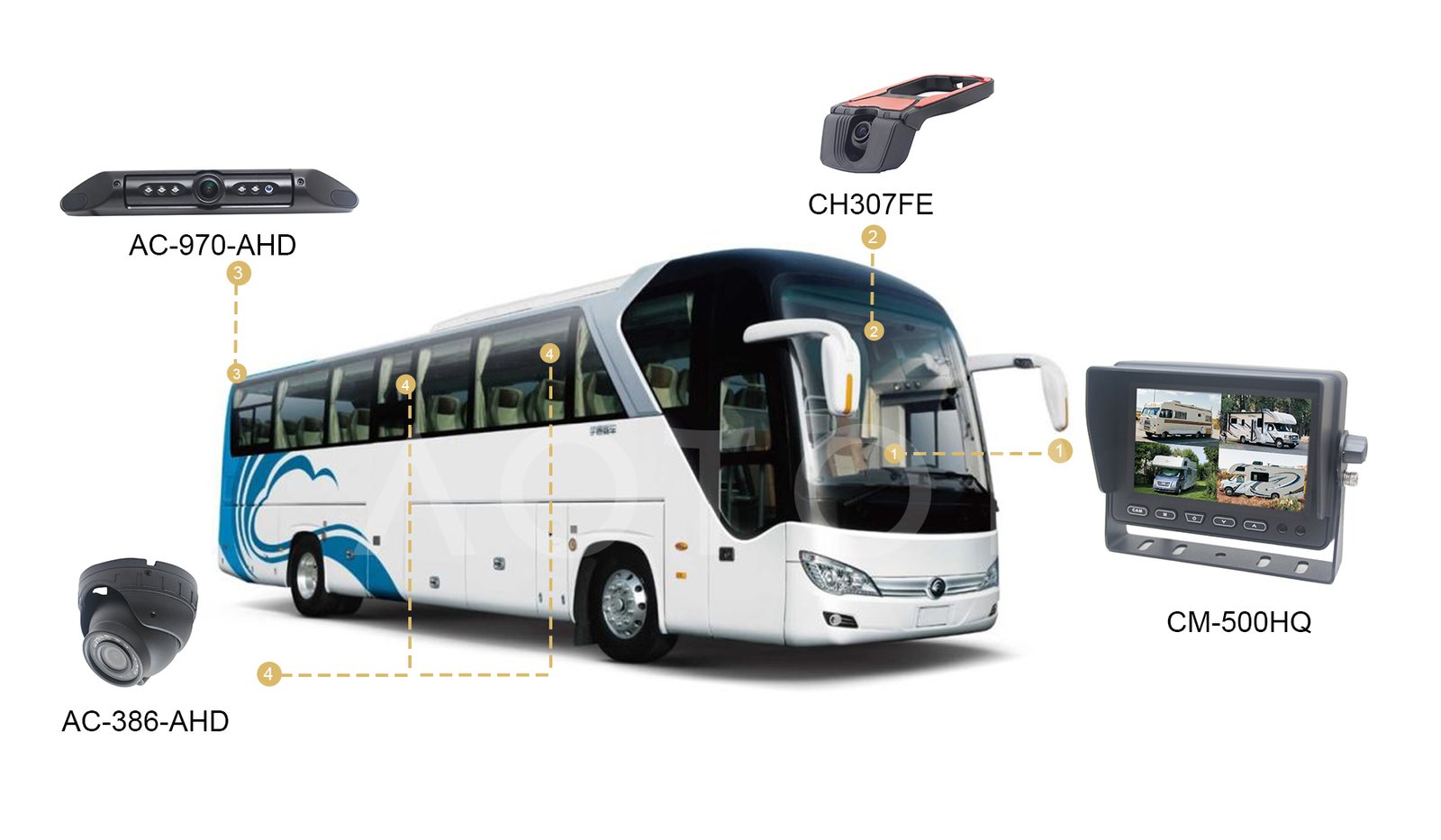

Product Applications
AOTOP 5 inch HD quad view digital color car monitor can be easily applied to various commercial vehicles and work well with our vehicle HD cameras. It helps drivers to see the surroundings of the vehicle in real-time, eliminating blind spots around the vehicle and reducing the risks of scratches and other accidents.
