7 Inch 1080P Digital Vehicle Wireless Backup Camera System

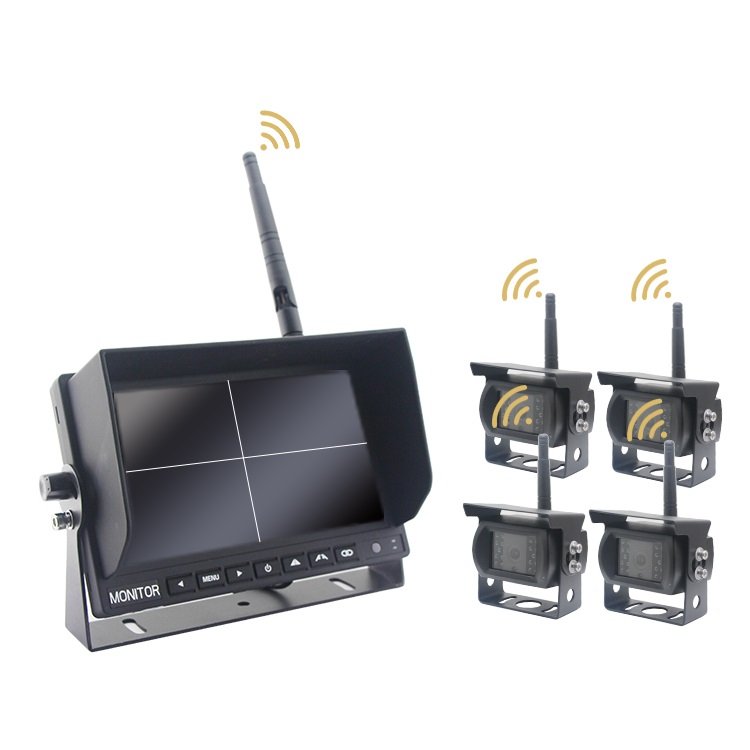

AOTOP 7 inch 1080P digital vehicle wireless backup camera system are includes HD vehicle quad view monitor and 4CH I080P waterproof wide angle vehicle cameras to provide with vehicle full field of view coverage. This wireless system is easy to install require without wiring and is good for commercial vehicles such as truck, harvesters and trailers, ensuring that you have clear view of your vehicle’s surroundings in all situations.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.
Features

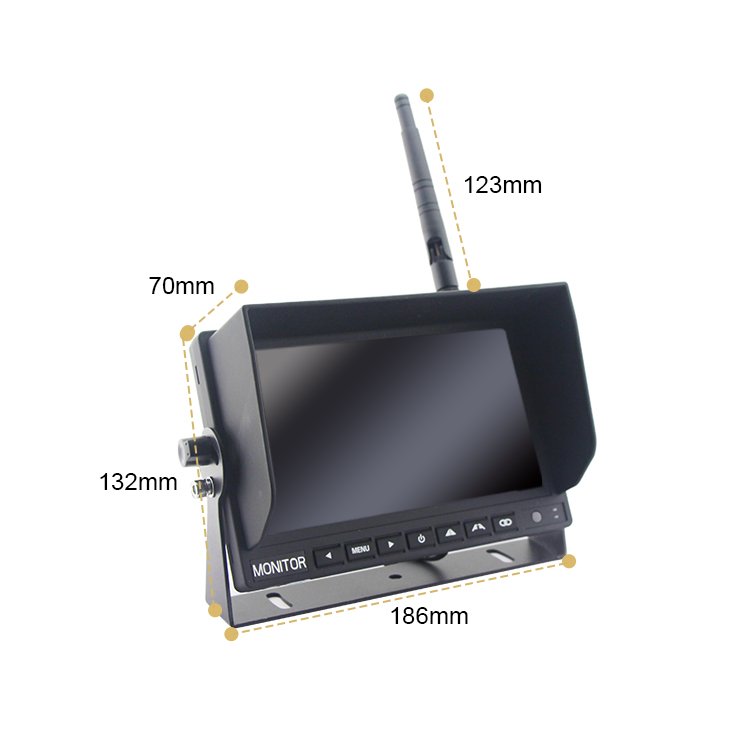

- 7 Inch IPS LCD Screen, 1024*RGB*600 HD Resolution.

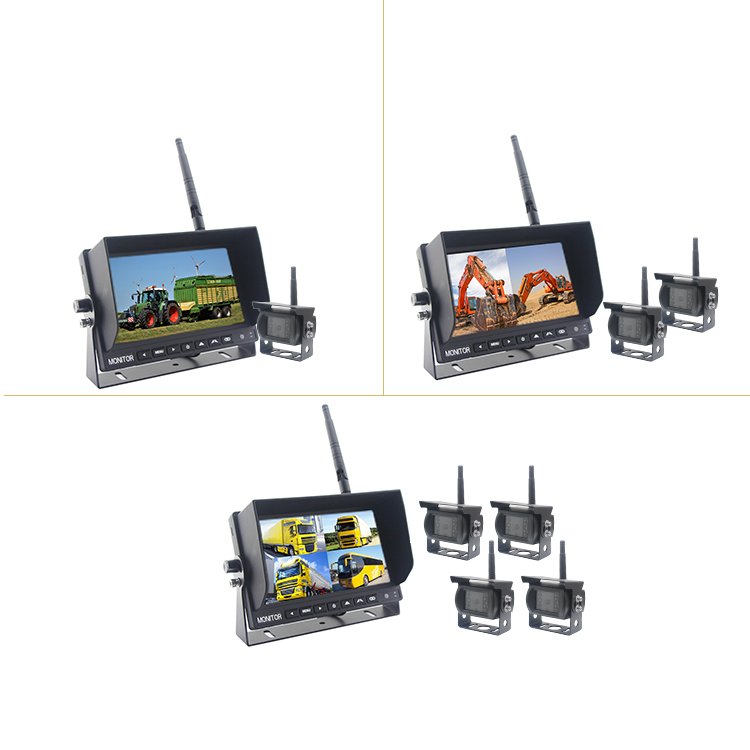

- Support 4CH Video Signals Input, A Variety of Monitors Modes Quad View, Double View, Triple View and Single View to Meet Various Monitoring Needs and Reduce Blind Spots.
- Support 1080P / 720P Camera Wireless Video Signal Inputs.
- 2.4G Wireless Signal Transmission 200M (656ft) Wireless Transmission Distance, without Wiring Easy to Install, Save money and time.
- Built-in 128GB Memory Card, Support 4CH Real-Time Recording and Video Playback.
- Rear View Parking Lines Can be Configured.

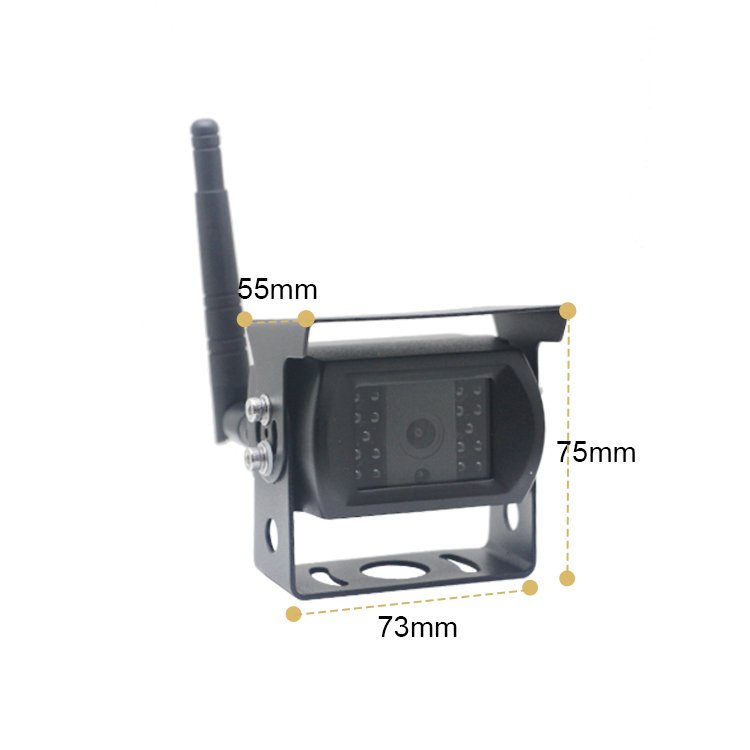

- Wireless Camera Features IP69K Waterproof, HD Night Vision, 120° Wide Angle etc.
- Support Manual and AUTO Pairing, Easy to Operate. After the First Pairing is Completed, Just Connect the Car Power Supply to Work.
- DC 12-24V Wide Voltage, Applicable to A Variety Large & Commercial Vehicles.
| WIRELESS VEHICLE MONITOR | |
| Screen Ratio | 16:9 IPS Panel |
| Resolution | 1024*R.G.B*600 |
| Luminance | LED, 500 cd/㎡ |
| Viewing Angle | Hor. Left 85°, Right 85° / Ver. Up 85°, Down 85° |
| Working Temperature | -20°C~+70ºC / 85%RH MAX |
| Storage Temperature | -30°C~+85ºC / 95%RH MAX |
| Power Supply | DC 12-24V |
| Speaker | with |
| Delay Time | 120mS |
| Electric Current | Standby: ≤10mA, Working: ≤110mA |
| Power Consumption | ＜3W |
| AV Input | 1-4 Channel HD Wireless Video Signal Input |
| Operating Frequency Range | 2400 ~ 2483.5MHz |
| System | PAL / NTSC Automatically |
| Decompression Mode | H.264 |
| Receive Sensitivity | -89dBm@4MHZ |
| Spread Spectrum Mode | FHSS (Adaptive Frequency Hopping) |
| Wireless Reception Distance | 200M (656ft) in Open Area |
| Shockproof Level | 4G |
| Power Cable | DC Cable |
| WIRELESS VEHICLE CAMERA | |
| Image Sensor | CMOS 1/2.7” |
| Pixel | 1080P, 1920*1080 |
| Operating Frequency Range | 2400-2483.5MHZ |
| Wireless Transmission Distance | 200M (656ft) in Open Area |
| System | PAL / NTSC Automatically |
| Spread Spectrum Mode | FHSS (Adaptive Frequency Hopping) |
| Transmission Bandwidth | 8MHz BER<1E-3 |
| Working Temperature | -20°C~+70ºC / 85%RH MAX |
| Storage Temperature | -30°C~+85ºC / 95%RH MAX |
| Audio | with |
| SNR | 46.5dB |
| Waterproof | IP69K |
| Viewing Angle | Diagonal Viewing Angle 120° |
| Transmitting Sensitivity | -89 dBm |
| Shell Material | Aluminium Alloy |
| Warranty | 2 Years |
Product Applications

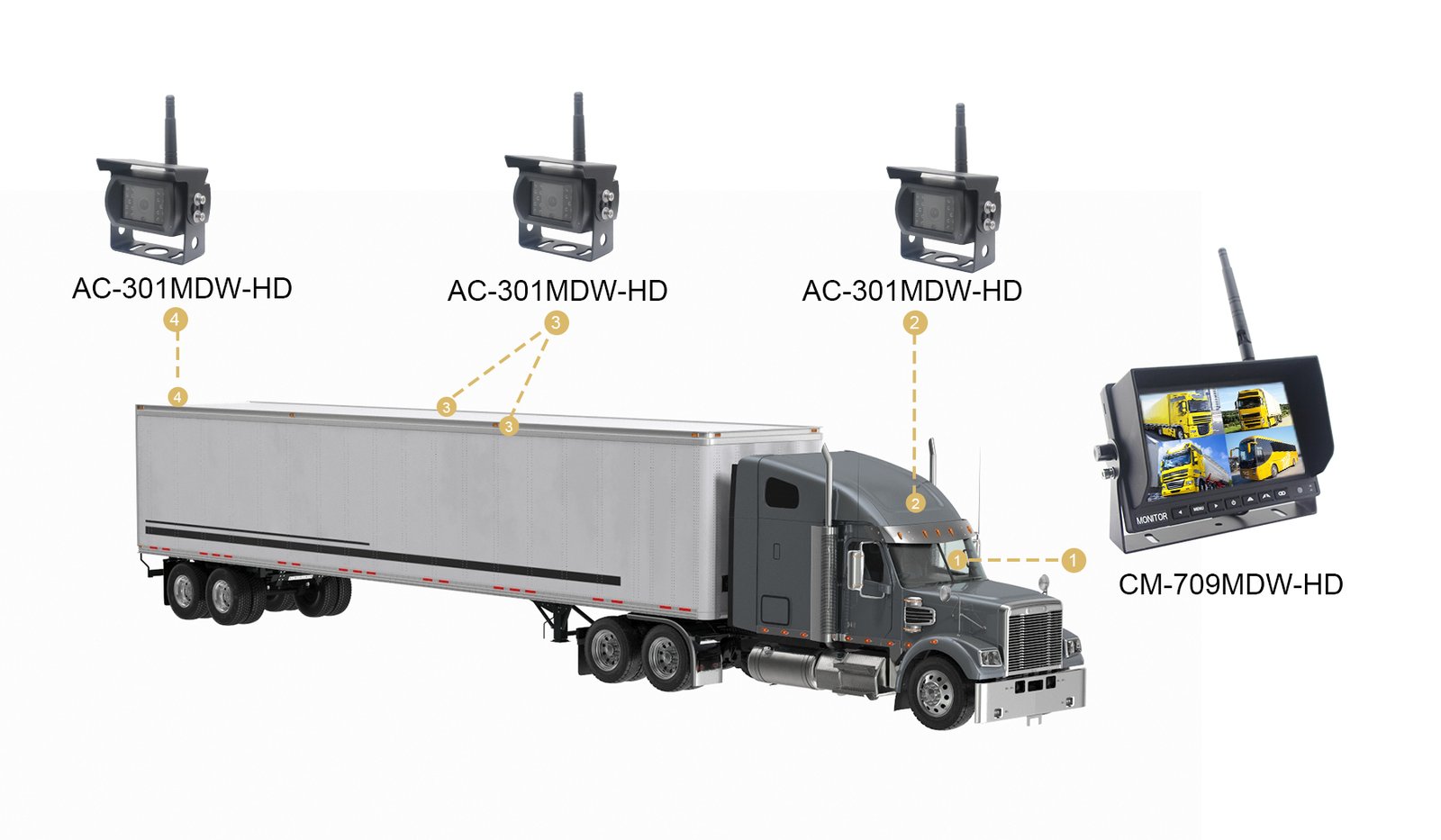

AOTOP 7 inch 1080P digital vehicle wireless backup camera system requires no wiring. Through simple installation, it can be applied to a variety of vehicles such as trucks, buses, agricultural machinery, trailers, excavators, construction vehicles and other commercial vehicles.
