7 Inch Full Waterproof 1080P Forklift Wireless Camera System
AOTOP 7 inch full waterproof 1080P forklift wireless camera system can provides stable visual aids for forklift operators, especially in the case of cargo accumulation blocking the front view, it can clearly show the front view and effectively help to avoiding collision with the obstacles in front. With excellent waterproof performance, it can adapt to various forklift working environments.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

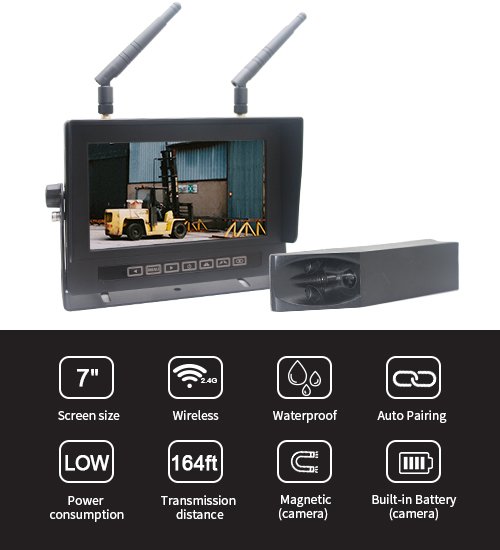

Features
- 【1080P High Definition】– 1080P CMOS Image Sensor Can Help You Get A Clear View During Forklift Operation.
- 【50M Transmission Distance】– Stable Signal, Up to 50 Meters (164ft) 2.4G Wireless Transmission Distance.
- 【Laser Positioning】– Built-in Laser Positioning Line Helps the Driver to Accurately Operate the Fork, So As to Avoid Damage to the Goods.
- 【Magnetic Base】– No Need for Wiring, Time Saving and Effortless.
- 【Waterproof & Shock-Resistant】– IP69K Camera & IP68 Monitor. Waterproof & Dustproof, Shock Resistant, Durable and Fit for Forklift to Work Outside.
- 【Built-in Battery】– Camera Built-in Rechargeable 3400mAh Battery, an Work Continuously for 6 Hours.
- 【Low Power Consumption】– When the Monitor or Screen is Turned Off, A Command is Sent to Turn Off the Camera, Reducing Power Consumption.

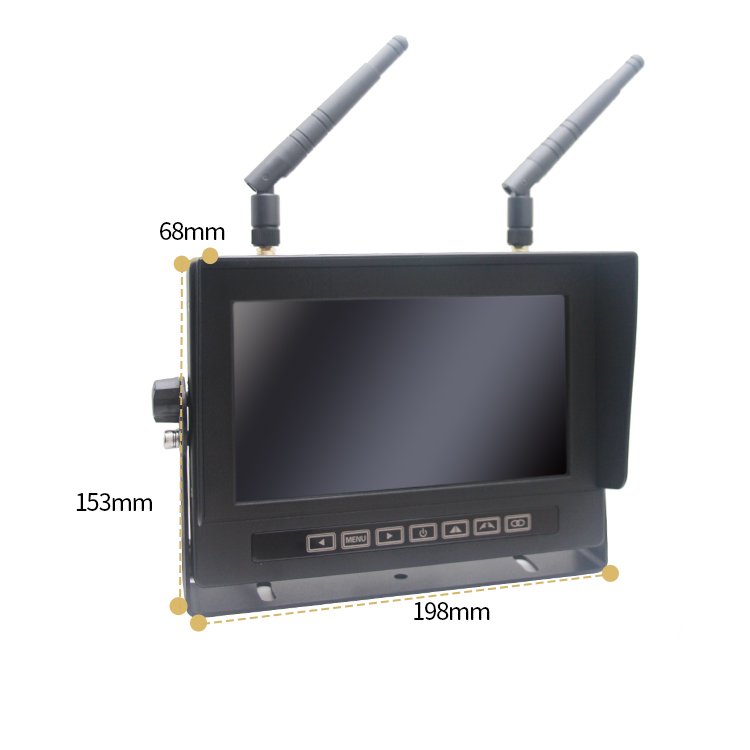

| WIRELESS FORKLIFT MONITOR | |
| Screen Ratio | 16:9 / IPS Panel |
| Resolution | 1024*R.G.B*600 |
| Luminance | LED, Brightness 500 cd/㎡ |
| Wireless Input | 4CH 1080P Wireless Input |
| Working Frequency | 2400 ~ 2483.5MHz |
| Receiving Sensitivity | -89dBm@4MHZ |
| Image Delay Time | 120mS |
| Wireless Receiving Distance | 50M (164ft) in Open Area |
| Operating Temperature | -20°C~+70ºC / 85%RH MAX |
| Storage Temperature | -30°C~+85ºC / 95%RH MAX |
| Vibration Rating | 4G |
| Image Delay Time | 120mS |
| Waterproof Rating | IP68 |
| Power Consumption | ＜3.8W |
| Consumption Current | 12V Standby: ≤10mA / Working: ≤320mA |
| Power Supply | DC 12-24V |
| Shell Materials | PC+ABS |

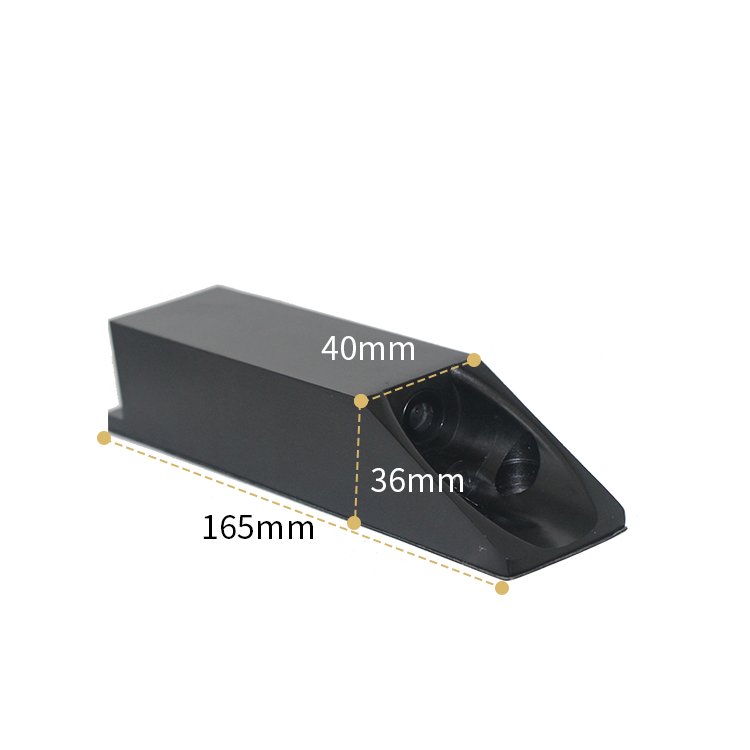

| WIRELESS FORKLIFT CAMERA | |
| Image Sensor | CMOS 1/2.7” |
| Effective Pixels | 1920×1080 Pixels |
| Transmission Frequency | 2400-2483.5MHZ |
| Transmission Distance | 50M (164ft) in Open Area |
| Battery Capacity | 3400mAh |
| Working Time | About 6 Hours |
| Charge Time | 5~6 Hours |
| System | NTSC / PAL Automatically |
| Night Vision | Yes |
| Transmission Bandwidth | 8MHz BER<1E-3 |
| Image | Mirror |
| Power Saving Mode | Automatically |
| Working Temperature | -20°C~+70ºC / 85%RH MAX |
| Storage Temperature | -30°C~+85ºC 95%RH MAX |
| SNR | 46.5dB |
| Waterproof Level | IP69K |
| Viewing Angle | Horizontal More Than 40° |
| Transmission Sensitivity | -89 dBm |
| Shell Materials | Aluminium Alloy |
| Accessories | Power Cable, 5DB Antenna |
| Warranty | 2 Years |

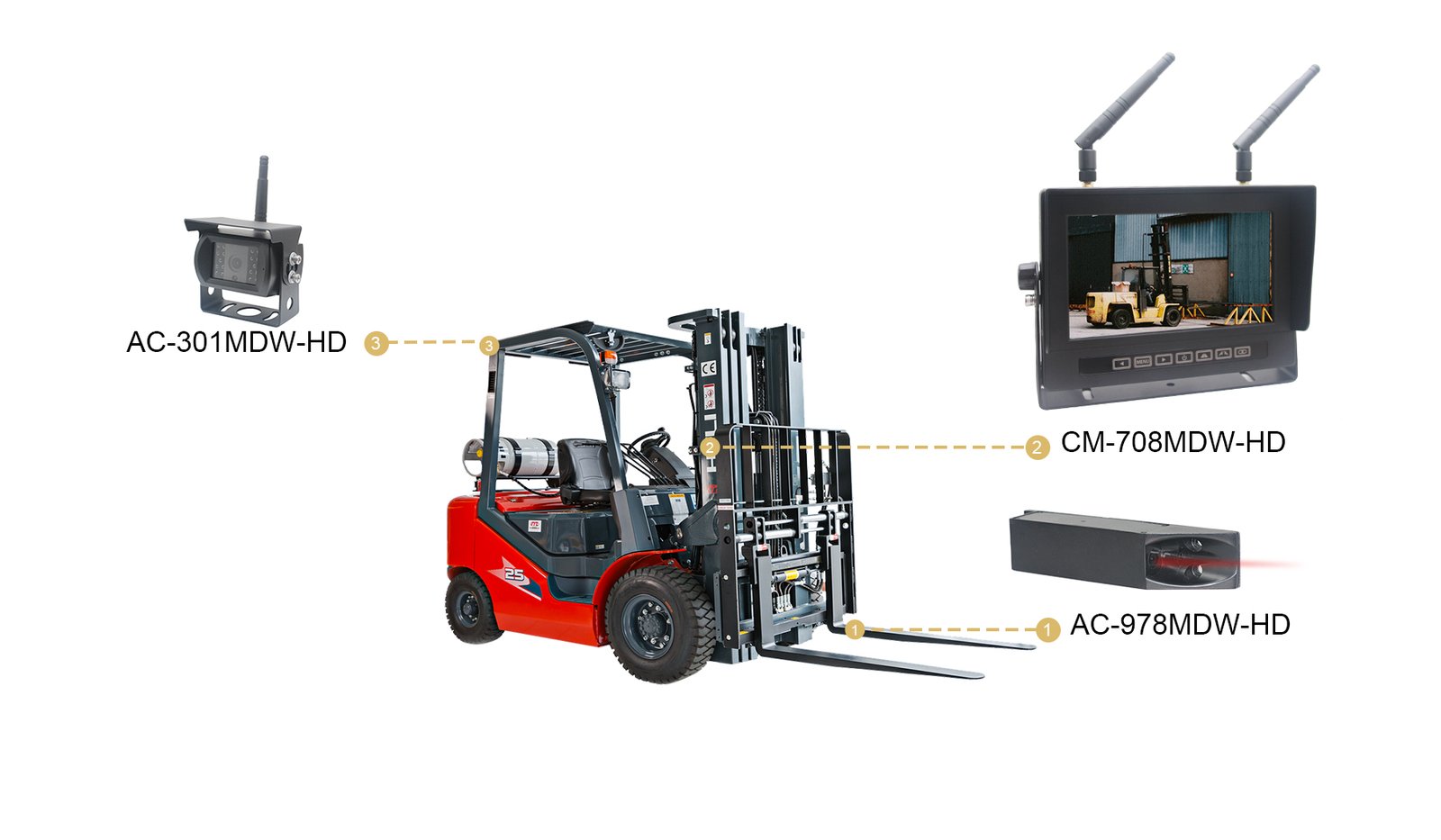

Product Applications
AOTOP 7 inch full waterproof 1080P forklift wireless camera system is easy to install without wiring. It can increase the visibility range of forklift operation and improve operation efficiency. If working with wireless rear view camera, it can monitor both front and rear blind areas of forklifts to avoid collisions and accidents.
