7 Inch Advanced Vehicle AHD Quad Monitor with Al

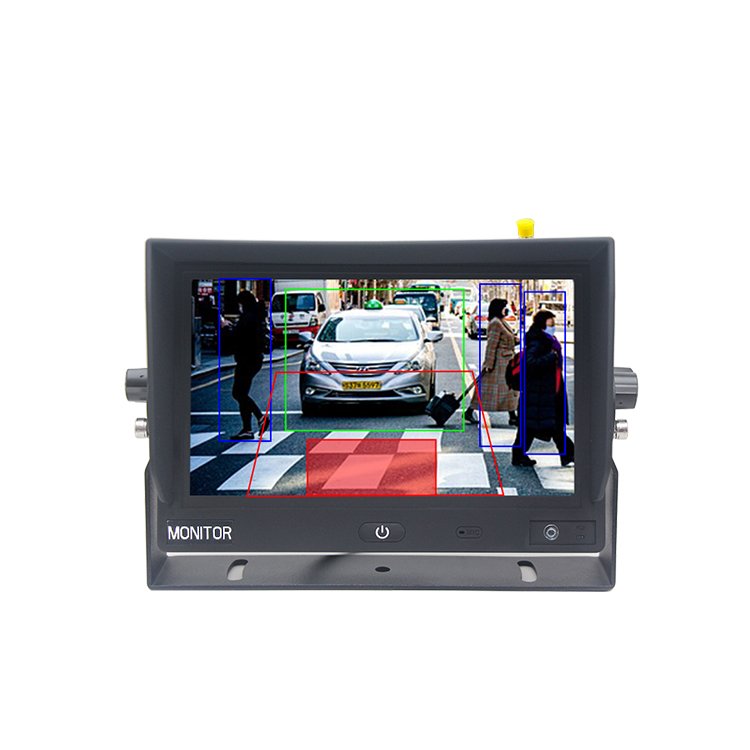

AOTOP 7 inch advanced vehicle AHD quad monitor, has built-in 4CH AI algorithm, detecting pedestrian & vehicle all around the vehicle to remind drivers of potential risks and avoid collision, improving driving safety. Full screen touch built-in SD card without external DVR, supported 4CH video individually recordings with its storage 256GB. And also supporting GPS speed measurement. If you are looking AI monitor for your fleets please contact us！
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

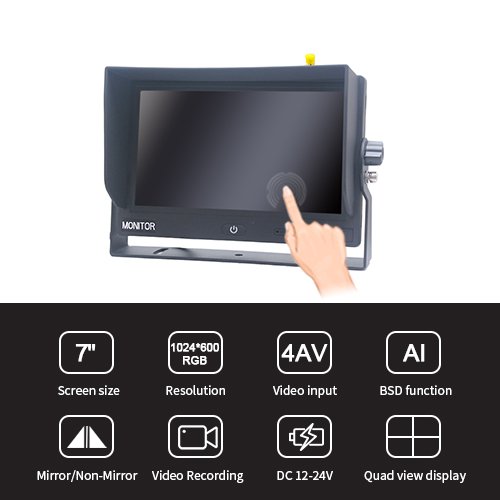

Features
- 1024*RGB*600 Resolution, IPS LCD Digital Screen (Full Touch Screen)
- 4CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / PAL / NTSC
- Built-in GPS Antenna Device, Supported Driving Speed Measurement
- 4 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- Built-in Intelligent AI Algorithm, Supported 4CH Image Human & Vehicle Detection;
- Available Speaker BSD Hazardous Area Approach Audible Warning
- Full Display & 2/3/4 Split View Mode
- Max. 256GB Memory Card (4CH DVR Recorder)
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
| Model | CM-709HQ-BSD |
| Screen Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 BOE |
| Luminance | LED, Brightness 500 cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up 85°, Down 85°, Left 85°, Right 85° |
| Operation Method | Full Screen Touch |
| OSD Control |
Time Setting, Display Setting, Smart Drive, View Files, System Setting |
| Signal Input |
P/N, 720P/1080P, 720N/1080N (The Type of Video Signal of 4CH Should be the Same) |
| Recording | Support |
| SD Card Storage | Support 8-256G, High-Speed Card |
| Video Compression Format | H.264 Compression Mode |
| Video Playback | Single Channel Playback |
| File Format | TS |
| System Language | Chinese, English, Japanese, Korean |
| Display Image Switch | Double-Tap Touch Screen |
| Trigger | 4CH, with Guideline Function |
| Blind Spot AI Human & Vehicle Detection | Support 4 Channel Front / Left / Right / Back |
| Shockproof Level | 4G |
| Recording Audio |
4 Channels Recording (Not Including Audio From Camera) |
| Working Temperature | -20~+70ºC |
| Working Humidity | 85%RH |
| Storage Temperature | -30~+80ºC |
| Power Supply | 12-24V |
| Power Consumption | Normal Working Condition＜11.4W |
| Booting Time | 4S |
| Current Consumption | DC12V≈550MA , without Cameras |
| Speaker |
BSD Warning From the Monitor (Audio From the Camera is Not Supported) |
| Warranty | 2 Years |
Product Applications

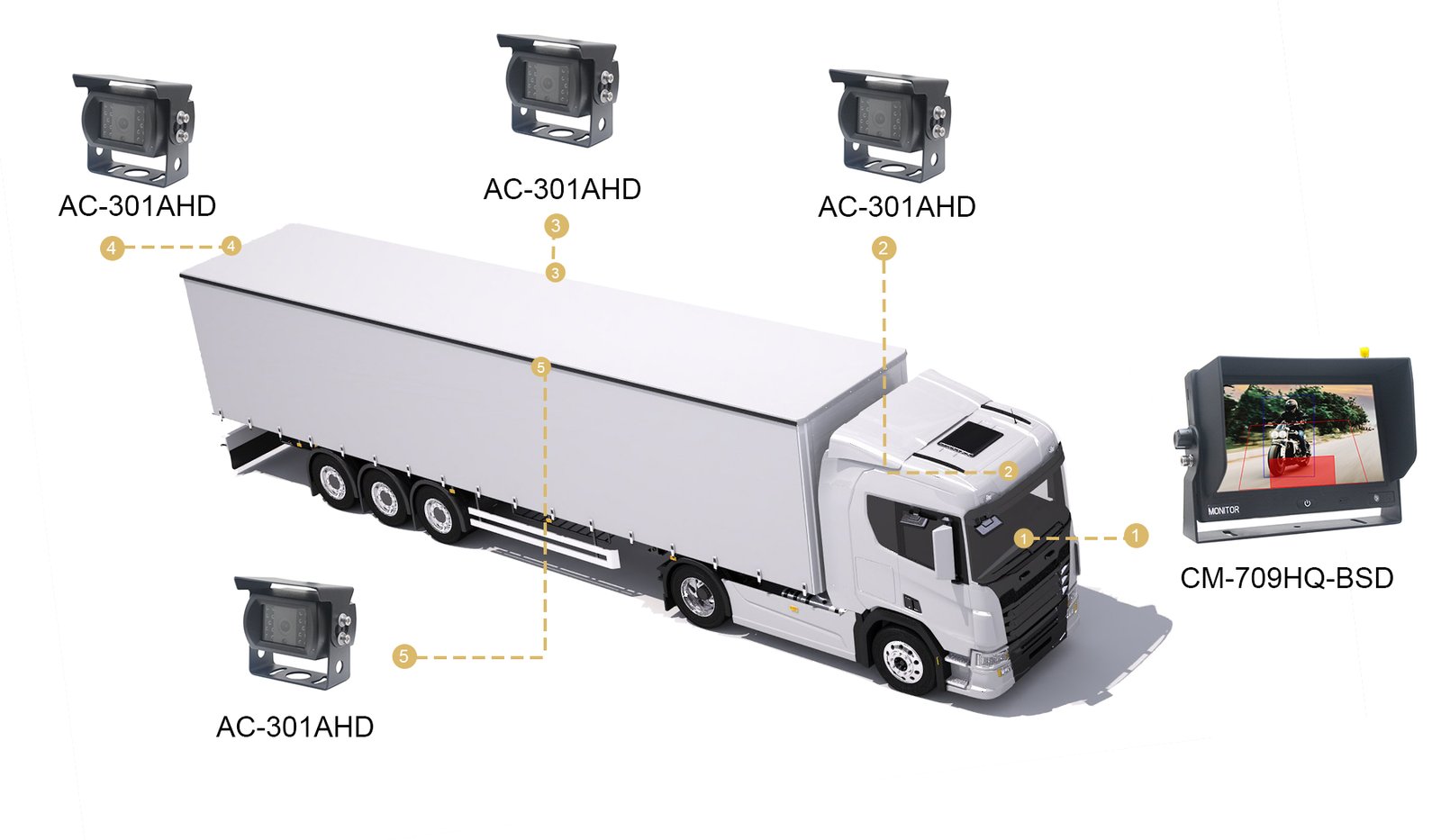

AOYOP 7 inch advanced vehicle AHD quad monitor with Al can be easily applied to various commercial vehicles and work well with our vehicle HD cameras (safety AI vision system), realize all round pedestrians & vehicles detection. It can remind drivers of potential risks and avoid collision, improving driving safety!
