7 Inch HD Vehicle Digital Wireless Backup Camera System
AOTOP 7 inch HD vehicle digital wireless backup camera system is easy to install, the monitor support 4CH wireless vehicle camera video signal inputs, connecting 4CH 720P wireless vehicle backup cameras, making monitoring around the vehicle simple and efficient. The system does not require complex cable routing, is good for installation on heavy vehicles such as trucks, harvesters, trailers, forklifts. Providing the drivers with a comprehensive vision and improving driving safety.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

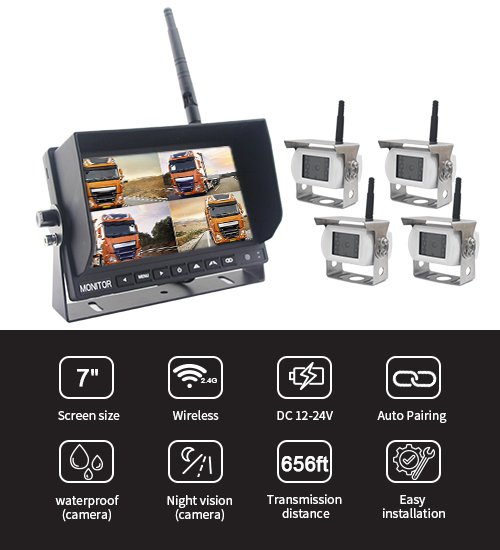

Features
- 7 Inch IPS LCD Screen, 1024*R.G.B*600 High Definition Resolution.

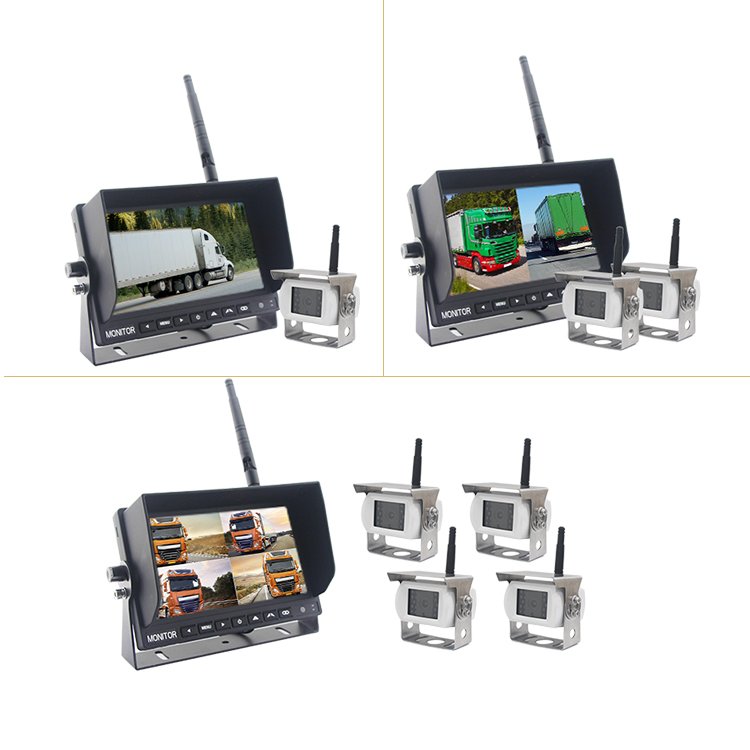

- Support 4CH Video Signals Input, A Variety of Monitors Modes Quad View, Double View, Triple View and Single View to Meet Various Monitoring Needs and Reduce Blind Spots.
- Support 720P AHD Camera Wireless Video Signal Inputs.
- 2.4G Wireless Signal Transmission 200M (656ft) Wireless Transmission Distance, without Wiring Easy to Install, Save Money and Time.
- Rear View Parking Lines Can be Configured.
- Camera Features IP69K Waterproof, HD Night Vision, 120° Wide Angle etc.
- Support Manual and AUTO Pairing, Easy to Operate. After the First Pairing is Completed, Just Connect the Car Power Supply to Work.
- DC 12-24V Wide Voltage, Applicable to A Variety Large & Commercial Vehicles.
| WIRELESS VEHICLE MONITOR | |
| Screen Ratio | 16:9 / IPS |
| Resolution | 1024*R.G.B*600 |
| Luminance | LED, Brightness 500 cd/㎡ |
| Viewing Angle | Hor. Left 85°, Right 85° / Ver. Up 85°, Down 85° |
| Trigger | 4 Trigger Control |
| Wireless Input | 4CH AHD Wireless Input |
| Audio | Without (Customized) |
| System | PAL / NTSC Automatically |
| Working Frequency | 2400 ~ 2483.5MHz |
| Receiving Sensitivity | -89dBm@4MHZ |
| Image Delay Time | 120mS |
| Wireless Reception Range | 200M (656ft) in Open Area |
| Operating Temperature | -20ºC~+70ºC / 85%RH MAX |
| Storage Temperature | -30ºC~+85ºC / 95%RH MAX |
| Vibration Rating | 4G |
| Power Consumption | ＜5W |
| Power Supply | DC 12-24V |
| WIRELESS VEHICLE CAMERA | |
| Image Sensor | CMOS 1/2.7” |
| Pixel | 720P, 1280*720 |
| Operating Frequency Range | 2400-2483.5MHZ |
| Wireless Transmission Distance | 200M (656ft) in Open Area |
| System | PAL / NTSC (Optional) |
| Spread Spectrum Mode | FHSS (Adaptive Frequency Hopping) |
| Transmission Bandwidth | 8MHz BER<1E-3 |
| Working Temperature | -20ºC~+70ºC / 85%RH MAX |
| Storage Temperature | -30ºC~+85ºC / 95%RH MAX |
| Audio | Default without (Customized) |
| SNR | 46.5dB |
| Waterproof | IP69K |
| Viewing Angle | Diagonal Viewing Angle 120° |
| Transmitting Sensitivity | -89 dBm |
| Shell Material | Aluminium Alloy |
| Warranty | 2 Years |
Product Applications

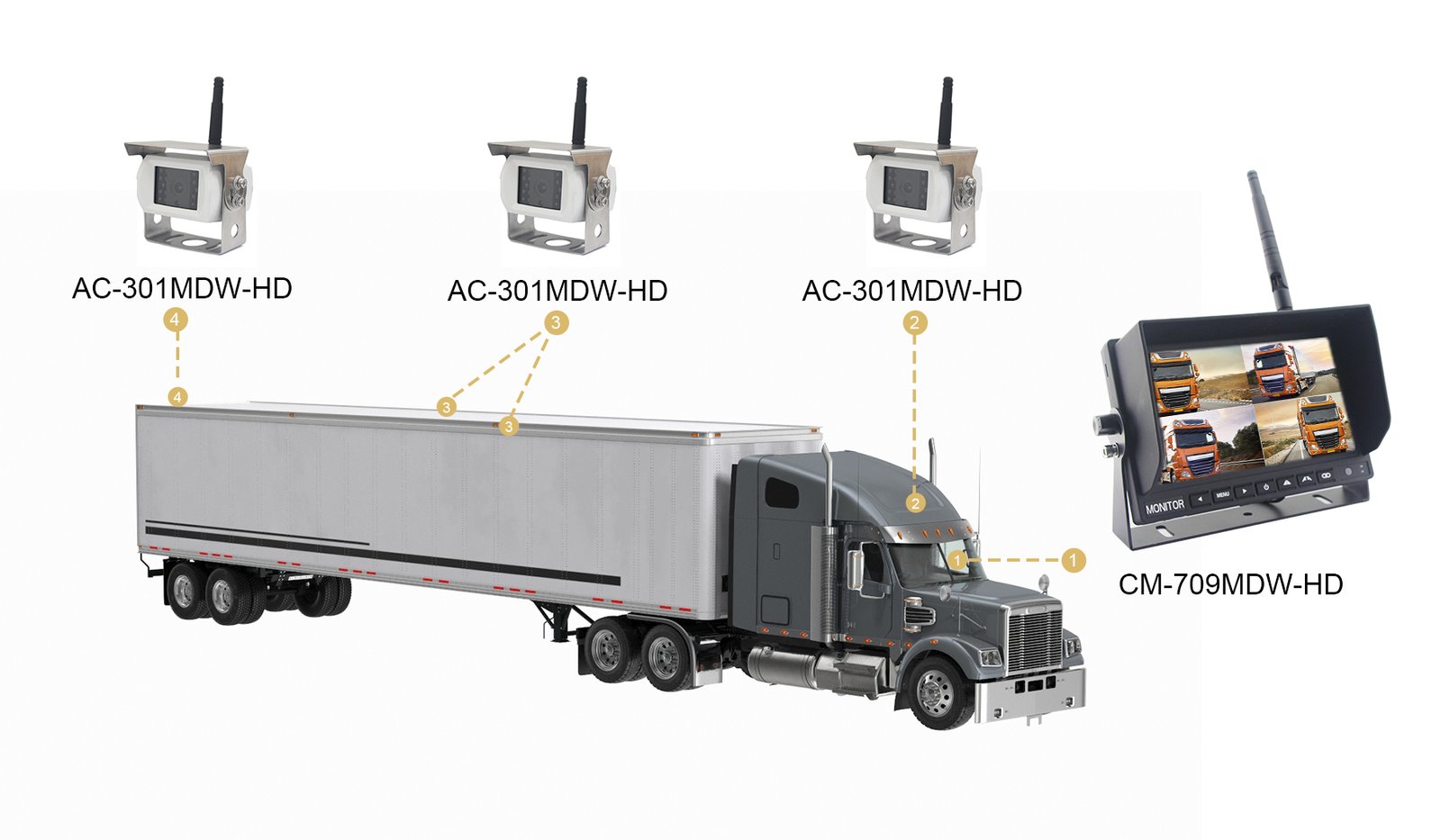

AOTOP 7 inch HD vehicle digital wireless backup camera system requires no wiring. Through simple installation, it can be applied to a variety of vehicles such as forklifts, cranes, trailers, trucks, RVs, vans and other commercial vehicles.
