8.88 Inch 3CH HD Rearview Backup Camera Mirror System with BSD

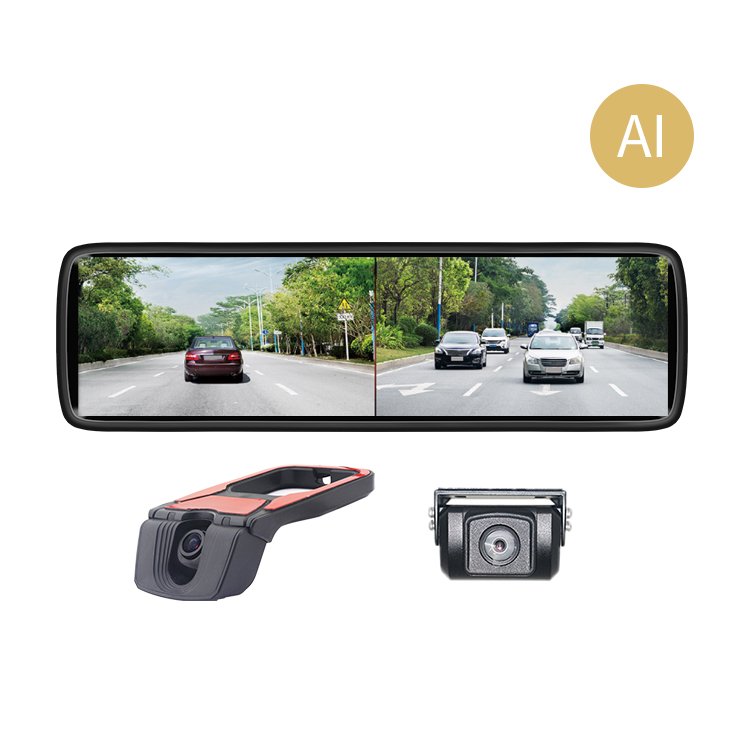

AOTOP 8.88 inch 3CH HD rearview backup camera mirror system with BSD is good for all kinds of commercial heavy duty vehicle. The mirror feature 8.88 inch HD IPS LCD digital touchable screen, supported 3CH 1080P HD camera video signal input can be connected to 2CH backup camera (far view + near view), can be dual split view display. Built-in AI algorithm, support rear view real-time human & vehicle detection, anti-collision warning. Featuring DVR functions, support 3CH camera video signal real-time recording. The mirrors has more than 100+ mounting brackets, that can be install on various brands of commercial vehicles.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

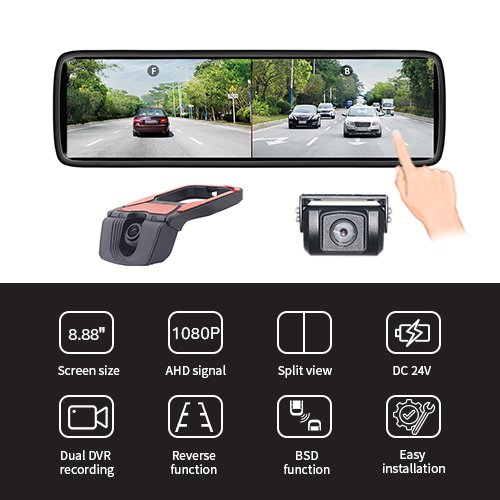

Features
- 24V Working Voltage is Good for Wide Range of Commercial & Heavy Vehicles;
- Rear Side Blind Spot Reminder BSD Blind Spot Pedestrian & Vehicle Detection;
- Supports 2CH HD Rear View Camera Input, Reversing Interface Can Choose to Display the Screen of Reversing Camera Alone or Two Rear View Screens at the Same Time;
- Support 3CH Recording in Total, One for Front View, Two for Back View;
- Built-in G-Sensor Automatically Lock the File When in Accident Like Car Crash and Emergency Braking;
- Support HD Color Night Vision, Automatic Exposure, Eliminate Flicker, Low Image Noise, WDR, No Image Distortion;
| Model | T96 |
| Certification | CE, UKCA, E-Mark, RoHS |
| RAM | 512M |
| System | EOS |
| G-Sensor | Triaxial |
| Screen |

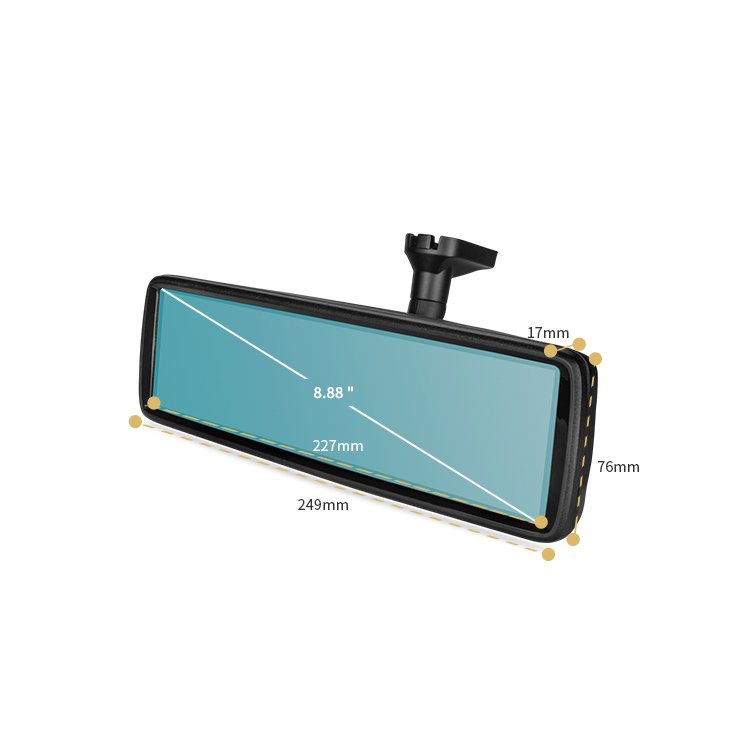

8.8 Inch IPS LCD 1920*480, Up / Down / Left / Right More than 170° |
| Brightness | ≥800nits |
| Touch Screen | Capacitive Touch Screen |
| Working Voltage | 9~36V, From Power Supply Box |
| Max. Current | ≤2.0A |
| Standby Current | <10mA |
| Camera Video Output | TVI / AHD |
| Lens | Full Glass |
| Front View Camera | 1920*1080, 27.5fps, Support HDR |
| Rear View Camera | 1920*1080, 30fps, Support HDR |
| Video Format | 1080P, TS |
| Picture Format | JPEG |
| GPS | Exterior GPS Module |
| Speaker | 1 * Speaker, 4Ω 2W |
| Microphone | 1 * Electrets Microphone |
| Key | 1 * Key, Power Key |
| TF Slot | Support Micro SD Card, Max. 256GB, U1/C10 |
| Mirror Housing Material | PC+ABS, Plastic Injection, Anti-Flaming UL94 |
| Mirror Adjust Torque | 1.2~1.7(N·m), Single Ball, Adjust Manually |
| Mirror |
Flat Mirror, Radius of Curvature ∞, Mirror Reflectivity 41%~45% |
| Circuit Protection |
Overvoltage / Overcurrent Protection, Reverse Voltage Protection |
| Working Temp. | -30℃~+70℃ |
| Storage Temp. | -40℃~+85℃ |
| Storage Humidity | 0%~90% |

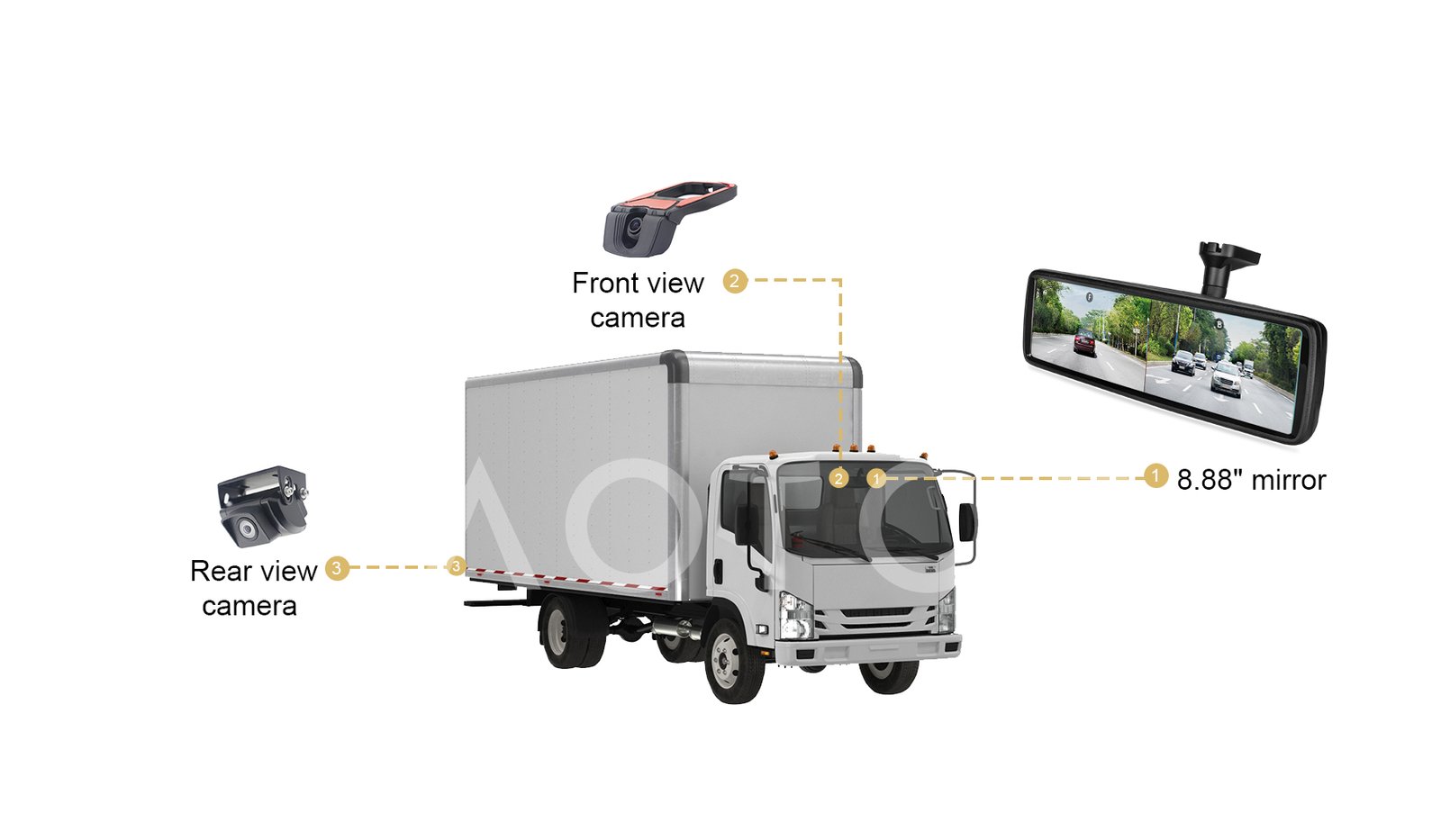

Product Applications

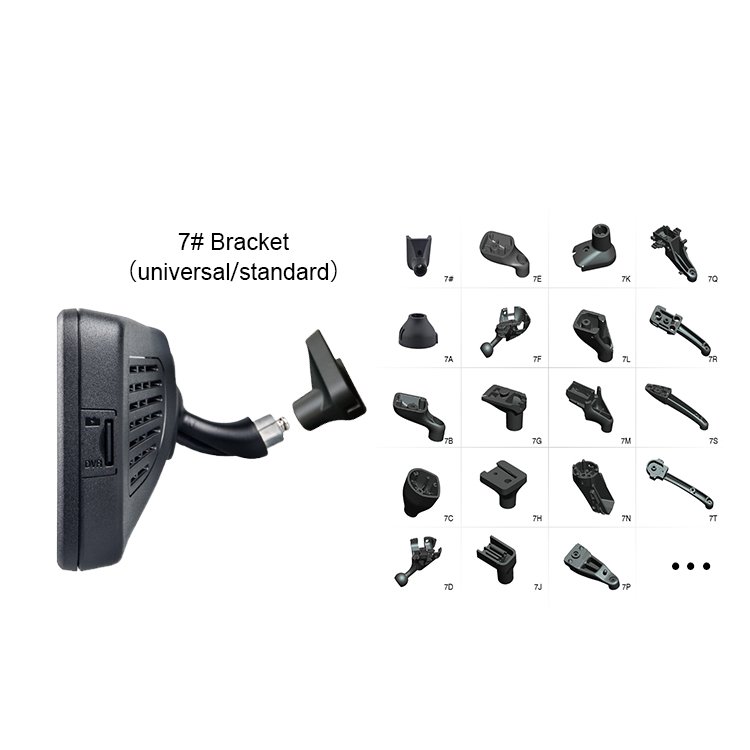

AOTOP 8.88 inch 3CH HD rearview backup camera mirror system with BSD have more than 100+ mounting brackets for mounting on different year brands of commercial vehicles.
