8.88 Inch HD Dual DVR Recording Rearview Mirror Camera System

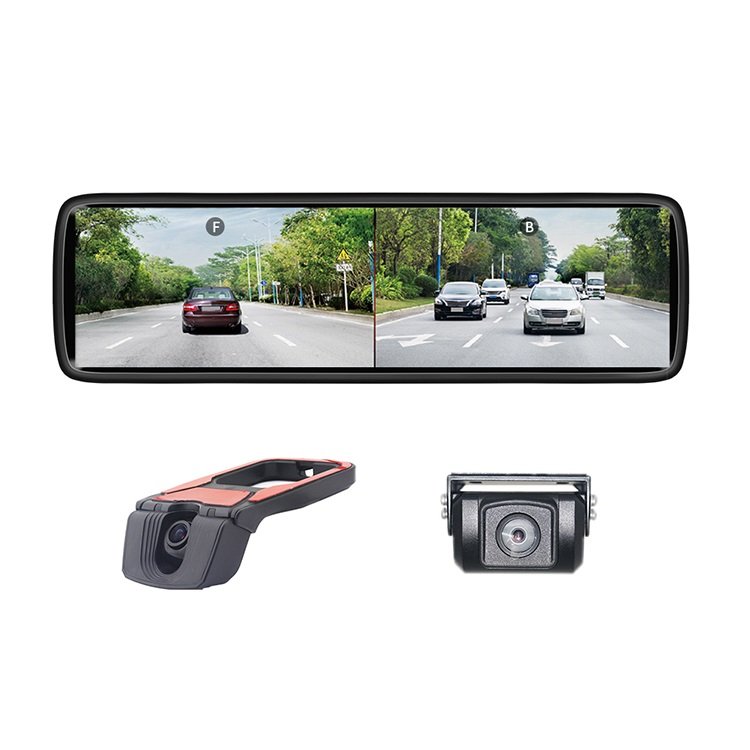

AOTOP 8.88 inch HD dual DVR recording rearview mirror camera system includes an 8.88 inch digital IPS mirror monitor and 2CH HD 1080p front and rear view cameras. The mirror support full screen touch, 2CH video signal input dual split view display, support front and rear camera video signal DVR recording. The mirror can be installed on various car brands. When turned off, the mirror screen function as regular reflective mirror.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

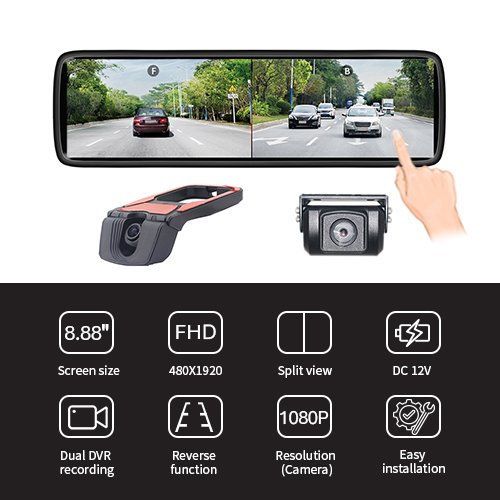

Features
- 3 Times of View Range Than Traditional Mirrors, No Blind Spot Rear Area;
- Front and Back Dual WDR HD Recording, Dual Split view;
- Built-in G-Sensor Automatically Lock the File When in Accident Like Car Crash and Emergency Braking;
- Support HD Color Night Vision, Automatic Exposure, Eliminate Flicker, Low Image Noise, WDR, No Image Distortion;
- Support Responsive Reversing Display Automatically;
- More Than 100+ Mirror Mounting Brackets, Suitable for Most Car Models;
| Model | T91 |
| Certification | CE, UKCA, E-Mark, RoHS |
| Working Temperature | -20℃~+70℃ |
| Storage Temperature | -40℃~+85℃ |
| Storage Humidity | 0%~90% |
| Mirror Housing Material | PC+ABS, Plastic Injection, Anti-Flaming UL94 |
| Bracket Material | Alloy, Pressure Casting |
| Mirror Adjust Torque | 1.2~1.7 (N·m), Single Ball, Adjust Manually |
| Mirror Material | Monox, Titanium Oxide Coated Mirror Glass |
| Mirror Type | Flat Mirror |
| Mirror Radius of Curvature | ∞ |
| Mirror Reflectivity | 41%~45% |
| Mirror Anti-Glare | Ant-Glare Blue Mirror |
| Keyboard | 1 * Piece of Mechanical Keys |
| TF Card Slot | 1 * Piece of TF Card Slot (DVR) |
| Power Supply | Get Power From Car Power Supply (Fuse Box) |
| Working Voltage | (B+: +12V, ACC: +12V, GND: Ground) |
| Max. Working Current | ＜1.0A |
| Stand by Current | ＜5mA |
| Overvoltage / Overcurrent Protection | Support |
| Reverse Voltage Protection | Support |
| Speaker | 1 Piece of Digital Noise Reduction Silicon Speaker |
| Main Chip | CPU-Cortex A7 |

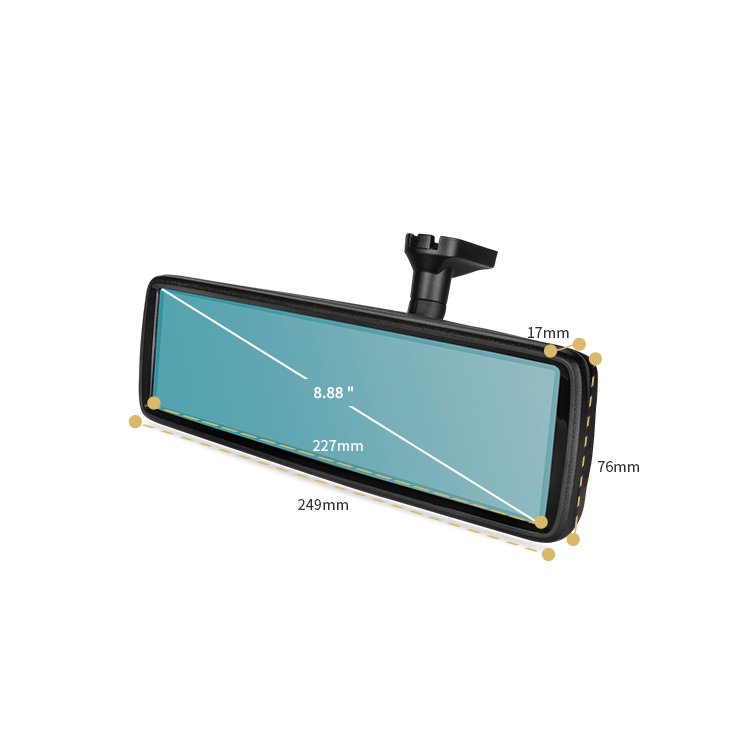

| Screen Size | 8.88 Inch |
| Screen Resolution | 1920*480 |
| View Angle | Up / Down / Left / Right More than 170° |
| Touch Screen | Capacitive Touch Screen |
| WIFI | IEEE 802.11 |
| G-Sensor | Triaxial G-Sensor |

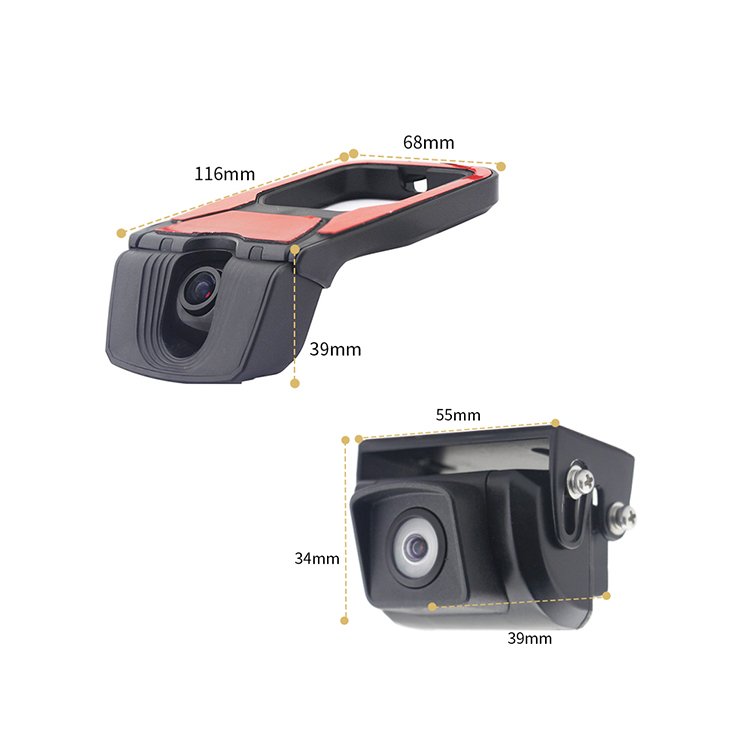

| Front View Camera | 1920*1080, 6 Glass Lens, Angle 110° |
| Rear View Camera | 1920*1080, 6 Glass Lens, Angle 130° |

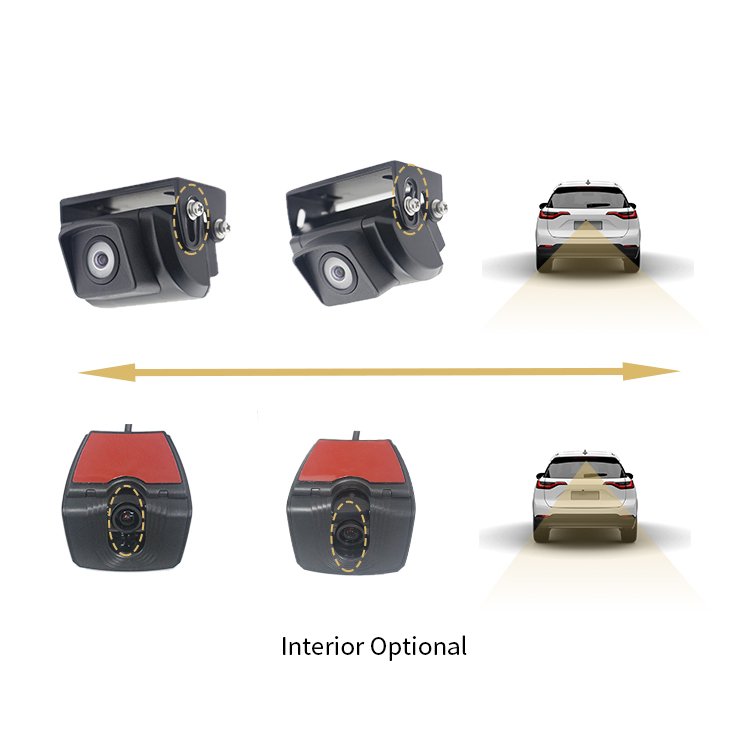

| Outside Rear View Camer | Standard |
| Interior Rear View Camera | Optional |
| Image Sensor | 1/3 CMOS |
| Resolution | 1920(H) * 1080(V) |
| Image Process System ISP | WDR/HDR, Support Image Distortion Correction |
| WDR | 2 Frames Long and Short Frames Image Compose |
| Rear View Camera Video Output | AHD |
| DVR Video Format | Front 1080P, Back 720P |
| DVR Photograph Format | JPEG |
| Reversing Response Time | <3s |
Product Applications

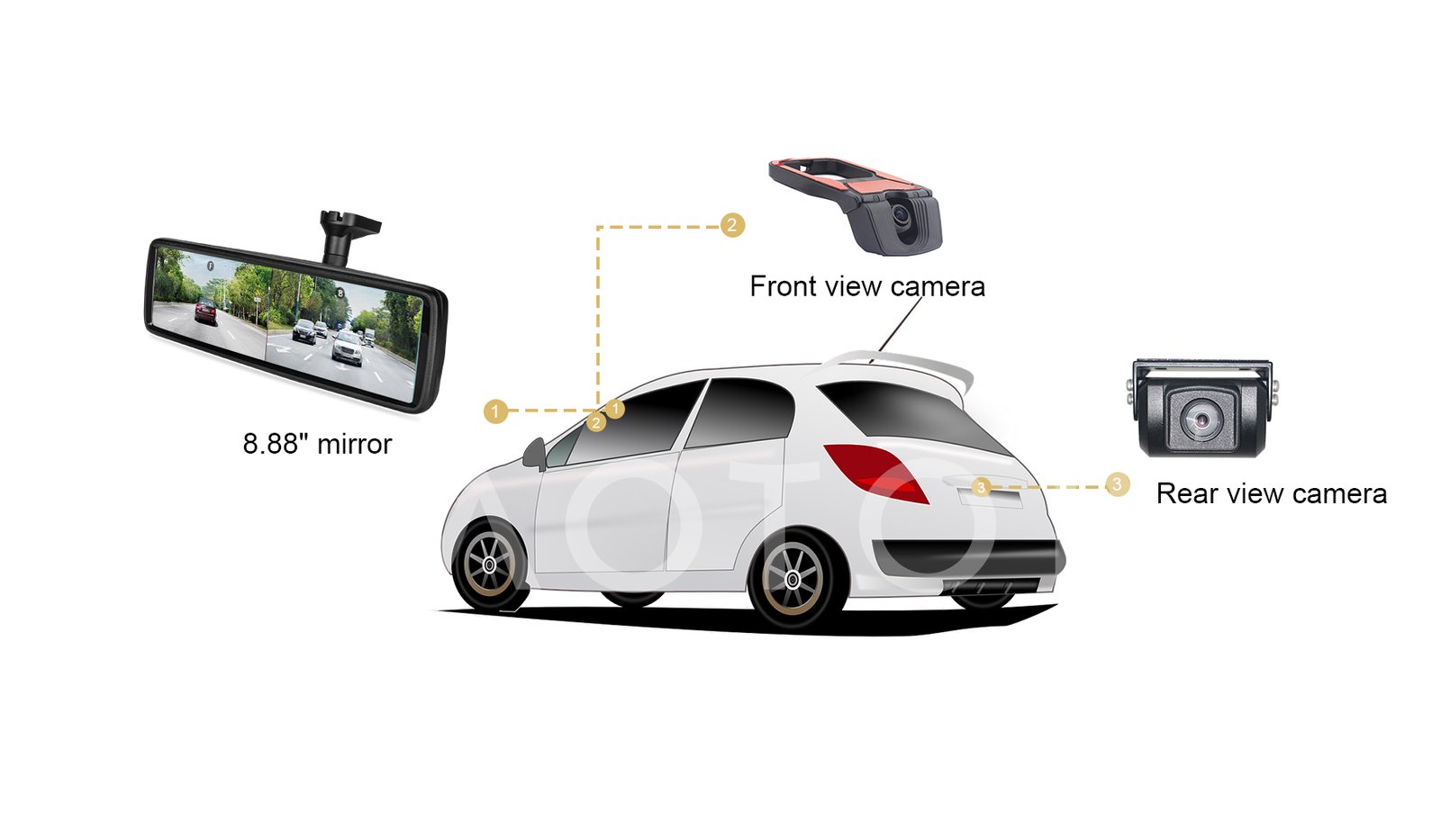

AOTOP 8.88 inch HD dual DVR recording rearview mirror camera system have more than 100+ mounting brackets for mounting on different year brands of cars.
