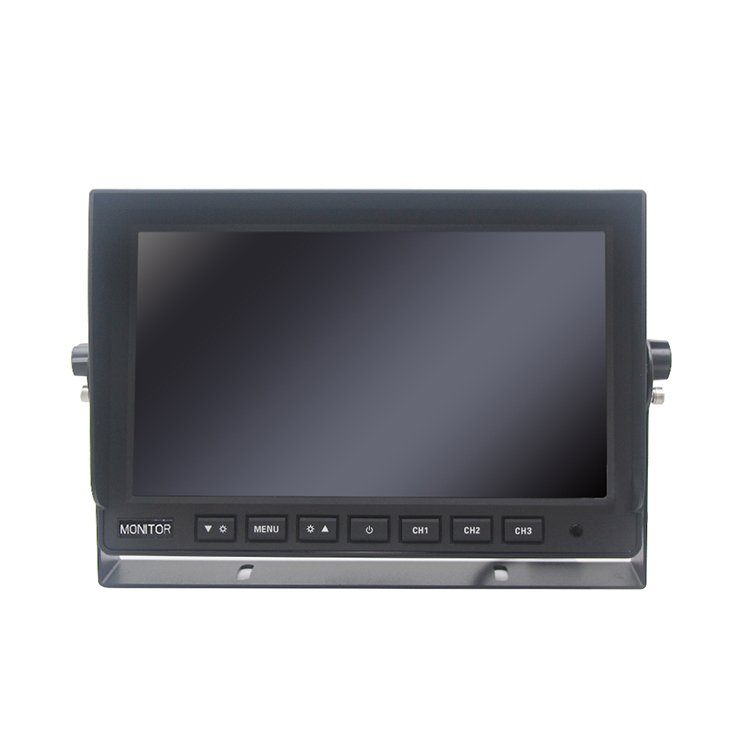

10.1 Inch AHD Car Rear View Camera Monitor
AOTOP 10.1 inch AHD car rear view camera monitor supported 3CH AHD camera video input, allowing drivers to view the conditions around their vehicle in real time. HD visual display helps reduce the risk of collisions and scrapes while driving. Designed to provide clear image quality and ease of operation. The monitor meets the user’s need for an efficient in-vehicle monitoring.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

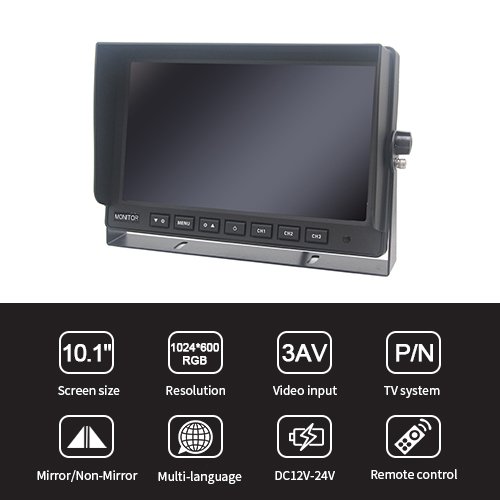

Features
- 1024*RGB*600 Resolution (IPS LCD Screen)
- 3CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 2CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching; Image Flip;
- DC 12-24V Wide Voltage
- AUTO Adaptation PAL / NTSC System
| Model | CM-1010MAHD |
| Screen Ratio | 16:9 |
| Back Light Luminance | LED, Luminance 400cd/㎡ |
| Resolution | 1024*RGB*600 |
| Contrast | 500:1 |
| Compatible System | PAL & NTSC (Automatically) |
| OSD Control |
Image Setting, General Setting, System Setting, Volume |
| View Angle | Up 85°, Down 85°, Left 85°, Right 85° |
| Power Supply | DC 12-24V |
| Boot Time | 2s |
| Current Consumption | DC12V / 500mA |
| Power Consumption | ＜4W |
| Storage Temperature | -30℃〜+80℃ |
| Working Temperature | -20℃〜+70℃ |
| Working Humidity | 85%RH |
| Image Display | 3CH Single Image Display |
| Signal Input |
3CH AHD 1080P / 720P / CVBS Input, 2CH Audio Input Compatible With CVBS / AHD Signals Compatible With PAL NTSC Systems |
| Trigger | 3CH Trigger Control, Could Set Reversing Delay |
| Speaker | Built-In |
| Language |
Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Russian |
| Parking Guideline | Off As Default |
| Mirror / Non-Mirror Image Display | Mirror As Default |
| Shockproof Level | 4G |

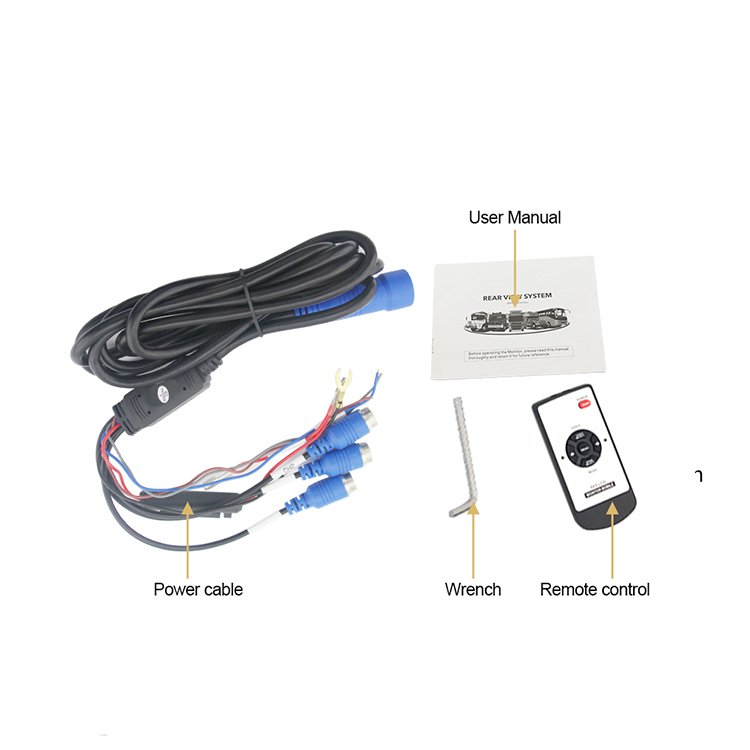

| Accessories |
Remote Control, Power Supply Cable, User Manual, Sunshade, Wrench |
| Warranty | 2 Years |
| Certification | E-Mark, UKCA, E24, CE, FCC |
Product Applications
AOTOP 10.1 inch AHD car rear view camera monitor can be easily applied to various commercial vehicles and work well with our vehicle HD cameras. It helps drivers see their surrounding clearly and effectively reduce the risk of scratches and accidents.
