5.6 Inch High Definition LCD Vehicle Monitor
5.6 inch high definition LCD vehicle monitor support 3CH AV signal input and can be connected to three vehicle cameras. It can helps drivers see their surroundings clearly and effectively reduces the risks of scratches and accidents. Multi-language settings, PAL / NTSC TV system, ideal for global customers to improve road safety！
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

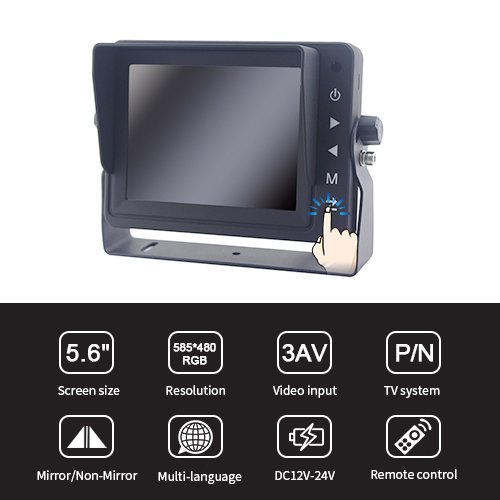

Features
- 585*RGB*480 Resolution (TFT LCD Digital Screen)
- 3CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS;
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching; Image Flip;
- AUTO PAL / NTSC TV System
| Model | CM-560MAHD |
| Screen Type & Size | 5.6 Inch TFT LCD Digital Screen |
| Aspect Ratio | 4:3 |
| Resolution | 585*R.G.B*480 |
| Brightness | 300cd/㎡ |
| Video Input |
Support 3CH AHD 1080P/960P/720P/CVBS Mixed Video Signal Input |
| Audio Input | 1CH Camera Audio Input (Available Speaker) |
| OSD Menu |
Image Setting, Image Signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
| Parking Guide Line |
Each Channel is Controlled Separately (Off As Default) |
| Mirror / Normal Image |
Each Channel is Controlled Separately (Mirror As Default) |
| Trigger | 3CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/<1A |
| Operating Power | <10W |
| Boot Time | About 2 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Vibration Rating | 4G |
| Operating Temperature | -20°C~+70°C (RH0%-RH90%) |
| Storage Temperature | -30°C~+80°C (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | E-Mark, UKCA, E24, CE, FCC |

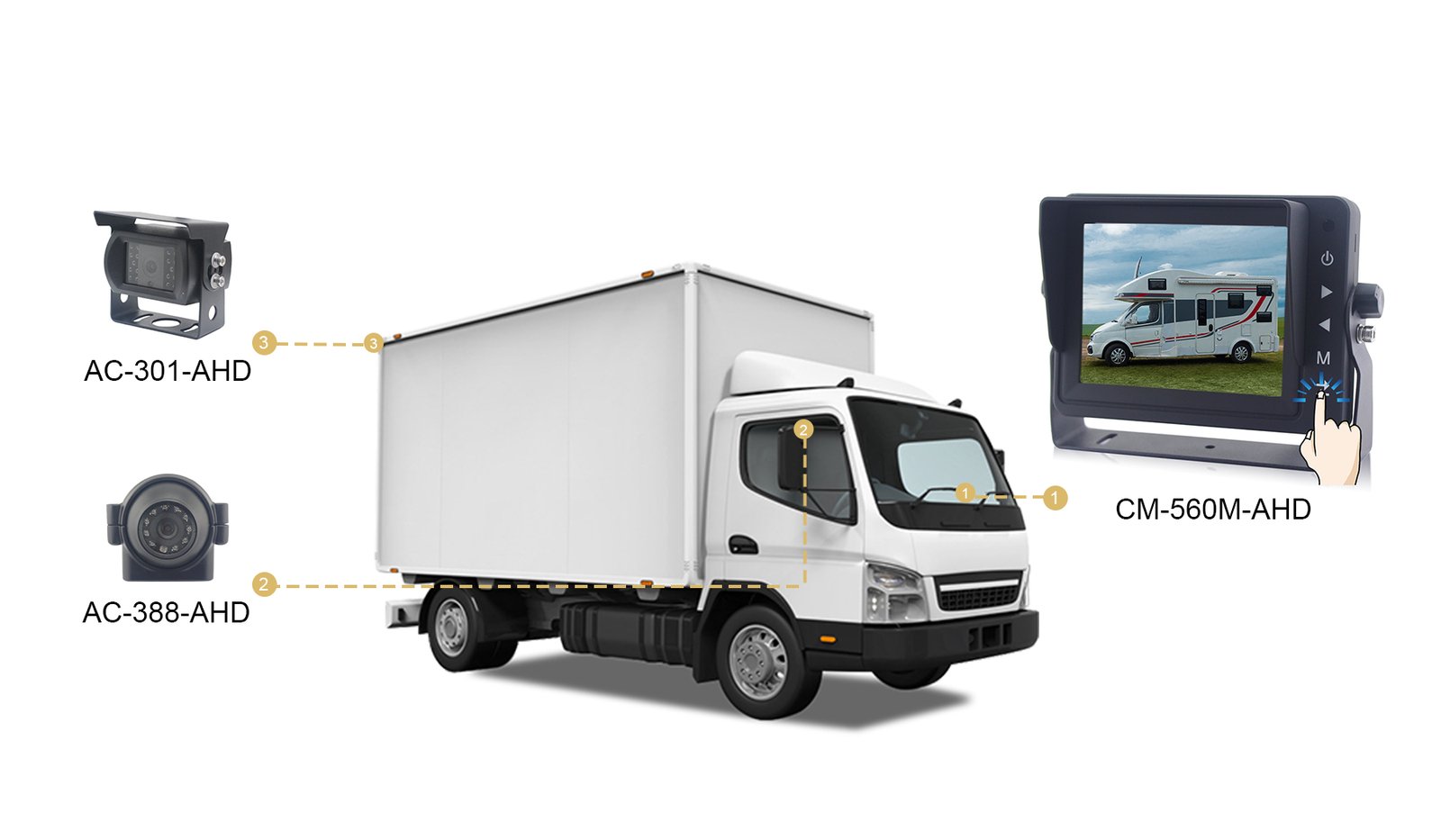

Product Applications
AOTOP 5.6 inch high definition LCD vehicle monitor can be easily applied to various commercial vehicles and work well with our vehicle HD cameras. It helps drivers see their surrounding clearly and effectively reduce the risk of scratches and accidents.
AOTOP - Industry Leader Manufacturers in Commercial Vehicle Safety Systems
Since 2005, We specialize development in commercial vehicles safety system, committed to improving the road driving safety. With decades of expertise, we offer comprehensive range of innovative safety vision products designed to protect drivers, vehicle and pedestrian. Whether you are upgrading an existing system or to starting a new project, here are six key reasons why AOTOP is your trusted partner！
20 Years Industry Experience
Powerful Manufacturing
Good Quality, All Certificates
Professional Senior R&D Team
Responsive Customer Service
Faster Delivery Time
