7 Inch High Definition IPS Color Car Monitor
AOTOP 7 inch high definition IPS color car monitor, supports 3CH AHD camera video input, allowing drivers to view the conditions around their vehicle in real time. HD visual display helps reduce the risk of collisions or scrapes while driving. Designed to provide clear image quality and ease of operation. The monitor meets the user’s need for an efficient in-vehicle monitoring.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

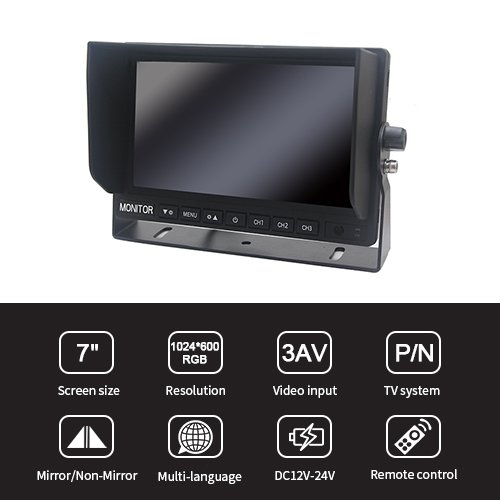

Features
- 1024*RGB*600 Resolution (IPS LCD Screen)
- 3CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching; Image Flip;
- DC 12-24V Wide Voltage
- AUTO Adaptation PAL / NTSC System
| Model | CM-709MAHD |

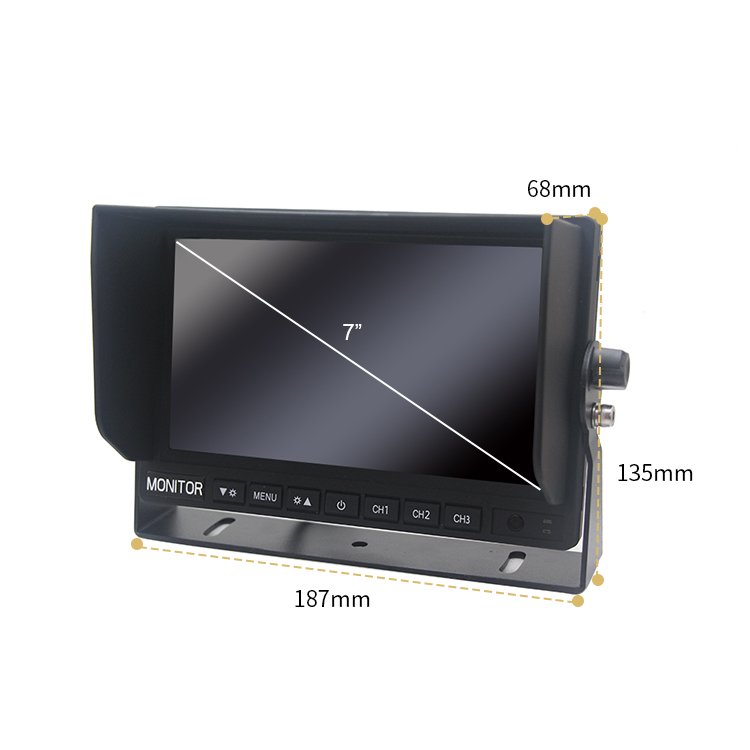

| Screen Type & Size | 7 Inch IPS LCD Screen |
| Aspect Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Brightness | 650cd/㎡ |
| Contrast | 800:1 |
| Viewing Angle | Up 85°, Down 85°, Left / Right 85° |
| Video Input |
Support 3CH AHD 1080P/960P/720P/CVBS Mixed Video Signal Input |
| Audio Input | 1CH Camera Audio Input (Available Speaker) |
| OSD Menu |
Image Setting, Image Signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
| Parking Guide Line |
Each Channel is Controlled Separately (Off As Default) |
| Mirror / Normal Image |
Each Channel is Controlled Separately (Mirror As Default) |
| Trigger | 3CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/<1A |
| Operating Power | <10W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Vibration Rating | 4G |
| Operating Temperature | -20°C~+70°C (RH0%-RH90%) |
| Storage Temperature | -30°C~+80°C (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | E-Mark, UKCA, E24, CE, FCC |

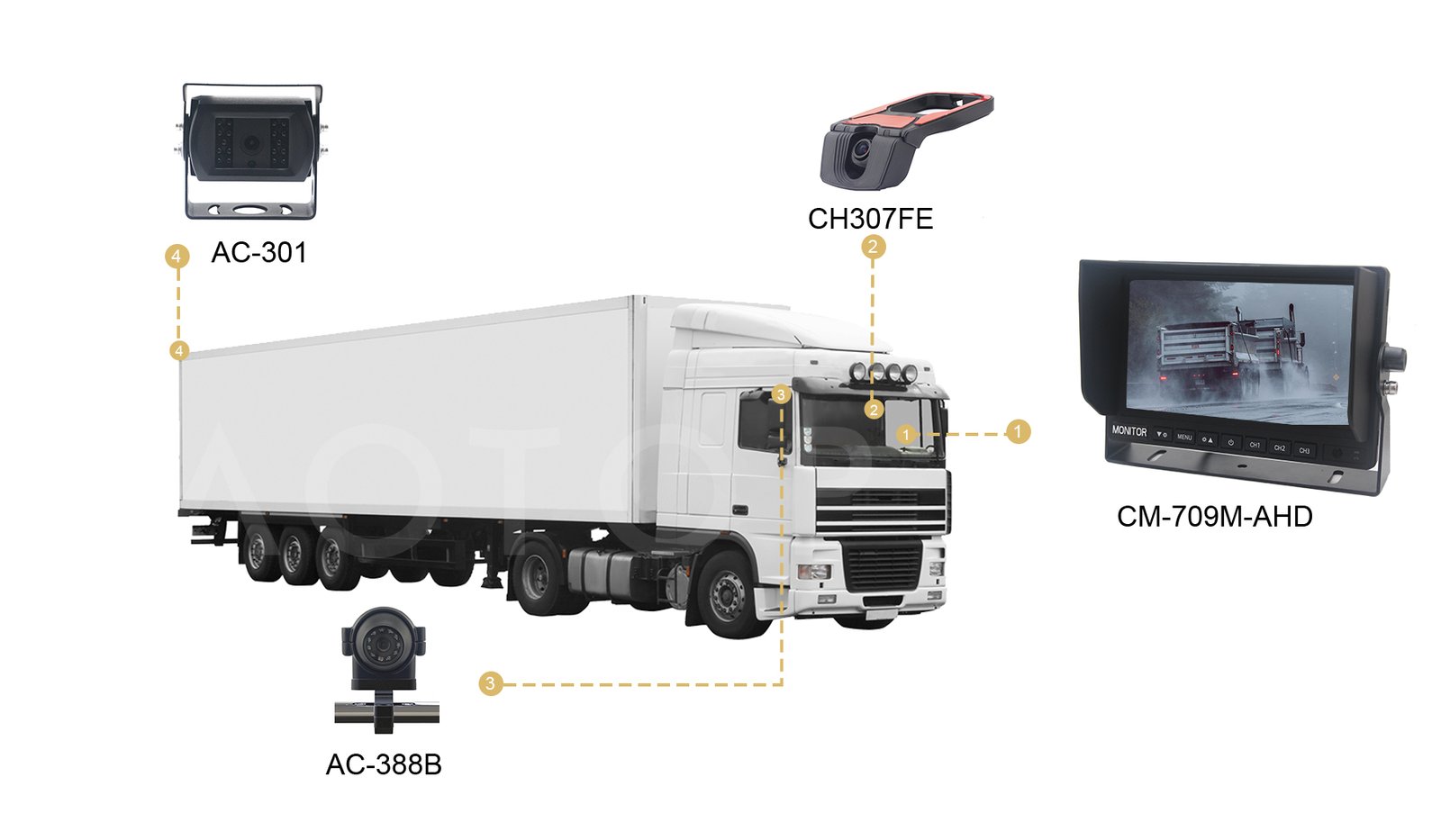

Product Applications
AOTOP 7 inch high definition IPS color car monitor can be easily applied to various commercial vehicles and work well with our vehicle HD cameras. It helps drivers see their surrounding clearly and effectively reduce the risk of scratches and accidents.
