10.1 Inch HD 8 Views Video Recording Monitor
AOTOP 10.1 inch HD 8 views video recording monitor, can be effectively improve the safety of buses operations. Supports 8CH AHD video signal input, can connect to 8 1080P vehicle cameras, and can display multiple perspectives in real time, ensuring that the drivers has full control over the internal & external conditions of the vehicle. DVR recording function, built-in 256GB storage SD card, can recorder 8CH camera video images in real time. Supports multi-language switching and is easy to operate.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

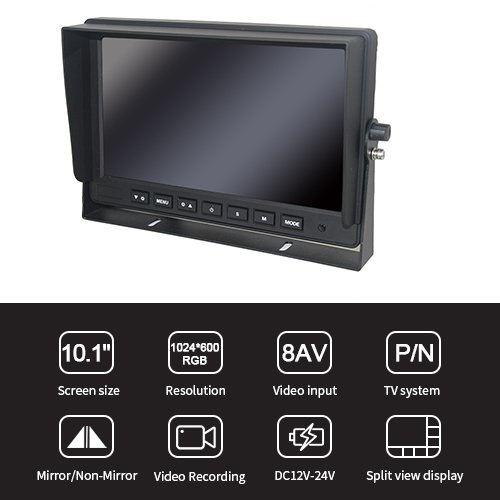

Features
- 1024*RGB*600 HD Resolution (IPS LCD Digital Screen)
- 8CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 6 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- Full Display & 2/3/4/5/6/8 Split View Mode
- 1CH Audio Signal Input (High Quality Speaker)
- Max. 256GB Memory Card (8CH DVR HD Loop Recorder)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO Adaptation PAL / NTSC System
| Model | CM-1010HQ8 |
| Screen Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 BOE |
| Luminance | LED, Luminance 400 cd/㎡ |
| Contrast | 500:1 |
| Frame Rate | 1080P PAL 25fps / 1080P NTSC 30fps |
| Viewing Angle | Up 85°, Down 85°, Left 85°, Right 85° |
| Working Temperature | -20ºC~+70ºC |
| Working Humidity | 85%RH |
| Storage Temperature | -30ºC~+85ºC |
| Power Supply | DC 12-24V |
| Boot Time | 5s |
| Current Consumption | TYPE: DC12V/1.6A (8CH) |
| OSD Control |
Recording Playback, Recording Setting, Display Setting, System Setting |
| Power Consumption | ＜9W (Not Include Camera) |
| Signal Input |
8CH 1080P / 960P/ 720P / 960H / D1(CVBS) Input, 1CH Audio Input, Compatible with CVBS and AHD Signals, Compatible with PAL and NTSC Systems |
| Video Compression Format | H.264 |
| Recording Resolution | 1920*1080 |
| Recording Playback | 4CH/8CH at the Same Time, or Single Channel Playback |
| Recording File Format | MP4 |
| Recording File | 51M/5min (1080P, 8CH) |
| Language | Simplified Chinese, English (Can Add Multiple Languages) |
| Image Display | Multiple Images Display Switchable |
| Trigger Control | 6CH Trigger Control, with Parking Guide Line |
| System | PAL / NTSC Automatically |
| Shockproof Level | 4G |
| Speaker | Support (Optional) |
| Warranty | 2 Years |
| Certification | E-Mark, UKCA, E24, CE, FCC |

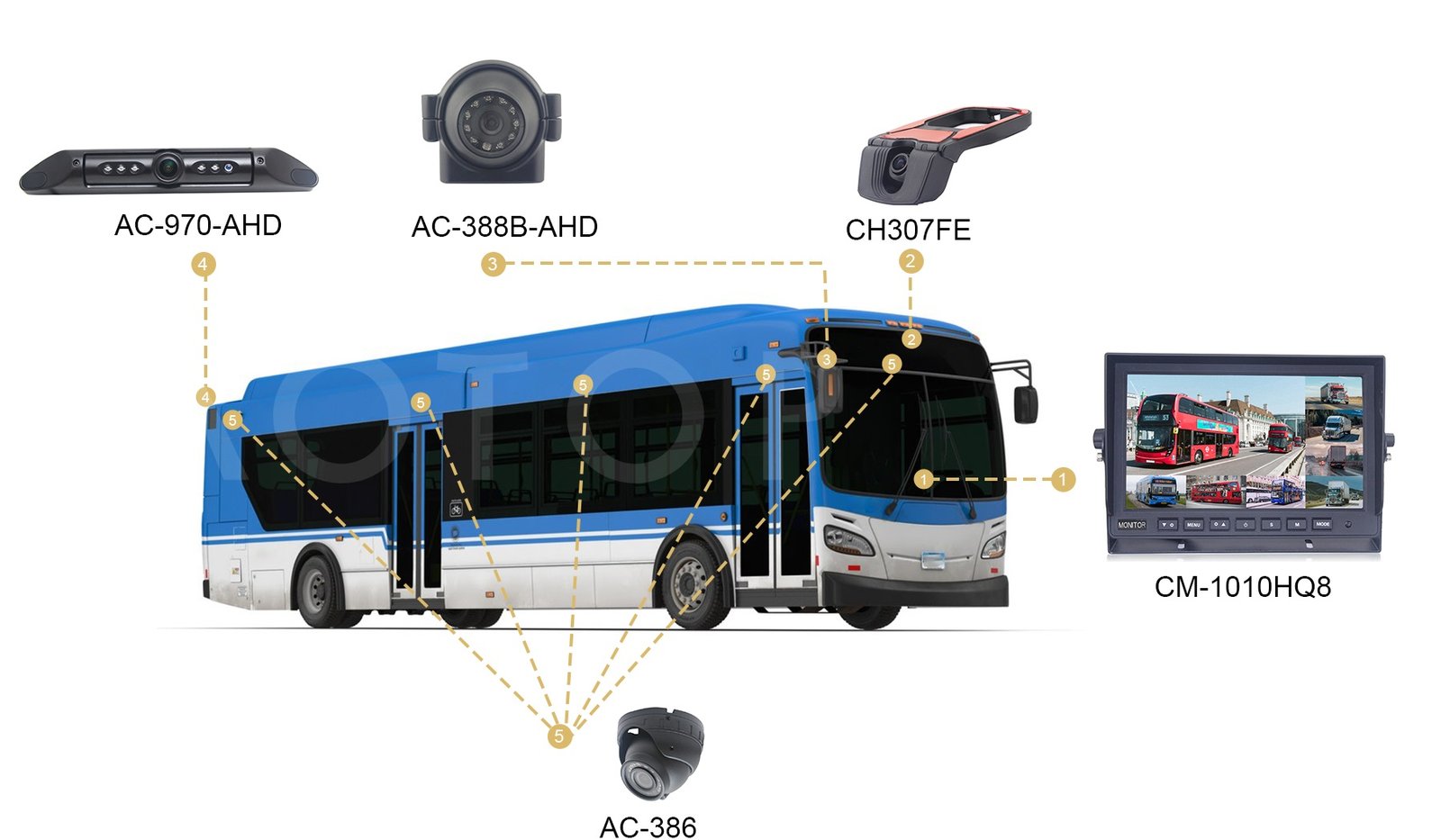

Product Applications
AOTOP 10.1 inch HD 8 views video recording monitor can be easily applied to various public buses vehicle and work well with our HD vehicle cameras. It can helps drivers has full control over the internal & external conditions of the vehicle in real-time, eliminating blind spots around the vehicle and reducing the risks of scratches and other accidents. Built-in DVR video recording function can providing important video evidence in the event of an accident, facilitates incident review and liability determination.
