7 Inch HD LCD Vehicle DVR Recording Monitor
AOTOP 7 inch HD IPS LCD vehicle DVR recording monitor support 2CH HD camera inputs, allowing drivers to view two key perspectives at the same time while driving. This help reduce the chance of scratches and other accidents. Support mirror switching & multiple language settings. The monitor also meets customer needs for clear and convenient video monitoring.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

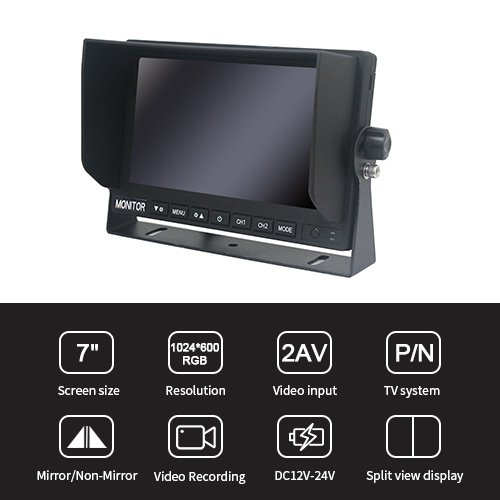

Features
- 1024*RGB*600 HD IPS LCD Screen
- 2CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 1CH Audio Signal Input (High Quality Speaker)
- Full Display & Dual Split View Mode
- Available Max. 128GB Memory Card (2CH DVR HD Video Recording)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO Adaption PAL / NTSC System
| Model | CM-709HQ2 |

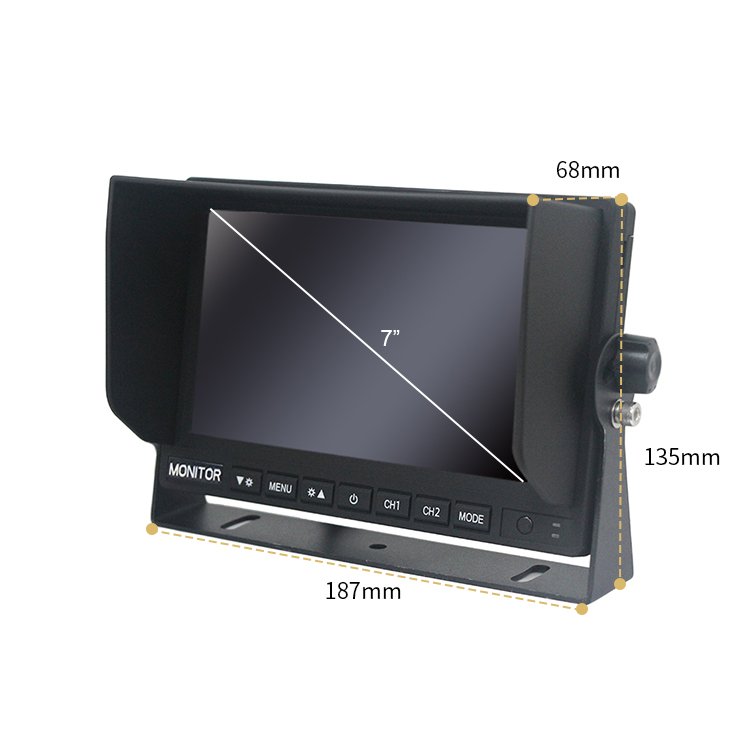

| Screen Size & Type | 7 Inch HD Color IPS Screen |
| Screen Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Brightness | LED, 500 cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up 85°, Down 85°, Left 85°, Right 85° |
| Video Input |
Support 2CH 1080P/720P/960P/CVBS Mixed Video Signal Input |
| OSD Menu |
Image Setting, Image Signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Recording Setting, Parking Guide Line On/Off, Reset |
| Parking Guide Line |
Each Channel is Controlled Separately (Off As Default) |
| Mirror / Normal Image |
Each Channel is Controlled Separately (Mirror As Default) |
| Reversing Delay |
Each Channel is Controlled Separately (3S As Default) |
| Compressed Format | H.264 |
| Language | English / Chinese |
| Image Display | Single / Double Split Image Display |
| Trigger | 1CH |
| System | PAL / NTSC (Automatically) |
| Power Supply | DC 12-24V |
| Currents | 12V/1.1A |
| Operating Power | 13.2W |
| Boot Time | About 2 sec. |
| Operating Temperature | -20°C~+70 ºC |
| Operating Humidity | 95%RH |
| Storage Temperature | -30°C~+80 ºC |
| Vibration Rating | 4G |
| Warranty | 2 Years |
| Certification | E-Mark, UKCA, E24, CE, FCC |

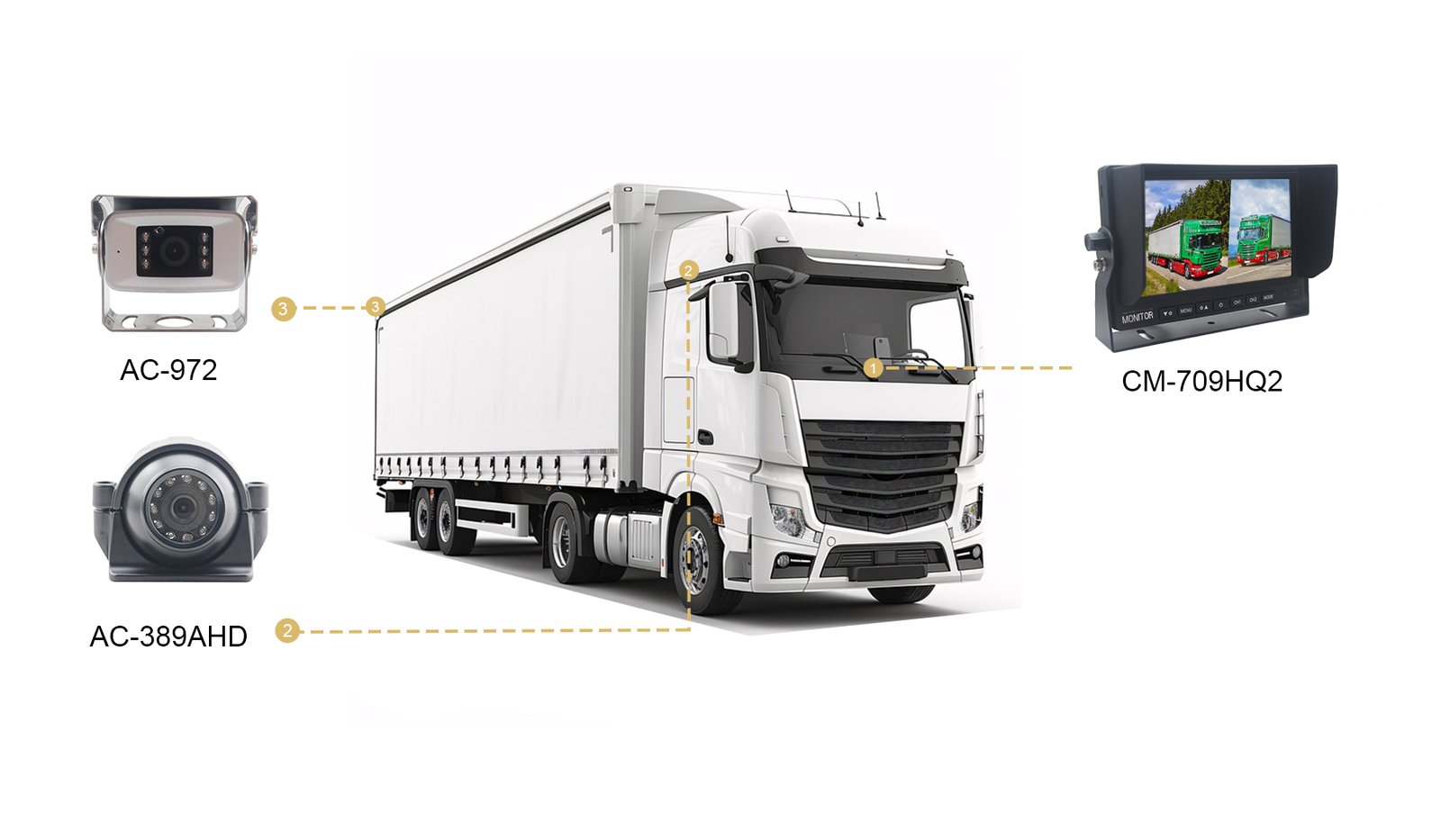

Product Applications
AOTOP 7 inch HD IPS LCD vehicle DVR recording monitor can be easily applied to various commercial vehicles and work well with our HD vehicle cameras. Built-in DVR video recording function can providing important video evidence in the event of an accident, facilitates incident review and liability determination.
AOTOP - Industry Leader Manufacturers in Commercial Vehicle Safety Systems
Since 2005, We specialize development in commercial vehicles safety system, committed to improving the road driving safety. With decades of expertise, we offer comprehensive range of innovative safety vision products designed to protect drivers, vehicle and pedestrian. Whether you are upgrading an existing system or to starting a new project, here are six key reasons why AOTOP is your trusted partner！
20 Years Industry Experience
Powerful Manufacturing
Good Quality, All Certificates
Professional Senior R&D Team
Responsive Customer Service
Faster Delivery Time
