7 Inch LCD HD DVR Vehicle Recording Monitor
AOTOP 7 inch LCD HD DVR vehicle recording monitor support 4CH AHD camera video signal input, connects to 4 vehicle cameras to help driver understands the situation around the vehicles at any time, reducing the possibility of blind collision, scratching and other accident. Built-in DVR video recording function can providing important video evidence in the event of an accident, improving the safety and management efficiency
of the fleet.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

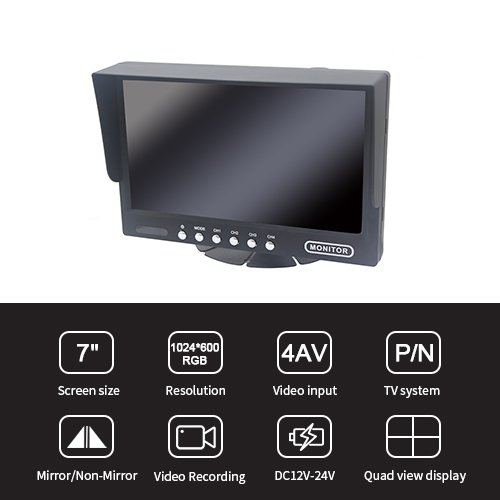

Features
- 1024*RGB*600 HD Resolution (IPS LCD Screen)
- 4CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 4 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (High Quality Speaker)
- Full Display & 2/3/4 Split View Mode
- Built-in 256GB Memory Card (4CH DVR HD Loop Video Recording)

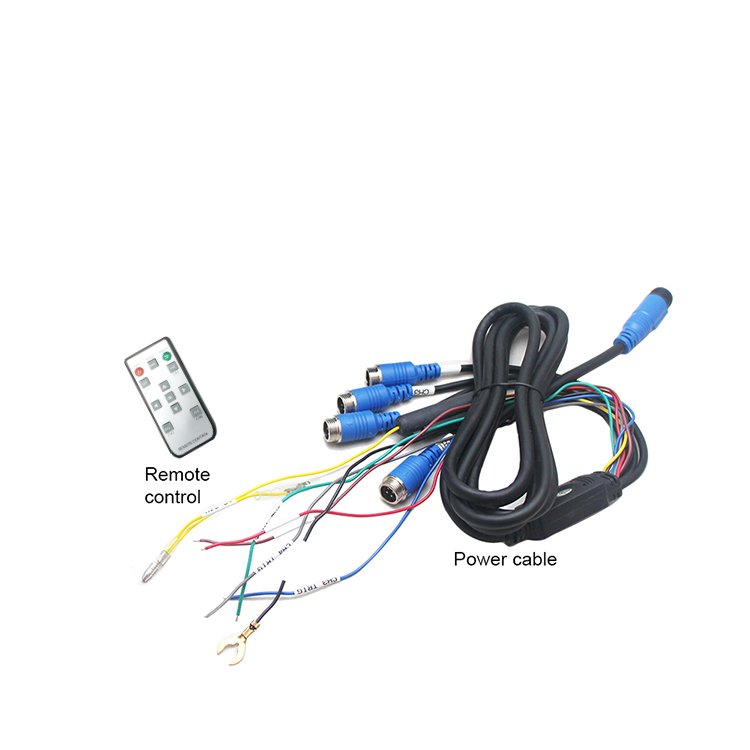

- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO Adaption PAL / NTSC TV System
| Model | CM-700HQ |

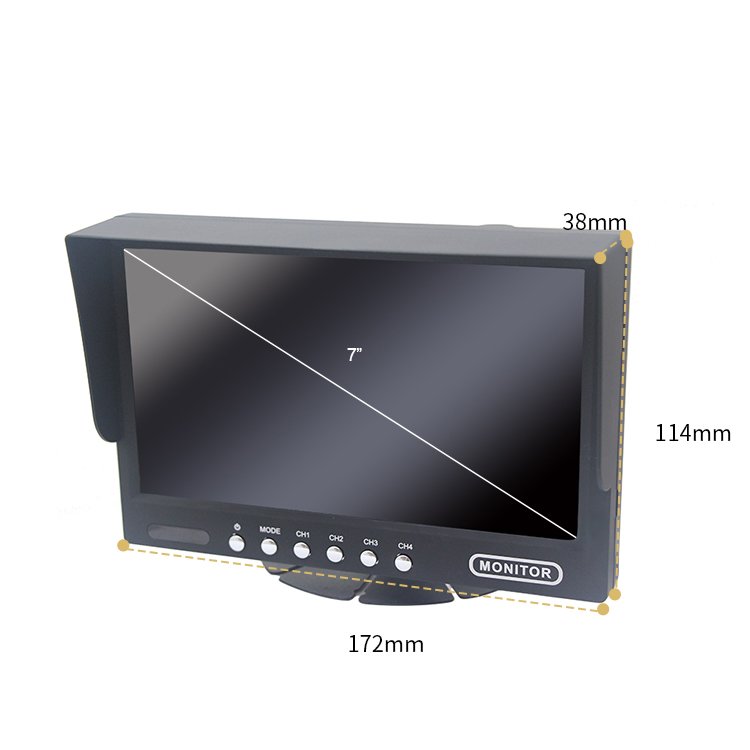

| Screen Type and Size | 7 Inch IPS LCD Screen |
| Aspect Ratio | 16:9 |
| Aspect Ratio | 1024*R.G.B*600 |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up 85°, Down 85°, Left 85°, Right 85° |
| Video Input |
Support 4CH AHD 1080P/720P/960P/CVBS Mixed Video Signal Input |
| Audio Input | 1CH Camera Audio Input (Available Speaker) |
| OSD Menu |
Image Setting, Image Signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Recording Settings, Parking Guide Line On/Off, Reset |
| DVR Function |
Built-in 256GB Memory Card 4CH Camera Image HD Recording |
| Recording Replay |
Support Single Image Real Time Replay (No Audio When Playback) |
| Parking Guide Line |
Each Channel is Controlled Separately (Off As Default) |
| Mirror / Normal Image |
Each Channel is Controlled Separately (Mirror As Default) |
| Split View Mode | Single / Double / Triple / Quad View Image Display |
| Trigger | 4CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V / 1.1A |
| Operating Power | 13.2W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Vibration Rating | 4G |
| Operating Temperature | -20°C~+70°C (RH0%-RH90%) |
| Storage Temperature | -30°C~+80°C (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | E-Mark, UKCA, E24, CE, FCC |

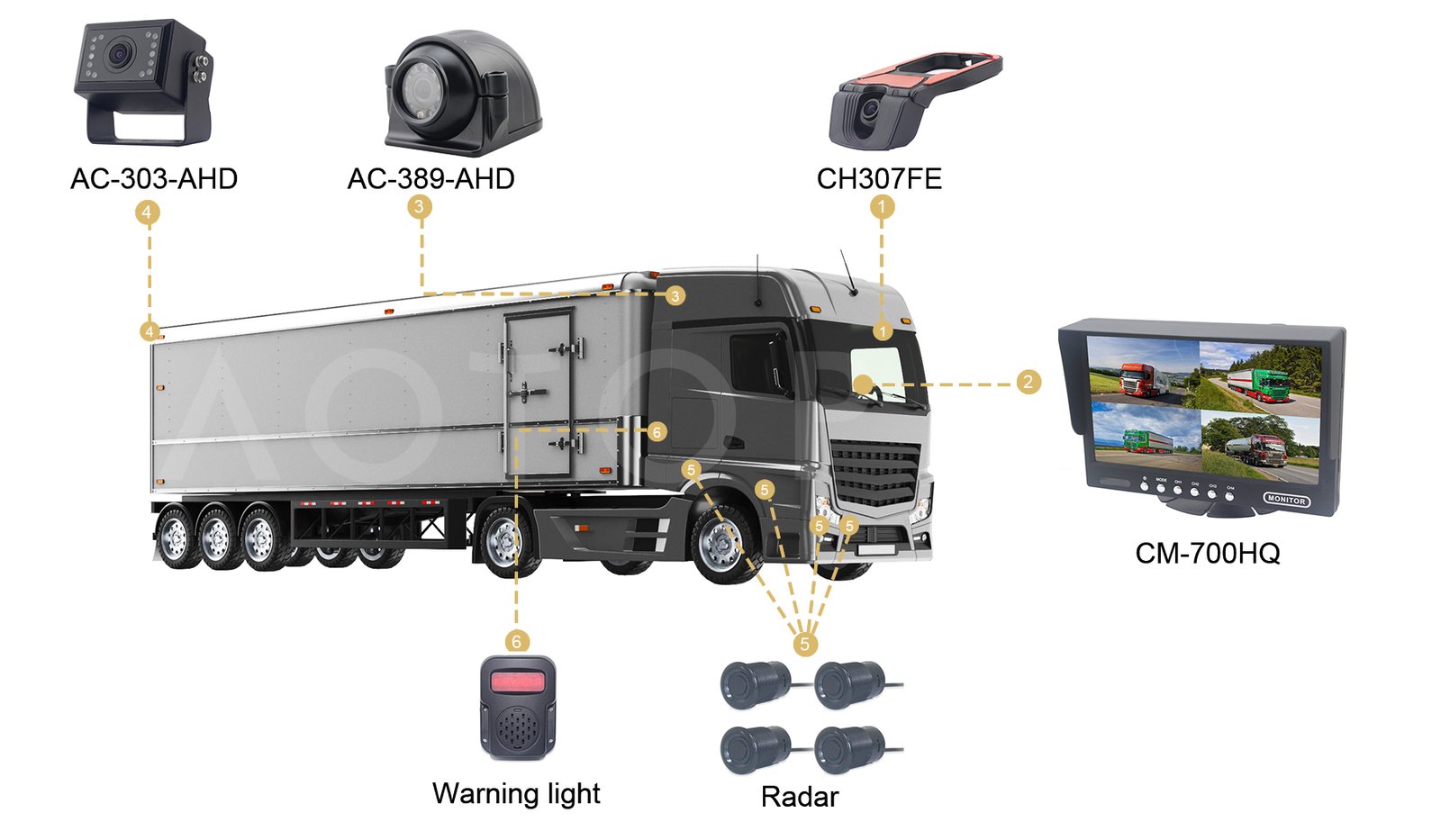

Product Applications
AOTOP 7 inch LCD HD DVR vehicle recording monitor can be easily applied to various commercial vehicles and work well with our HD vehicle cameras. It helps drivers to see the surroundings of the vehicle in real-time, eliminating blind spots around the vehicle and reducing the risks of scratches and other accidents. Built-in DVR video recording function can providing important video evidence in the event of an accident, facilitates incident review and liability determination.
