Front View Camera
AOTOP Offers the Best Front View Camera for Vehicle Safety！
ALL FRONT VIEW CAMERA
Get A Clear View Straight Ahead
AOTOP front view cameras are installed on the front windshield of the vehicle, providing high definition images of the road ahead, realize ADAS and BSD functions by connecting to the car monitor or smart rearview mirror monitor system, and recording important driving images for review. AOTOP develops and produces in-vehicle front camera for buses, cars and other safety applications, with extremely competitive prices and extremely durable quality. Please contact us at sales@aotop.com!

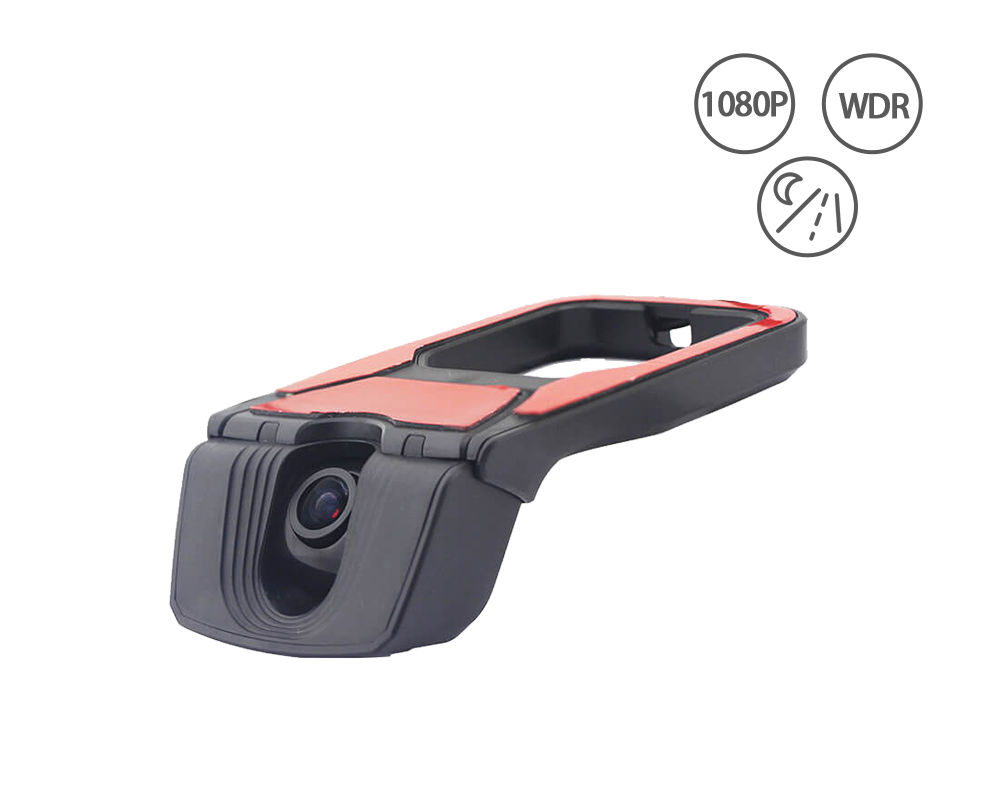

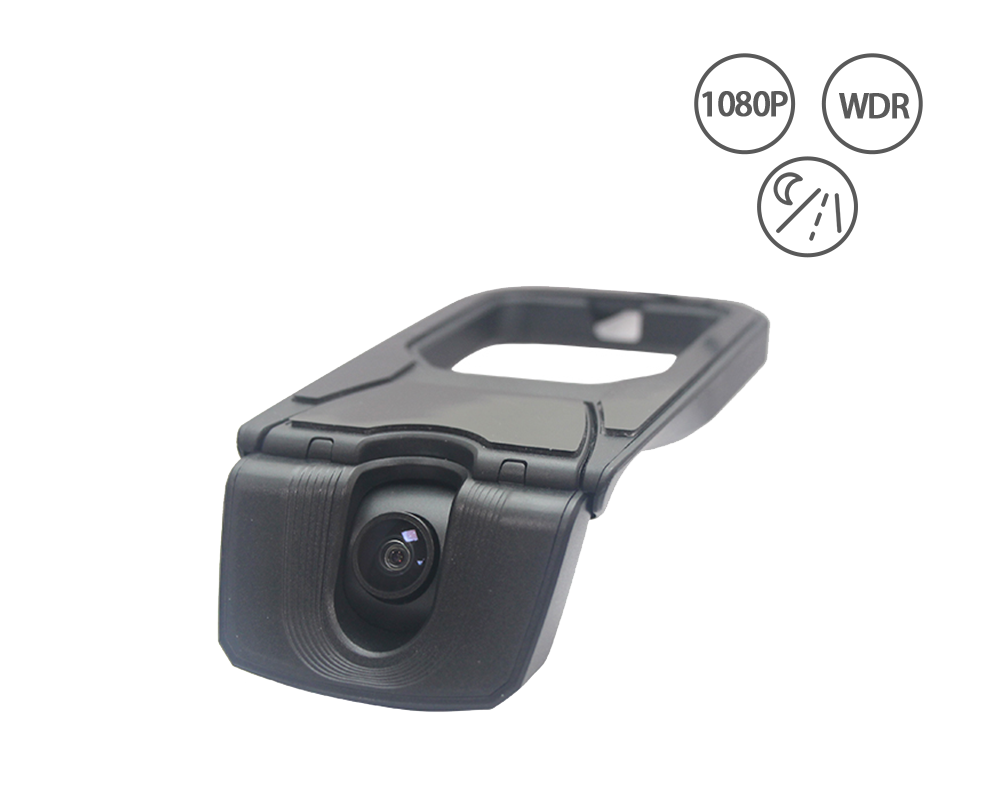

| » Model | CH307FE |
|---|
Features
- AHD 1080P Resolution
- 120° Wide Angle
- Built-in Top Starlight Night Vision
(with Light Sensor, AUTO Night Vision) - Optional PAL & NTSC TV System
- Wide Dynamic Range Technology
- Aviation 4PIN Female Connector
Customization Options
- Angle View
- Connector Type
- LOGO / Label
What is Front View Camera
- It is a camera installed at the front of a vehicle. It captures real-time video footage of the area ahead, displaying it on mirror monitor inside the vehicle to assist the driver.
What is the Purpose of Front View Camera
- The main purpose of camera is to enhance visibility at the front of the vehicle, helping to identify obstacles, pedestrians, and other vehicles.
How is the Front View Camera Installed
- Installing Camera typically involves mounting the camera on the vehicle’s front. The camera is then connected to a display monitor inside the vehicle through cables. It may require professional installation to ensure optimal placement and functionality, and it’s powered by the vehicle’s electrical system, activating when the vehicle is in use or specifically when moving forward.
Camera Bracket Installation Instruction

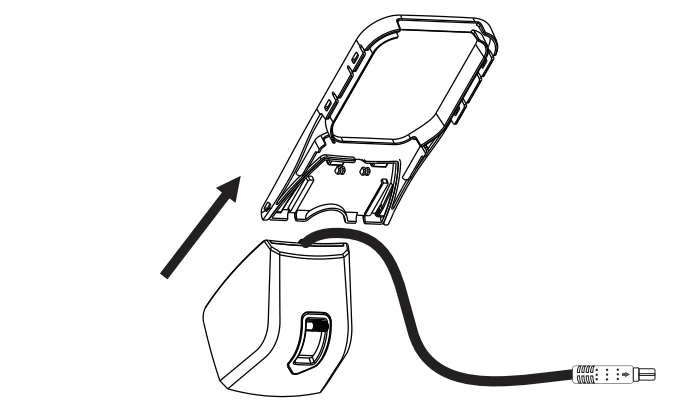

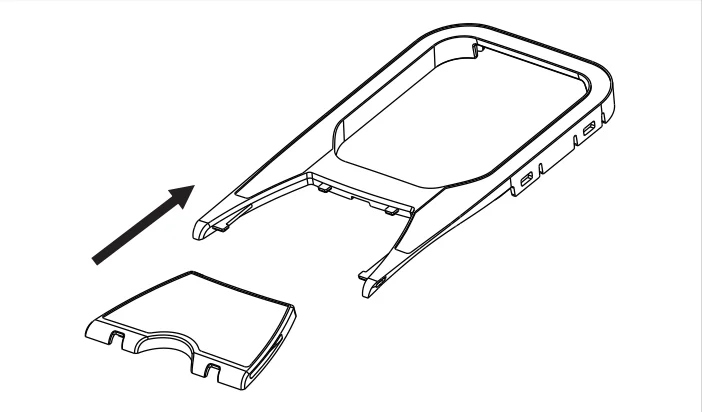

- Ⅰ. Insert the T-shaped base onto the down cover of the rectangle-loop.
- Ⅱ. Tear the sticker of the T-shaped base and rectangle loop, and stick it onto a suitable installation place.
- Ⅲ. Insert CH307FE (Front facing starlight night vision camera module) into T-shaped base.

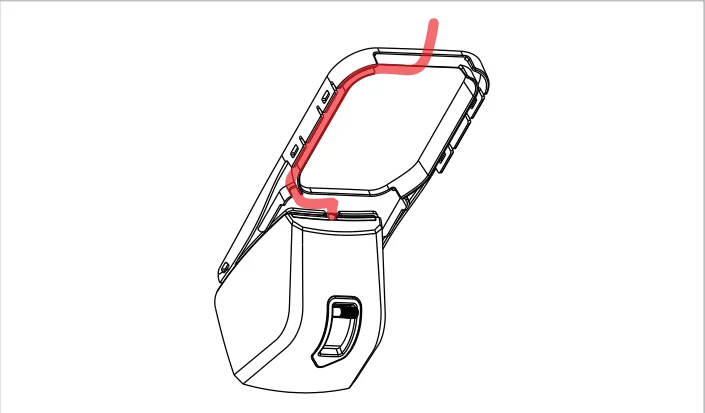

- Ⅳ. Place the CH307FE wire harness along the down cover of the rectangle-loop.

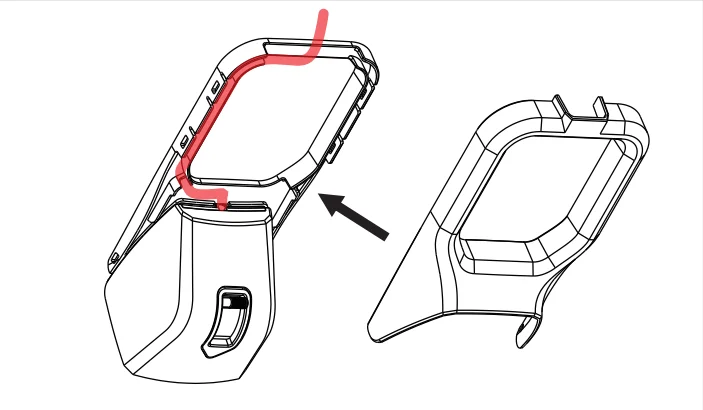

- Ⅴ. Note: When feeding the wire through the rectangle loop, make sure it follows the designated channel as this will prevent the cover from fitting correctly and may cause damage to the wire.
- Ⅵ. Once the wire is correctly fitted click into place the finishing cover.
- Ⅶ. Try to adjust to a suitable view angle by pushing the regulating stem.

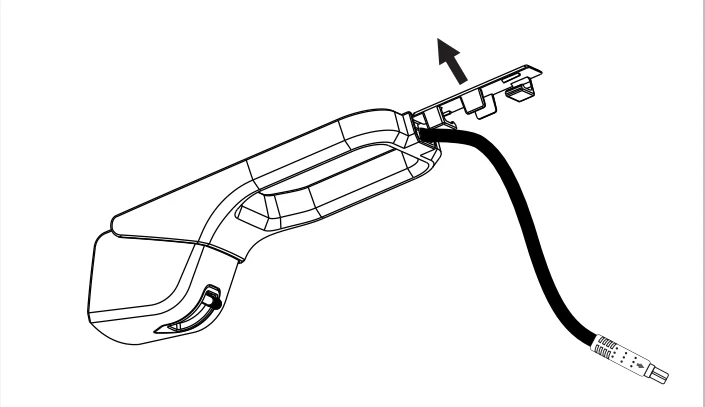

- Ⅷ. Make the slot of the strip bar align with the module, and stick it firmly.

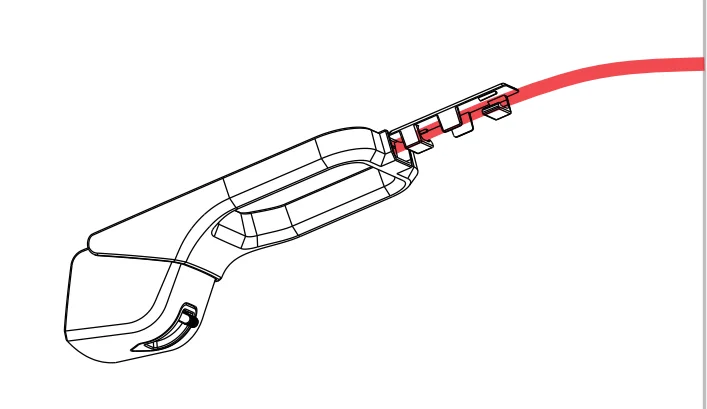

- Ⅸ.Place the wire harness of CH307FE into the slot of the strip bar.

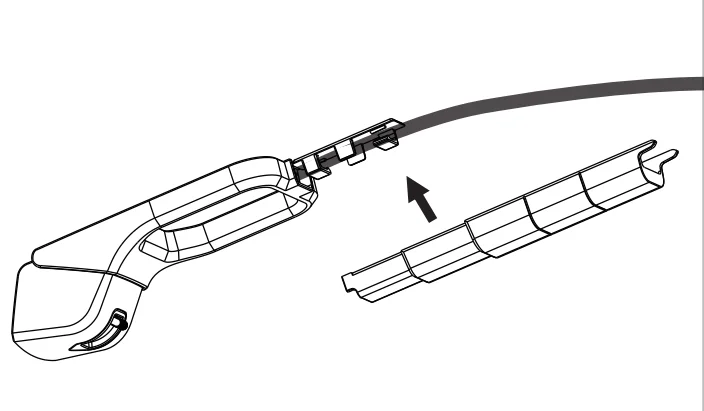

- Ⅹ. Click to place the strip bar into its slot.

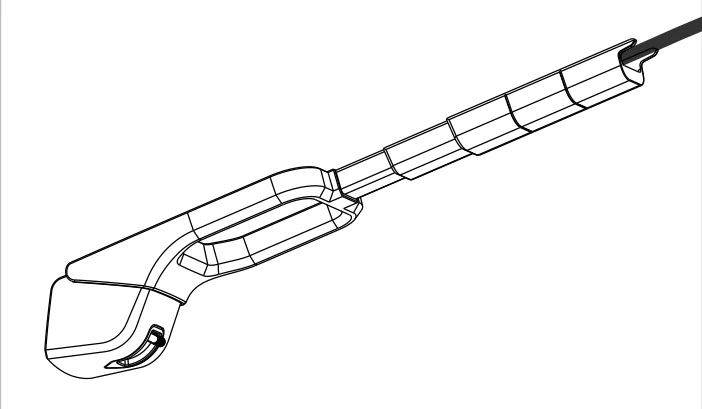

- Ⅺ. Assembling finished.

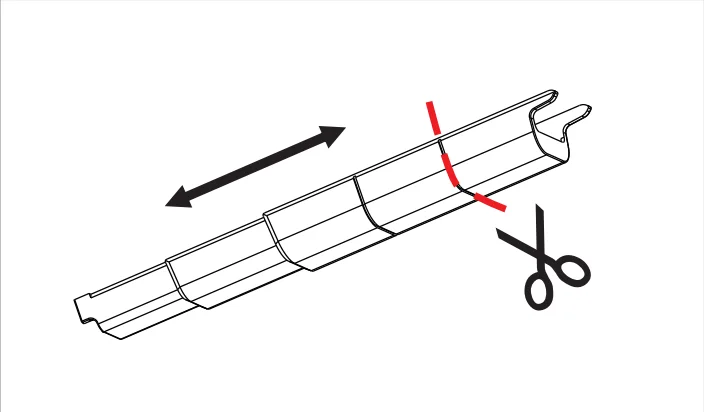

- Ⅻ. Attention: Recording to actual car model, it is able to adjust the length of the shell of the strip bar or tailor the shell of the strip bar and at the cutting position.
