1080P AHD Night Vision Rear View Camera
AOTOP offers the best vehicle rear view camera, CVBS / high definition 720P 1080P AHD resolution optional. Featuring sturdy & durable, IP69K waterproof, night vision, wide angle etc. Visualization of blind spots, assisted safety reversing. Support OEM & ODM customization.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

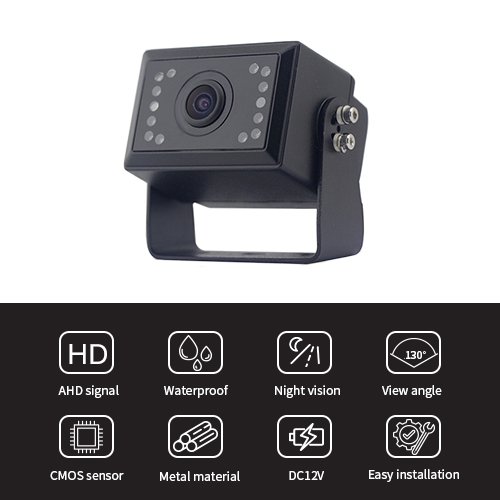

Features
- CVBS / 720P 1080P AHD Resolution Optional
- SONY CCD / CMOS Image Sensor
- IP69K Waterproof Rated
- 130° Wide Angle
- 12pcs IR LED Night Lights (Light Sensor AUTO ON/OFF)
- PAL & NTSC TV System
- Aviation 4PIN Female Connector
| Model | AC-303 |
| Image Sensor | CMOS |
| Effective Pixels | 1920(H) * 1080(V) |
| Resolution | 1080P |
| 1080P |
HD Night Vision 12pcs 0.1Lux IR LED Night Light |
| Night Vision Distance | 8-10M |
| Angle View | 130° |
| Waterproof Level | IP69K |
| Shockproof Level | 4G |
| Housing Material | Aluminium Alloy |
| Connection Plug (Connector) | Locking Aviation 4PIN Female |
| TV System | PAL / NTSC (Default "PAL") |
| Mirror & Normal Image | Optional (Default "Mirror") |
| Sunshade Cover Bracket | Optional |
| Microphone | Optional |
| Heating Function | Optional |
| Power Supply | 12V |
| Maximum Current | <250mA |
| Power Consumption | <3W |
| Operating Temperature | -20°C~+70°C (RH0%-RH90%) |
| Storage Temperature | -30°C~+80°C (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | CE, UKCA, E-Mark, RoHS, IP69K |

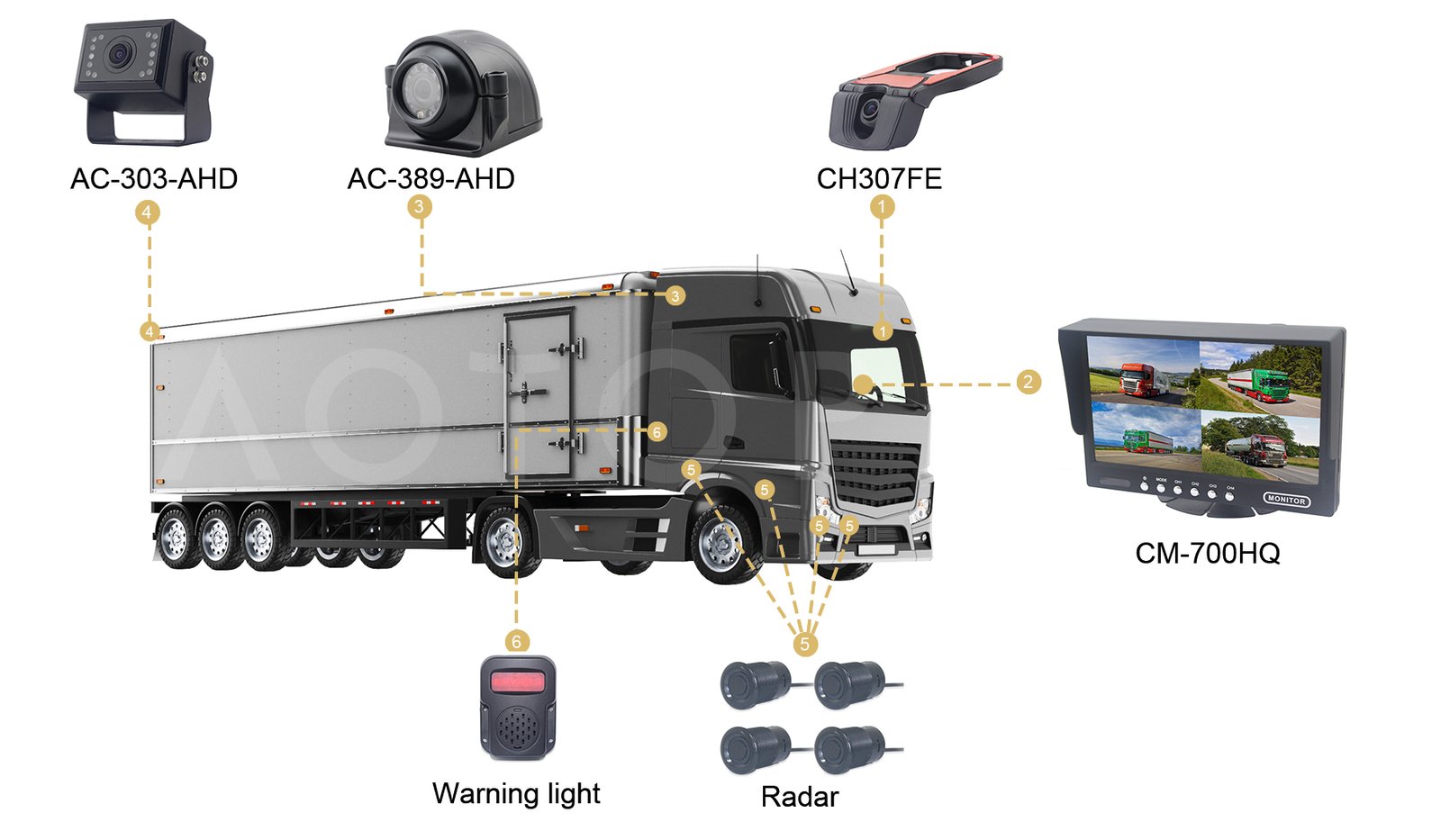

Product Applications
AOTOP 1080P AHD night vision rear view camera can be easily applied to various commercial vehicles and work well with our rear view monitor (safety vision system).
