Magnetic Type Wireless WiFi Rear View Camera
AOTOP magnetic type wireless WiFi rear view camera is comes with the magnetic base and rechargeable battery which is easy to install and use. It supports Android & iOS systems, can easily watch the real-time video of vehicles through WiFi connection. It has night vision, waterproof and anti-vibration function, it is suitable for trucks, trailers, cranes, and other commercial vehicles.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.

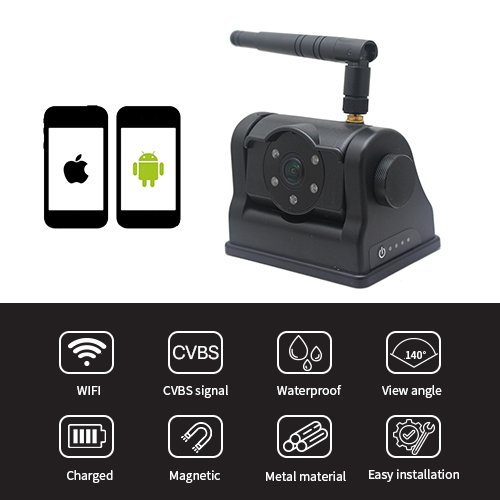

Features
- 640*480 (0.6 Million) Resolution
- 140° Wide Angle View
- CMOS 1/4″ Image Sensor
- Built-in 6400mAh Battery
- IP67 Waterproof Rated
- 4pcs IR LED Night Vision Lights
- Phone Specialized APP Wireless Connection (Android & iOS)
- 25M WiFi Transmits Video Signals (MAX. 20Mb/s)
| Model | AC-307MDW |
| Resolution | 640*480 (0.6 Million) |
| Image Sensor | CMOS 1/4” |
| Viewing Angle | 140° |
| Transmission Distance |
Normal WiFi Distance, 25M in Open Distance |
| System | N/P Automatically |
| Spread Spectrum | FHSS (Adaptive Frequency Hopping) |
| Transmission Bandwidth | 20Mbps (Max) |
| Battery Capacity | 6400mAh |
| Battery Level Display | Yes, 4 LED lights |
| Battery Charging Time | DC5.5 12-24V/6H |
| Working Time |
Daytime / 32H Night Vision / 18H |
| Camera Adjustable Angle | 0-100° |
| Frequency | 2400-2483.5MHZ |
| ON/OFF Mode |
Long Press to ON/OFF Short Press to Show Battery Status |
| Installation Mode | Magnet Base Adsorption Installation |
| Parking Guide Line | ON/OFF Switchable |
| Night Vision | Support |
| SNR | 46.5dB |
| Waterproof Level | IP67 |
| Transmitting Sensitivity | -89 dBm |
| Material | Aluminium Alloy |
| Shockproof Level | 4G |
| Compatible System | iOS / Android |
| Operation Temperature | –20℃~70℃, RH95%MAX |
| Storage Temperature | –30℃~85℃, RH95%MAX |
| Attachment |
DC5.5 Male Power Cable, 5DB Antenna, Car Charger |

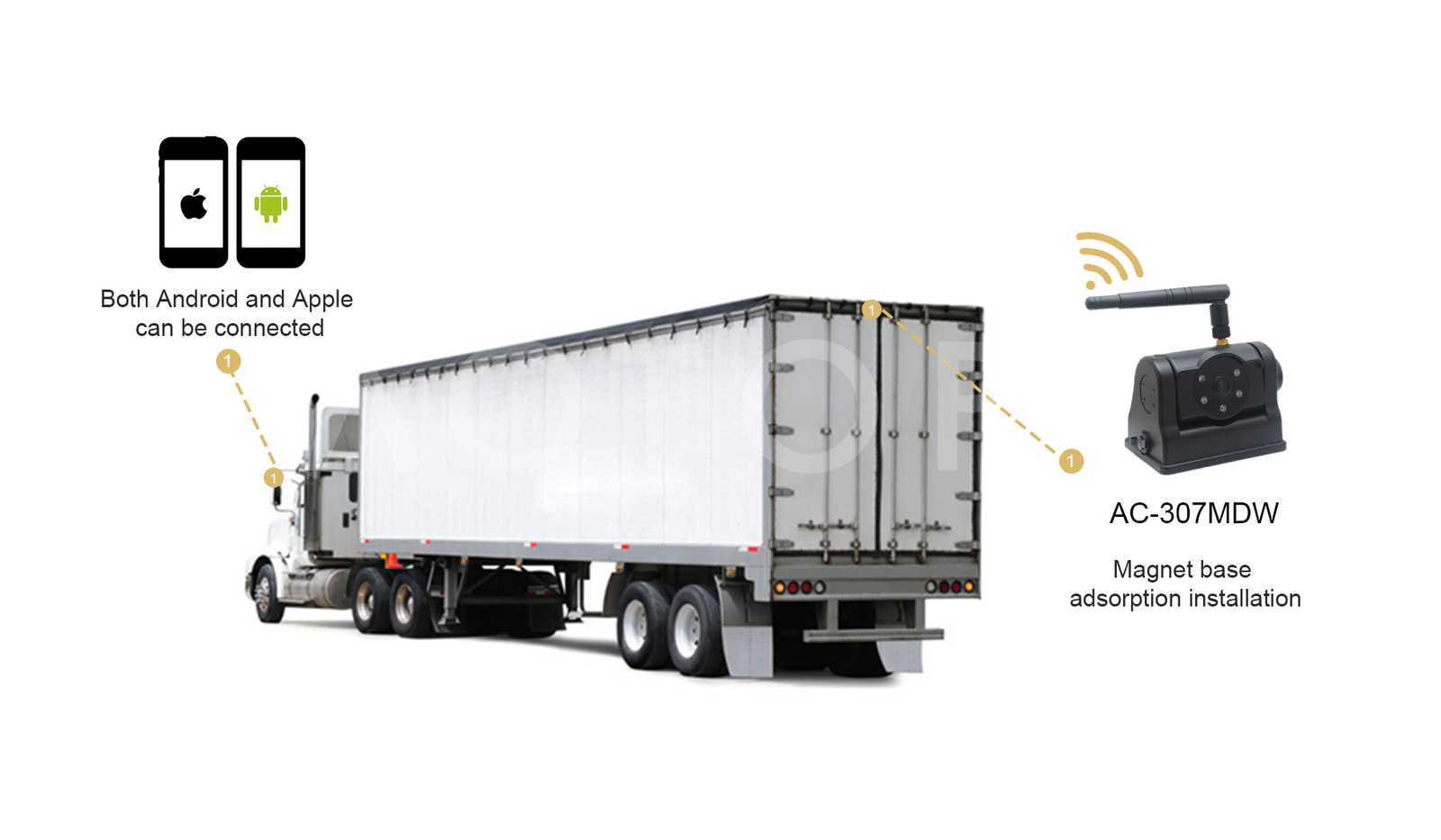

Product Applications
AOTOP magnetic type wireless WiFi rear view camera with built-in rechargeable battery can be applied to various vehicles by easy installation without running long cables. It supports both Android and iOS iPhone.
