AHD Monitor
AOTOP Offers Various of the Best AHD Monitors for Vehicle Road Safety！
ALL AHD MONITORS
High Definition Video Picture Display, Compatible with PAL / NTSC / CVBS
Our AHD monitor are suitable for all commercial vehicle types and are designed to be shock-resistant, to help drivers better observe the environment around vehicles and reduce blind spots. The 1080p high resolution, anti-glare displays provide clear visibility at all times – both in bright light and in darkness. With sizes ranging from 5″ to 10.1″, support connection multi-channel video signal AHD cameras. Additionally, we also offer waterproof monitor for open cabins. If you are looking for reliable China vehicle monitor manufacturer & supplier, or want to purchase AHD monitor in bulk, please contact us at sales@aotop.com!

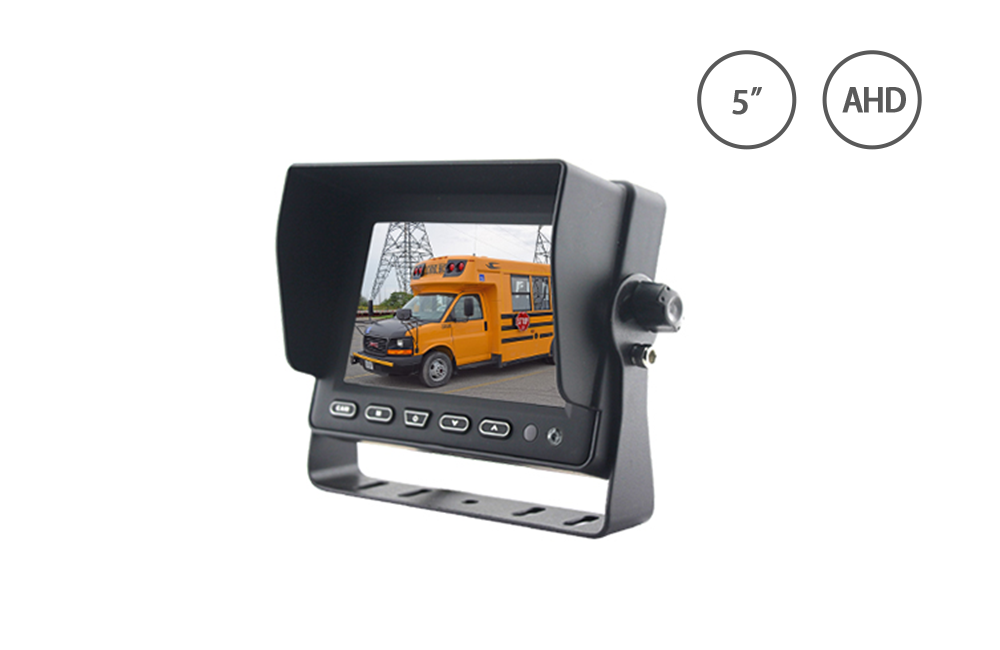

| » Model | CM-500MAHD |
|---|
Features
- 3CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching; Image Flip;
- AUTO Adaptation PAL / NTSC System
Picture Quality
- 800*RGB*480 Resolution
- IPS LCD Digital Screen
- 500 cd/㎡ Brightness
- 16:9 Screen Ratio
- 500:1 Contrast
Power Consumption
- Power Supply: DC 12-24V
- Currents: 12V/<1A
- Operating Power: <10W
Customization Options
- Mounting Bracket
- Packaging Color Box
- LOGO / Label
* MOQ Requirements
*CM-500M (CVBS)
- 800*480 Resolution (TFT LCD Digital Screen)
- 3CH x CVBS Cameras Video Signal Input
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (Speaker)
- 1CH External Audio & Video Input (3.5mm Jack Port)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO PAL / NTSC TV System

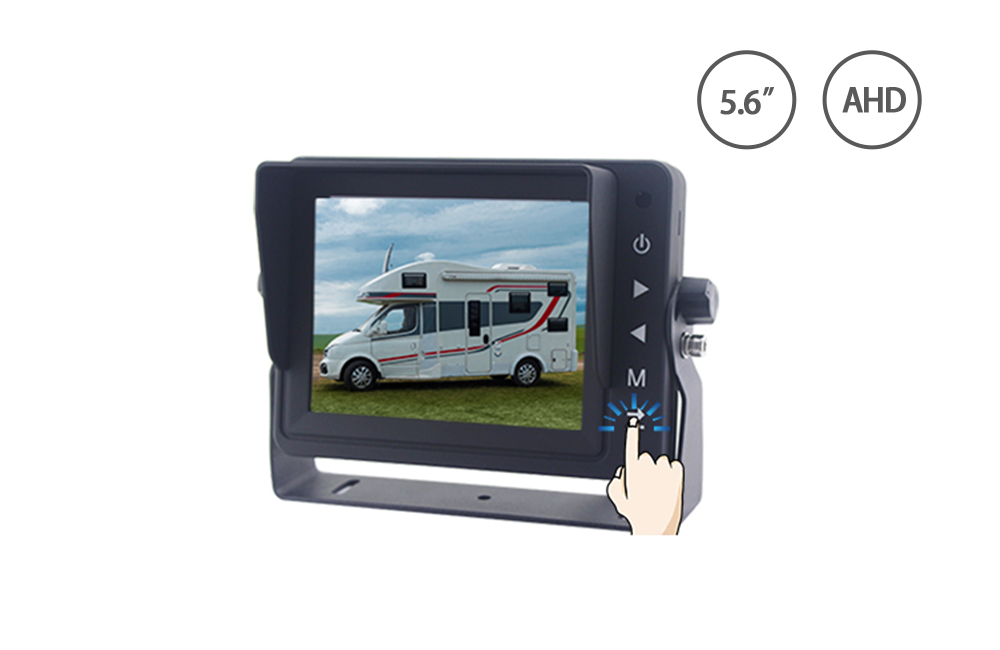

| » Model | CM-560MAHD |
|---|
Features
- 3CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS;
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching; Image Flip;
- AUTO PAL / NTSC TV System
Picture Quality
- 585*RGB*480 Resolution
- TFT LCD Digital Screen
- 300 cd/㎡ Brightness
- 4:3 Screen Ratio
Power Consumption
- Power Supply: DC 12-24V
- Currents: 12V/<1A
- Operating Power: <10W
Customization Options
- Mounting Bracket
- Packaging Color Box
- LOGO / Label
* MOQ Requirements
*CM-560M (CVBS)
- 3CH x CVBS Camera Video Signal Input
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching; Image Flip;
- AUTO PAL / NTSC TV System

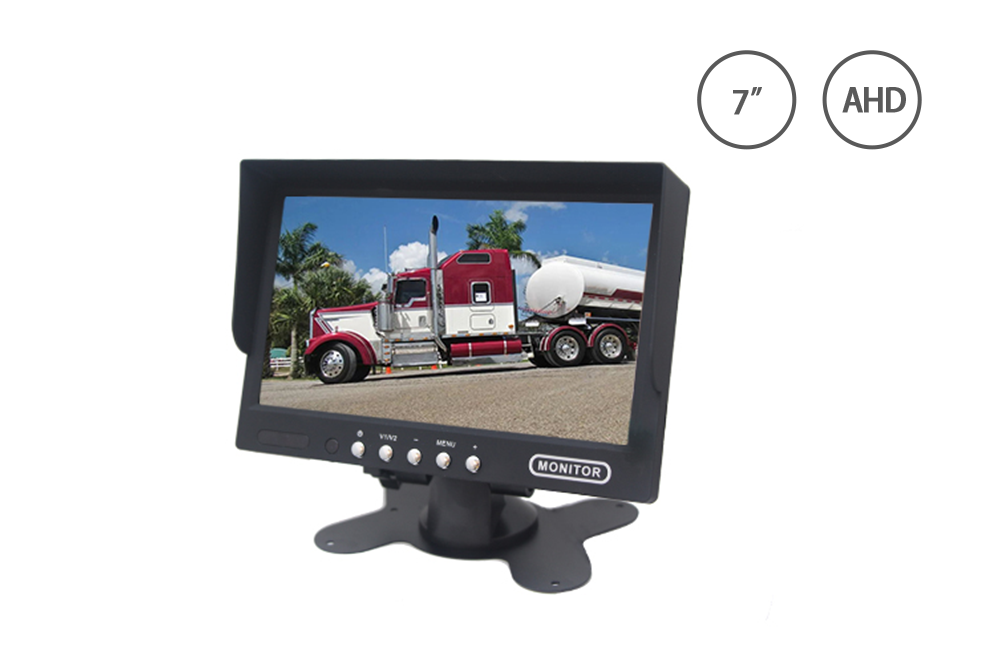

| » Model | CM-700MAHD |
|---|
Features
- 3CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching; Image Flip;
- AUTO Adaptation PAL / NTSC System
Picture Quality
- 1024*RGB*600 Resolution
- IPS LCD Digital Screen
- 500 cd/㎡ Brightness
- 16:9 Screen Ratio
- 500:1 Contrast
Power Consumption
- Power Supply: DC 12-24V
- Currents: 12V/<1A
- Operating Power: 13.2W
Customization Options
- Mounting Braket
- Packaging Color Box
- LOGO / Label
* MOQ Requirements
*CM-700M (CVBS)
- 800*480 (TFT LCD Digital Screen)
- 2CH x CVBS Camera Video Signal Input
- 1CH Audio Signal Input (Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO PAL / NTSC TV System

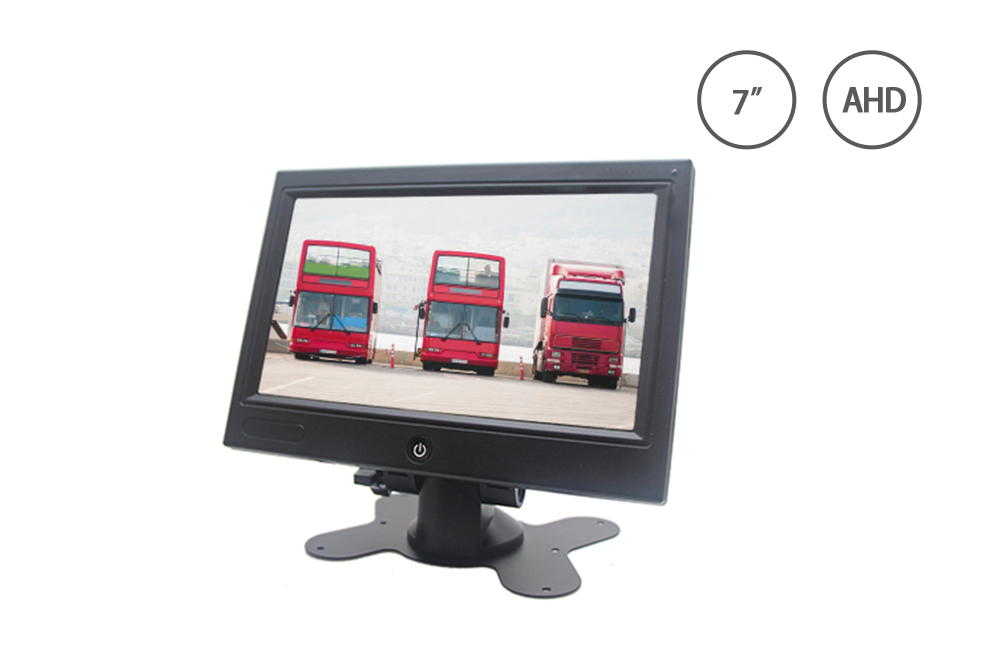

| » Model | CM-701MAHD |
|---|
Features
- 2CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching; Image Flip;
- AUTO Adaptation PAL / NTSC System
Picture Quality
- 1024*RGB*600 Resolution
- IPS LCD Digital Screen
- 500 cd/㎡ Brightness
- 16:9 Screen Ratio
- 500:1 Contrast
Power Consumption
- Power Supply: DC 12-24V
- Currents: 12V/<1A
- Operating Power: 13.2W
Customization Options
- Mounting Bracket
- Packaging Color Box
- LOGO / Label
* MOQ Requirements
*CM-701M (CVBS)
- 800*480 (TFT LCD Digital Screen)
- 2CH x CVBS Camera Video Signal Input
- 1CH Audio Signal Input (Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO PAL / NTSC TV System

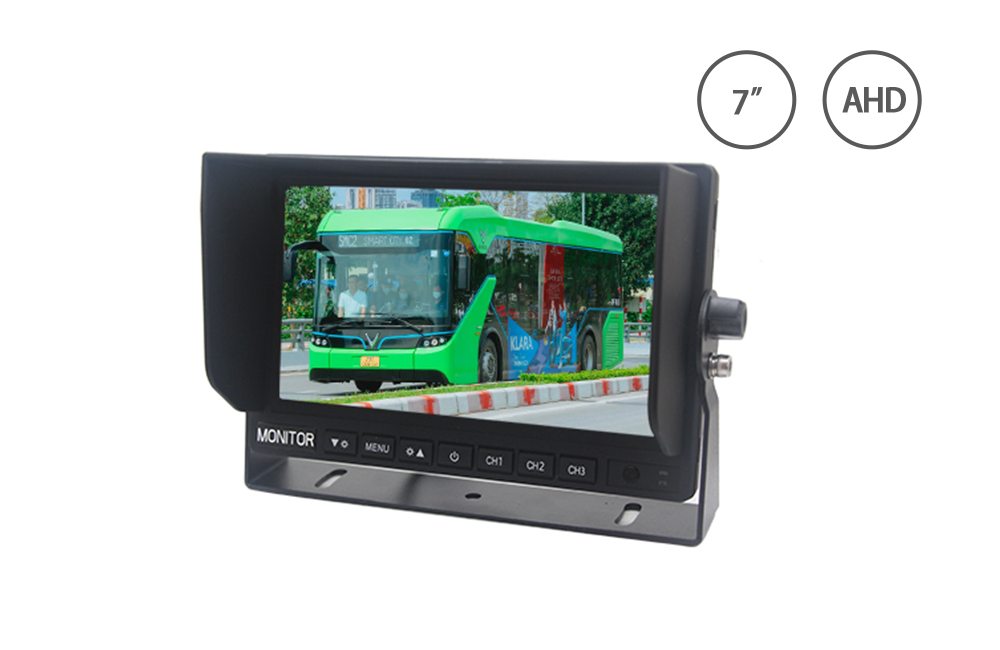

| » Model | CM-709MAHD |
|---|
Features
- 3CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching; Image Flip;
- AUTO Adaptation PAL / NTSC System
Picture Quality
- 1024*RGB*600 Resolution
- IPS LCD Digital Screen
- 650 cd/㎡ Brightness
- 16:9 Screen Ratio
- 800:1 Contrast
Power Consumption
- Power Supply: DC 12-24V
- Currents: 12V/<1A
- Operating Power: <10W
Customization Options
- Mounting Bracket
- Packaging Color Box
- LOGO / Label
* MOQ Requirements
*CM-709M (CVBS)
- 800*480 (TFT LCD Digital Screen)
- 2CH x CVBS Camera Video Signal Input
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO PAL / NTSC TV System

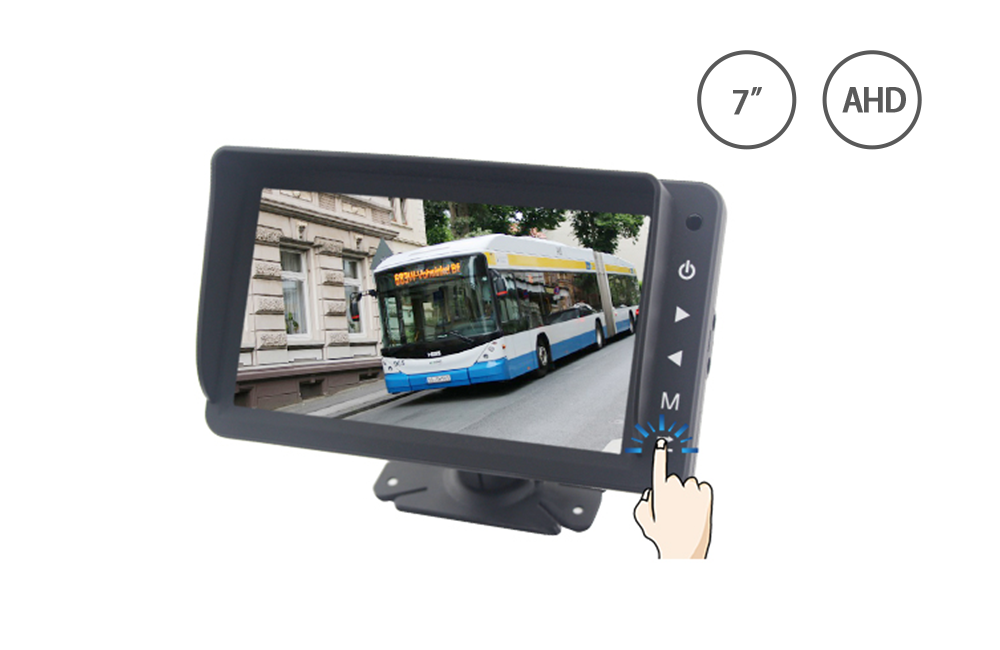

| » Model | CM-718MAHD |
|---|
Features
- 3CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching; Image Flip;
- AUTO Adaptation PAL / NTSC System
Picture Quality
- 1024*RGB*600 Resolution
- IPS LCD Digital Screen
- 500 cd/㎡ Brightness
- 16:9 Screen Ratio
- 500:1 Contrast
Power Consumption
- Power Supply: DC 12-24V
- Currents: 12V/<1A
- Operating Power: <10W
Customization Options
- Mounting Bracket
- Packaging Color Box
- LOGO / Label
* MOQ Requirements
*CM-718M (CVBS)
- 800*480 (TFT LCD Digital Screen)
- 2CH x CVBS Camera Video Signal Input
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO PAL / NTSC TV System
| » Model | CM-708WAHD |
|---|
Features
- IP68 Waterproof & Dustproof, Aluminium Alloy Material Shell
- 3CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching; Image Flip;
- AUTO Adaptation PAL / NTSC System
Picture Quality
- 1024*RGB*600 Resolution
- IPS LCD Digital Screen
- 500 cd/㎡ Brightness
- 16:9 Screen Ratio
- 500:1 Contrast
Power Consumption
- Power Supply: DC 12-24V
- Currents: 12V/<1A
- Operating Power: <10W
Customization Options
- Mounting Bracket
- Packaging Color Box
- LOGO / Label
* MOQ Requirements
*CM-708W (CVBS)
- With Sunshade Cover & U-Bracket & Touch Button
- IP68 Waterproof & Dustproof, Aluminium Alloy Material Shell
- 800*480 TFT LCD Digital Screen, 16:9 Ratio
- 3CH x CVBS Cameras Video Signal Input
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO Adaption PAL / NTSC TV System

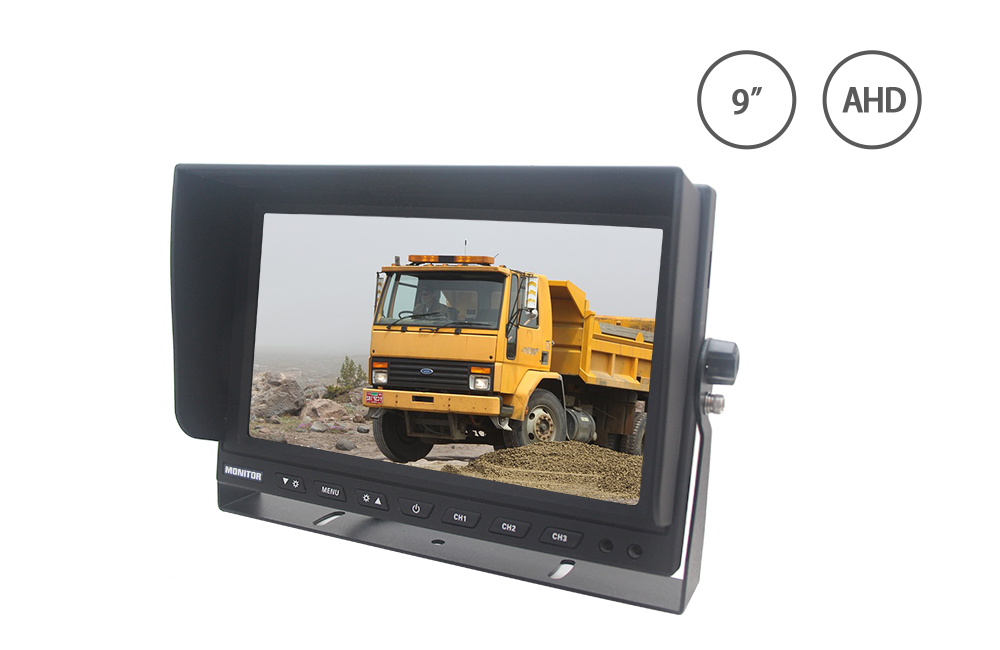

| » Model | CM-900MAHD |
|---|
Features
- 3CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching; Image Flip;
- AUTO Adaptation PAL / NTSC System
Picture Quality
- 1024*RGB*600 Resolution
- IPS LCD Digital Screen
- 500 cd/㎡ Brightness
- 16:9 Screen Ratio
- 500:1 Contrast
Power Consumption
- Power Supply: DC 12-24V
- Currents: 12V/<1A
- Operating Power: <4W
Customization Options
- Mounting Bracket
- Packaging Color Box
- LOGO / Label
* MOQ Requirements
*CM-900M (CVBS)

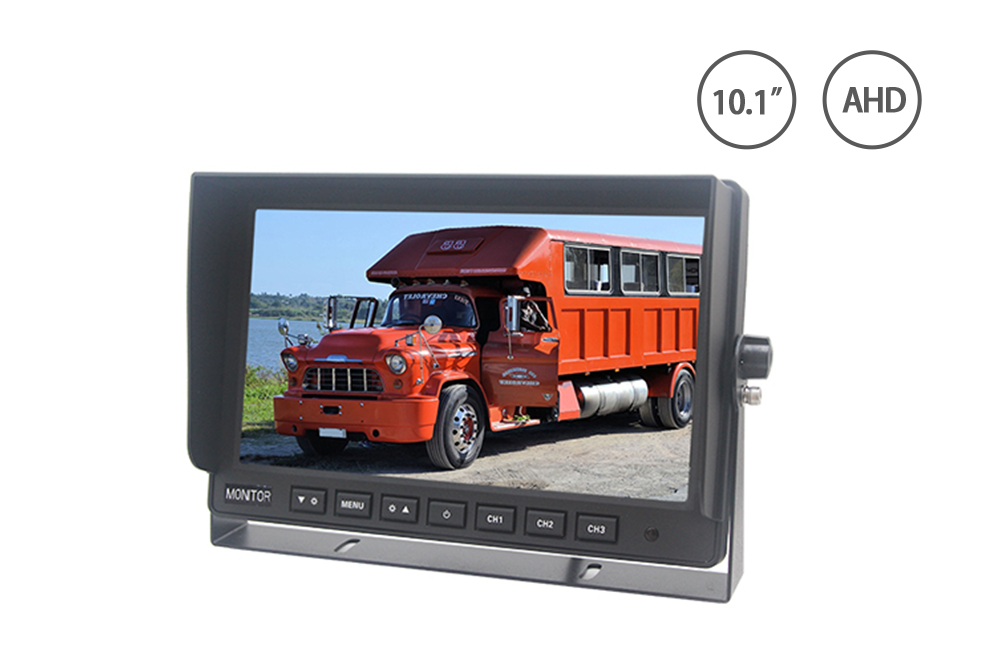

| » Model | CM-1010MAHD |
|---|
Features
- 3CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 3 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 2CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching; Image Flip;
- AUTO Adaptation PAL / NTSC System
Picture Quality
- 1024*RGB*600 Resolution
- IPS LCD Digital Screen
- 400 cd/㎡ Brightness
- 16:9 Screen Ratio
- 500:1 Contrast
Power Consumption
- Power Supply: DC 12-24V
- Currents: 12V/<1A
- Operating Power: <4W
Customization Options
- Mounting Bracket
- Packaging Color Box
- LOGO / Label
* MOQ Requirements
*CM-1010M (CVBS)
- Sunshade Cover & U-Bracket
- 1024*RGB*600 Resolution (IPS LCD Digital Screen)
- 2CH x CVBS Cameras Video Signal Input
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO Adaptation PAL / NTSC System

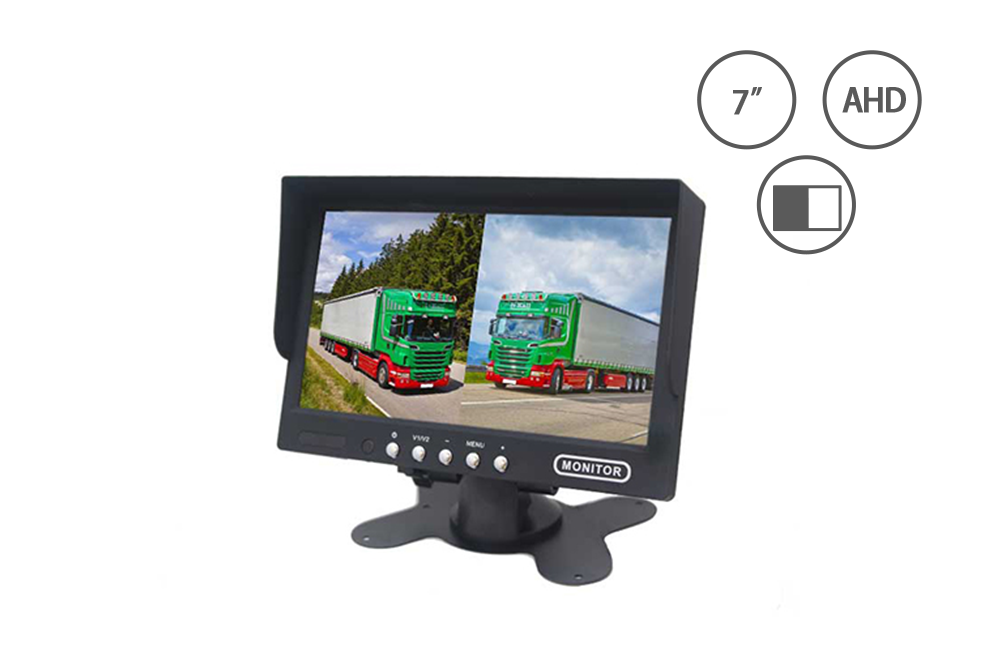

| » Model | CM-700HQ2 |
|---|
Features
- 2CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- AUTO Adaption PAL / NTSC System
Picture Quality
- 1024*RGB*600 Resolution
- IPS LCD Digital Screen
- 500 cd/㎡ Brightness
- 16:9 Screen Ratio
- 500:1 Contrast
- Full Display & Dual Split View Mode
Power Consumption
- Power Supply: DC 12-24V
- Currents: 12V/<1.1A
- Operating Power: 13.2W
Customization Options
- Mounting Bracket
- Packaging Color Box
- LOGO / Label
* MOQ Requirements

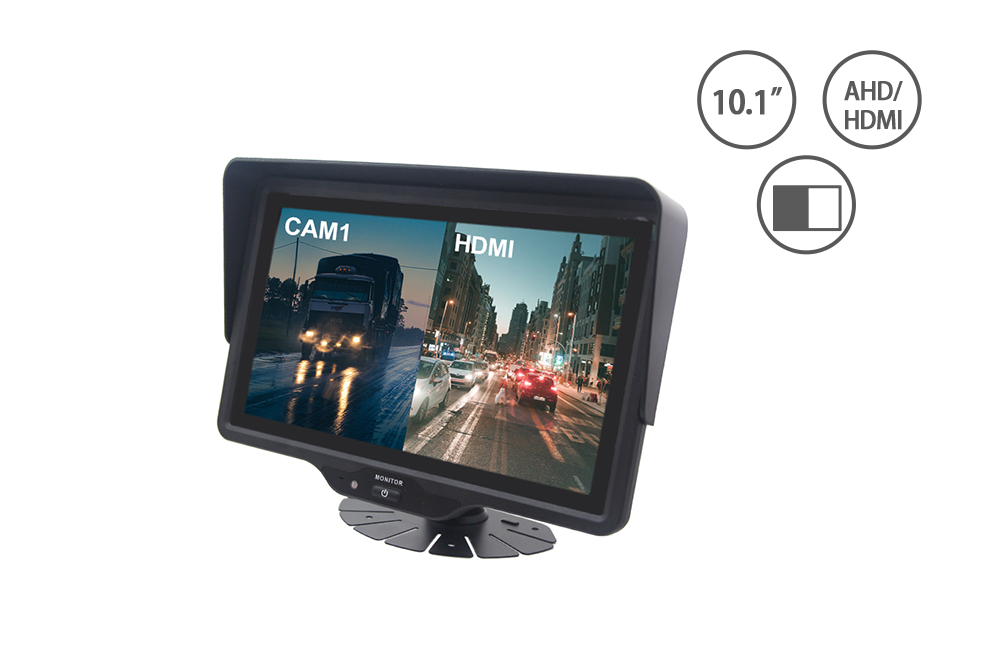

| » Model | CM-108HQ2-HDMI |
|---|
Features
- 2CH x Cameras Video Signal Input; 1CH HDMI Port;
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 2CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- AUTO Adaptation PAL / NTSC System
Picture Quality
- 1024*RGB*600 Resolution
- IPS LCD Digital Screen
- 500 cd/㎡ Brightness
- 16:9 Screen Ratio
- 800:1 Contrast
- Full Display & Dual Split View Mode
Power Consumption
- Power Supply: DC 12-24V
- Current Consumption: DC12V≈400mA, without Cameras
Customization Options
- Mounting Bracket
- Packaging Color Box
- LOGO / Label
* MOQ Requirements
AOTOP - Industry Leader Manufacturers in Commercial Vehicle Safety Systems
Since 2005, We specialize development in commercial vehicles safety system, committed to improving the road driving safety. With decades of expertise, we offer comprehensive range of innovative safety vision products designed to protect drivers, vehicle and pedestrian. Whether you are upgrading an existing system or to starting a new project, here are six key reasons why AOTOP is your trusted partner！
20 Years Industry Experience
Powerful Manufacturing
Good Quality, All Certificates
Professional Senior R&D Team
Responsive Customer Service
Faster Delivery Time
Let Us Know Your Needs
We’d love to get to know your business, requirements, expectations. Just fill in the form below:
“*” indicates required fields
