Quad View Monitor
AOTOP Offers Various of the Best Quad View Monitors for Vehicle Road Safety！
ALL QUAD VIEW MONITORS
One Screen Four Views, See All Around Your Vehicle at A Glance.
The quad split screen function of the car monitor is especially useful when multiple cameras are connected. It can simultaneously display the real-time images of multiple cameras to help drivers fully grasp the situation around the vehicle, thereby further improving driving safety. For example, when you need to view the video signals from two cameras at the same time, the monitor can display dual-screen; when you need to view the video signals from three cameras at the same time, it can display triple-screen; And for all-around monitoring, it can display quadruple-screen.
Whether backing up, changing lanes or driving in tight spaces, the split screen function provides critical visual information to help drivers make more accurate judgments and operations. With this all-encompassing monitoring, drivers can reduce blind spots and avoid potential hazards, thus significantly improving driving confidence and safety. If you have any questions, please contact us at sales@aotop.com.
| » Model | CM-500HQ |
|---|
Features
- 4CH x AHD Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 4 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching; Image Flip;
- AUTO Adaptation PAL / NTSC System
Picture Quality
- 800*RGB*480 Resolution
- IPS LCD Digital Screen
- 500 cd/㎡ Brightness
- 16:9 Screen Ratio
- 500:1 Contrast
Power Consumption
- Power Supply: DC 12-24V
- Currents: 12V/<1A
- Operating Power: <10W
Customization Options
- Mounting Bracket
- Packaging Color Box
- LOGO / Label

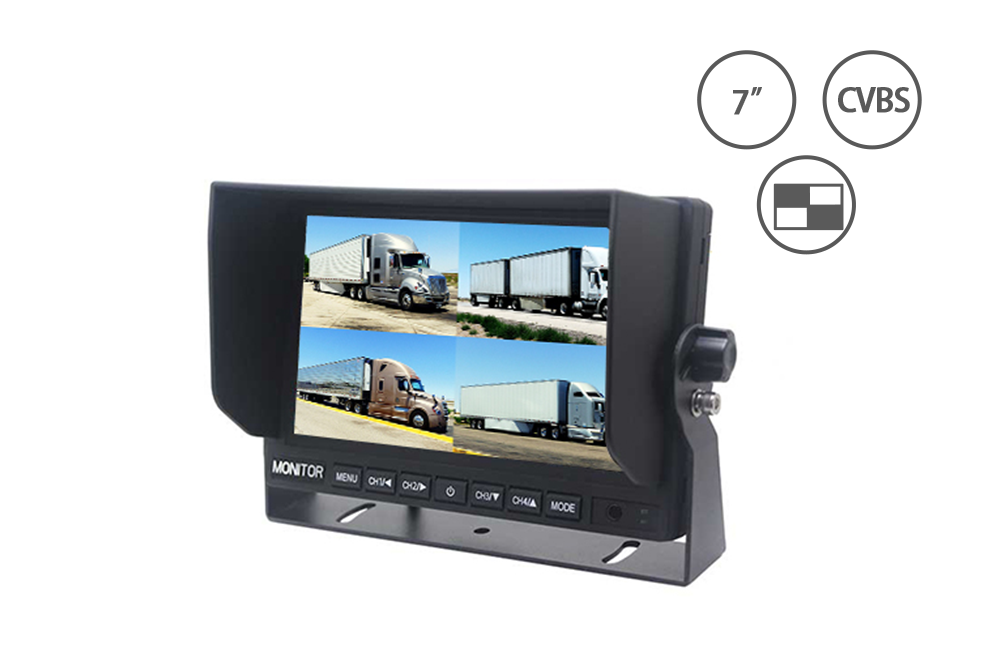

| » Model | CM-709MQ |
|---|
Features
- 4CH x CVBS Camera Video Signal Input
- 4 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- AUTO Adaptation PAL / NTSC System
Picture Quality
- 800*RGB*480 Resolution
- TFT LCD Digital Screen
- 500 cd/㎡ Brightness
- 16:9 Screen Ratio
- 500:1 Contrast
- Full Display & 2/3/4 Split View Mode
Power Consumption
- Power Supply: DC 12-24V
- Currents: 12V/<1A
- Operating Power: <10W
Customization Options
- Mounting Bracket
- Packaging Color Box
- LOGO / Label

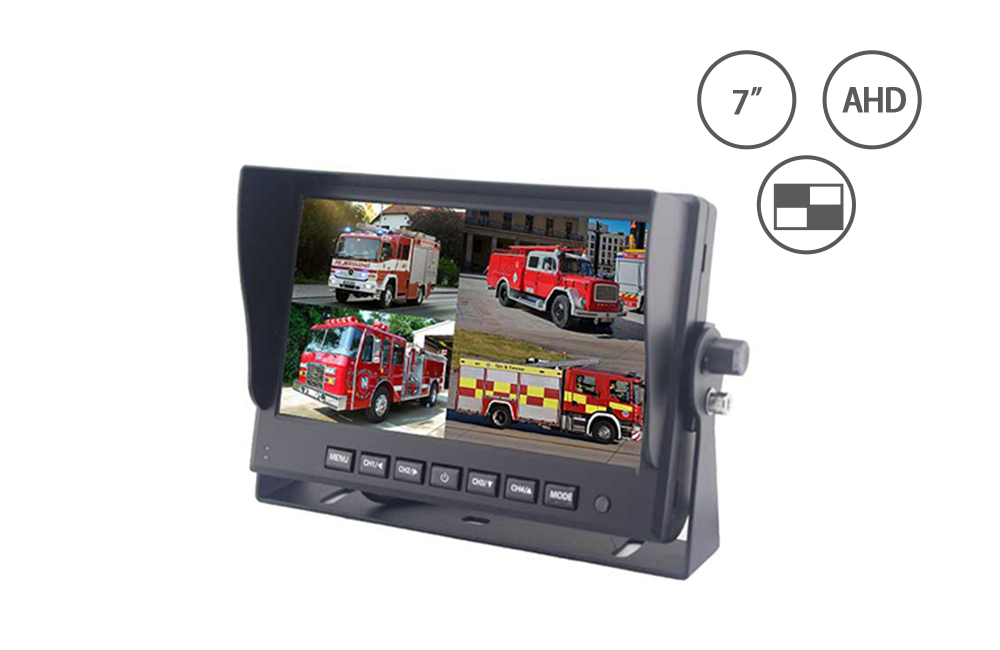

| » Model | CM-715HQ |
|---|
Features
- 4CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 4 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- AUTO Adaption PAL / NTSC System
Picture Quality
- 1024*RGB*600 Resolution
- IPS LCD Digital Screen
- 500 cd/㎡ Brightness
- 16:9 Screen Ratio
- 500:1 Contrast
- Full Display & 2/3/4 Split View Mode
Power Consumption
- Power Supply: DC 12-24V
- Currents: 12V/<1A
- Operating Power: <10W
Customization Options
- Mounting Bracket
- Packaging Color Box
- LOGO / Label
| » Model | CM-718HQ |
|---|
Features
- 4CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 4 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- AUTO Adaption PAL / NTSC System
Picture Quality
- 1024*RGB*600 Resolution
- IPS LCD Digital Screen
- 500 cd/㎡ Brightness
- 16:9 Screen Ratio
- 500:1 Contrast
- Full Display & 2/3/4 Split View Mode
Power Consumption
- Power Supply: DC 12-24V
- Currents: 12V/<1A
- Operating Power: <10W
Customization Options
- Mounting Bracket
- Packaging Color Box
- LOGO / Label

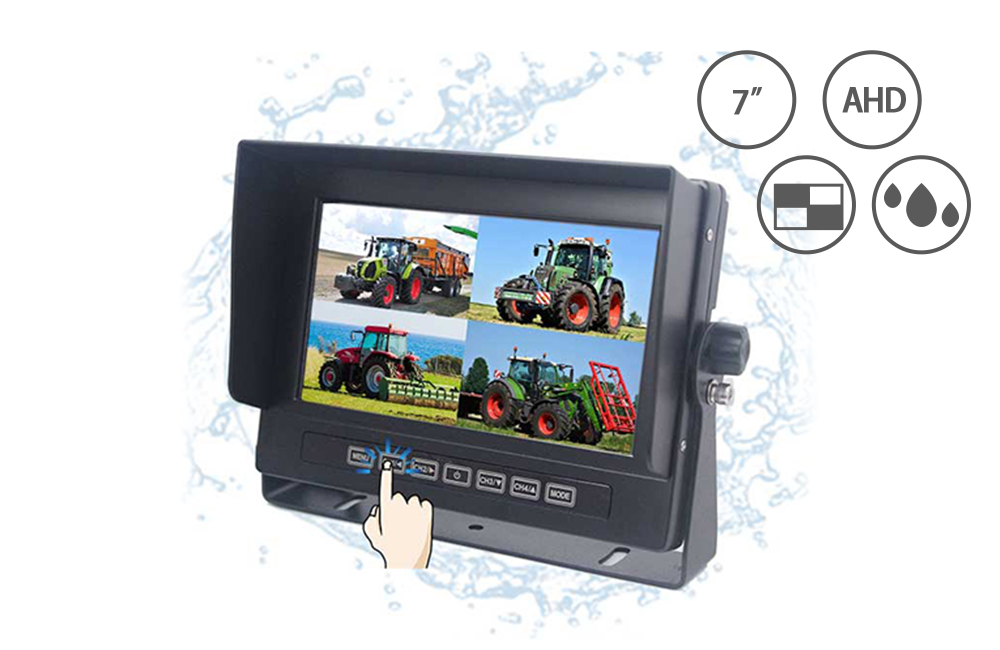

| » Model | CM-708WHQ |
|---|
Features
- IP68 Waterproof & Dustproof, Aluminium Alloy Material Shell
- 4CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 4 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- AUTO Adaption PAL / NTSC System
Picture Quality
- 1024*RGB*600 Resolution
- IPS LCD Digital Screen
- 500 cd/㎡ Brightness
- 16:9 Screen Ratio
- 500:1 Contrast
- Full Display & 2/3/4 Split View Mode
Power Consumption
- Power Supply: DC 12-24V
- Currents: 12V/<1A
- Operating Power: <10W
Customization Options
- Mounting Bracket
- Packaging Color Box
- LOGO / Label

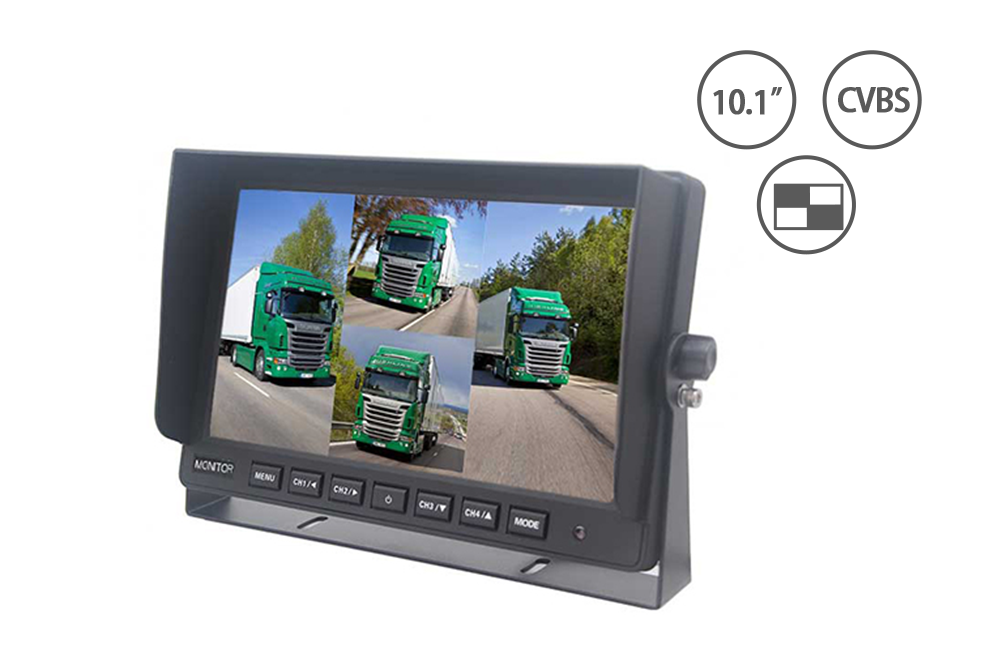

| » Model | CM-1010MQ |
|---|
Features
- 4CH x CVBS Camera Video Signal Input
- 4 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- AUTO Adaptation PAL / NTSC System
Picture Quality
- 1024*RGB*600 Resolution
- IPS LCD Digital Screen
- 500 cd/㎡ Brightness
- 16:9 Screen Ratio
- 500:1 Contrast
- Full Display & 2/3/4 Split View Mode
Power Consumption
- Power Supply: DC 12-24V
- Power Consumption: 9W
Customization Options
- Mounting Bracket
- Packaging Color Box
- LOGO / Label
