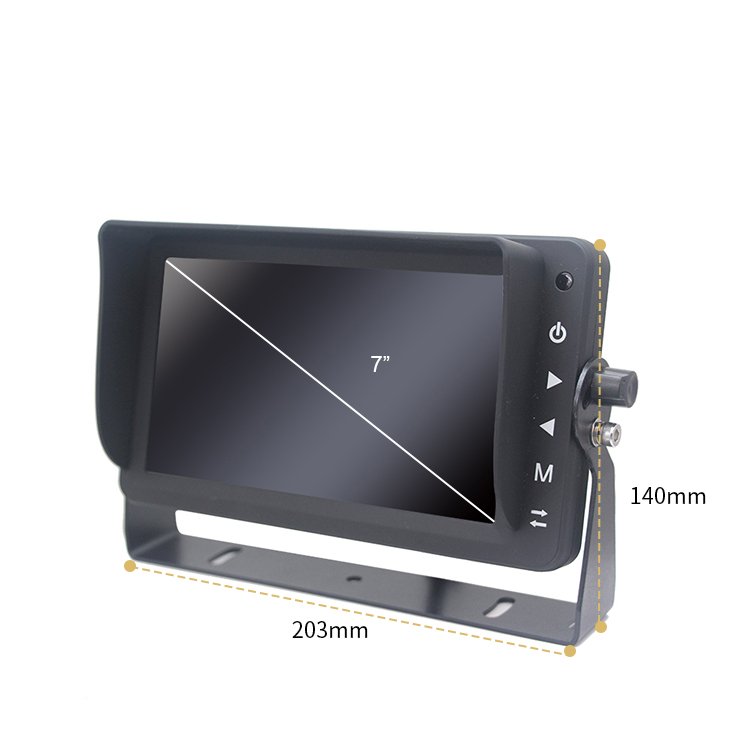

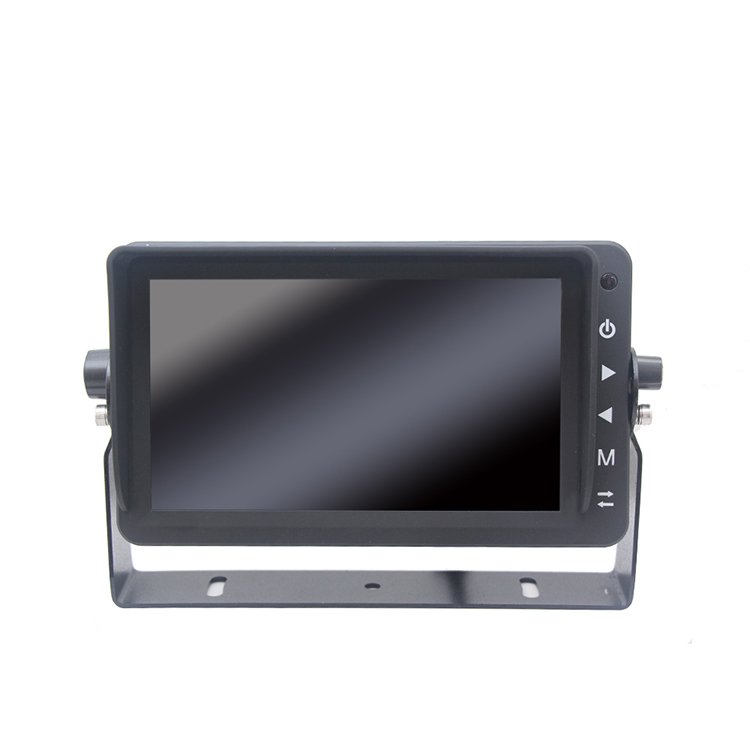

7 Inch Vehicle Quad Monitor with Touch Button
AOTOP 7 inch vehicle quad monitor with touch button supports 4CH AHD camera video signal input, provide all-around 1080P HD video monitoring to help driver see clearly view around their vehicle, effectively preventing scratches and reducing traffic accidents. It meets to users’ need for high quality in-vehicle monitoring with clear images and easy to use.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.
Features
- 1024*RGB*600 HD Resolution (IPS LCD Screen)
- 4CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 4 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- Full Display & 2/3/4 Split View Mode
- 1CH Audio Signal Input (High Quality Speaker)
- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO Adaption PAL / NTSC System
| Model | CM-718HQ |
| Aspect Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up 85°, Down 85°, Left 85°, Right 85° |
| Video Input |
Support 4CH AHD 1080P/720P/960P/CVBS Mixed Video Signal Input |
| Audio Input | 1CH, Available High Quality Speaker |
| OSD Menu |
Image Setting, Image Signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
| Response Time | 20~40Ms |
| Parking Guide Line |
Each Channel is Controlled Separately (Off As Default) |
| Mirror / Normal Image |
Each Channel is Controlled Separately (Mirror As Default) |
| Split View Mode | Single / Double / Triple / Quad View Image Display |
| Trigger | 4CH Trigger Lines |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/<1A |
| Operating Power | <10W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Operating Temperature | -20°C~+70°C (RH0%-RH90%) |
| Storage Temperature | -30°C~+80°C (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | E-Mark, UKCA, E24, CE, FCC |
Product Applications
AOTOP 7 inch vehicle quad monitor with touch button can be easily applied to various commercial vehicles and work well with our vehicle HD cameras. It helps drivers to see the surroundings of the vehicle in real-time, eliminating blind spots around the vehicle and reducing the risks of scratches and other accidents.
