3D Surround View AI 360 Vehicle Camera System for Trucks

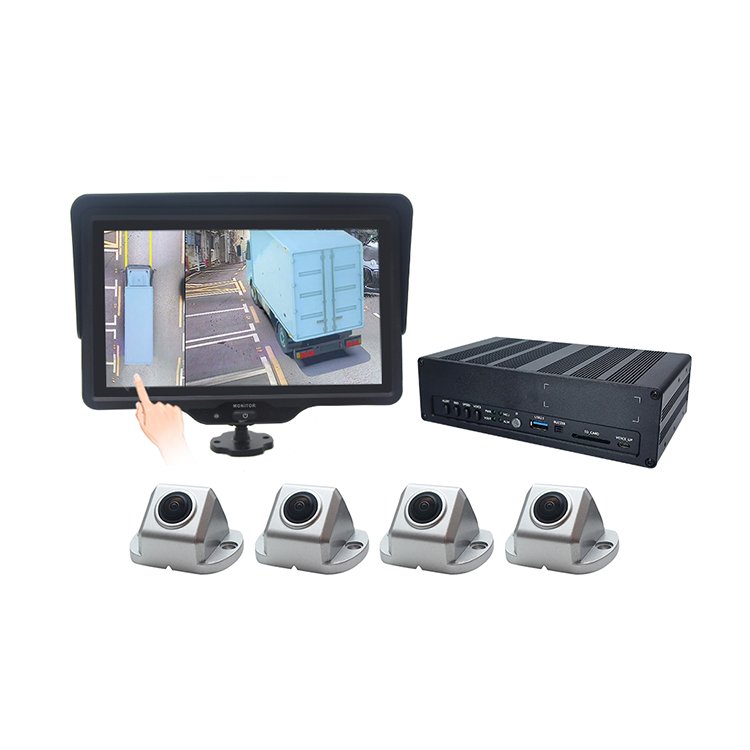

AOTOP HD 3D surround view AI 360 vehicle camera system for trucks supports 8CH wide angle HD cameras input. Depending on the vehicle length, it can be configured with 4~8CH camera. The core 360 control box come with 4CH signals panoramic stitching, built-in 4CH AI human and vehicles detection algorithms, and also supports 8CH video signal DVR video recording. The wide angle HD cameras are IP68 waterproof, ensuring reliable 360 panoramic monitoring even in harsh environment. 10.1″ & 7″ IPS touchscreen monitor is available. This system is good for various large commercial vehicles including RVs, buses, cranes, trailers, loaders, forklifts, container trucks, and fire trucks etc.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.
Features
【8CH 360 Surround View】– 8CH 1080P super wide angle 210° camera input, 360 surround view imaging system for a wide range of commercial vehicles and heavy duty vehicles, depending on the vehicle length, it can be configured with 4~8 cameras.

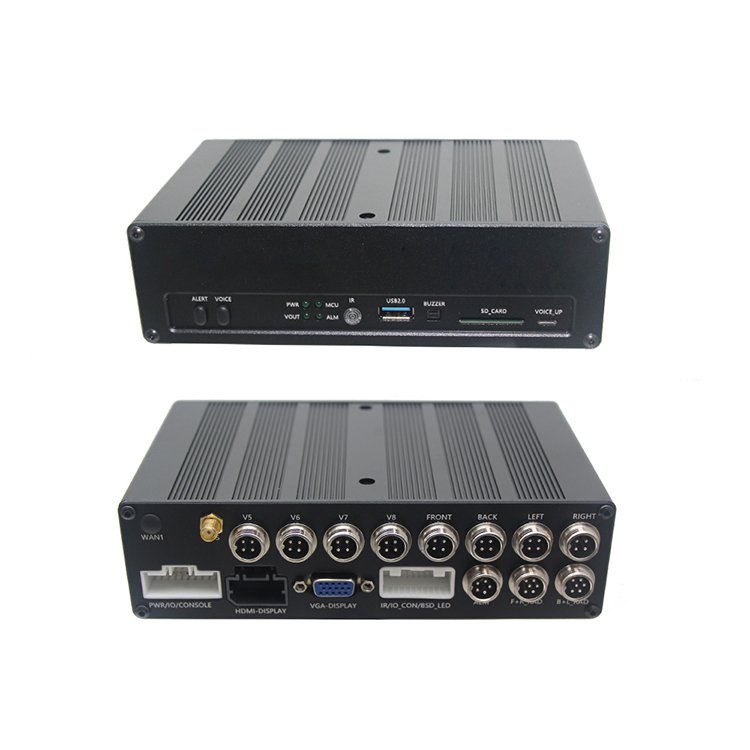

【360 Surround View Control Box】– Support 4CH wide-angle camera panoramic stiching, eliminating side, front and back blind spots of large vehicles.
Supports multiple video output options of CVBS, HDMI, VGA and AHD to ensure compatibility and adapt to different types of monitor devices.
【3D/2D Switching-Multiple Viewing Models】– 3D/2D view free switching.
【AI & BSD Detection】– 360 surround view control box has built-in 4CH AI algorithm, support pedestrian and vehicle detection and adjustable exclusion zone recognition. When detecting pedestrians or vehicles, the system issues warnings through sound and light alarm devices inside and outside the vehicle.
【DVR Video Recording】– Supports 8CH image HD recording. Two storage options, supports SD card storage (8G-512G) and 2.5 inch HDD or SSD storage via SATA interface (128G-2TB).
【Wide Voltage Design】– Compliant with ISO-7637 standard vehicle power supply specification, adopts DC 10-33V wide voltage design.

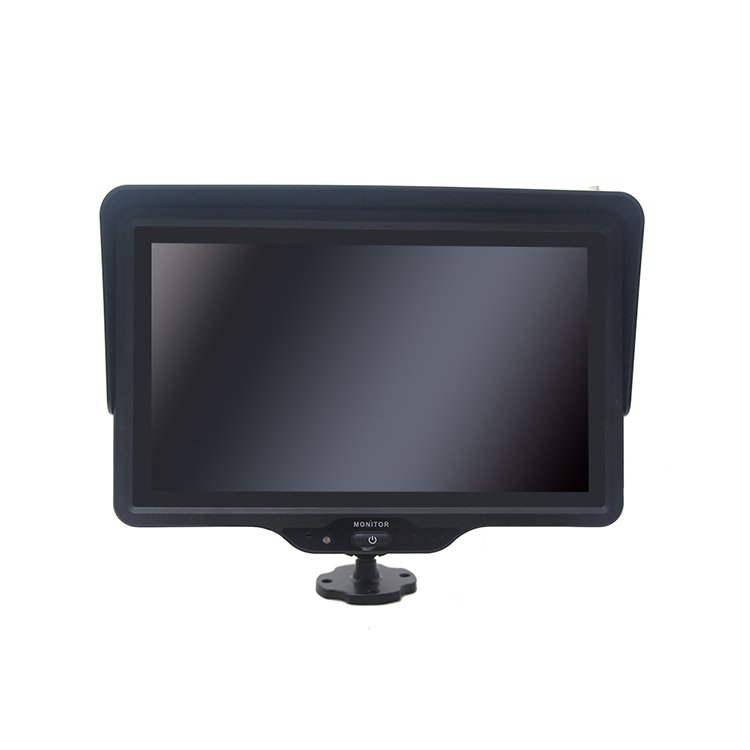

【10.1 Inch Monitor】– Full screen touch, 1024*RGB*600 IPS LCD Screen; With a HDMI interface;
【Other Optional】– 7″ IPS monitor / Movable lens camera / Warning device outside the vehicle / Calibration cloth * 4 etc.
| Model | VOX8-360 | |
| Electrical Parameters | Power Consumption | System Power Consumption: 10-30W |
| Power Protection |
Surge Protection, Reverse Polarity Protection, Low Voltage Protection, and Short Circuit Overload Protection |
|
| Operating Voltage | DC 12-36V | |
| Video Output Interface | AHD Video Output【Optional】 |
Standard GX12-4P Female Connector, with 2CH of AHD 720P/1080P Output (360 Panoramic Image, Compatible with Standard Equipment and MDVR) |
| CVBS Video Output | Standard GX12-4P Aviation Female Connector, Supports PAL / NTSC Formats | |
| VGA Video Output | Standard DB15 Female Connector, with Built-in DC 12V Regulated Power Supply | |
| HDMI Video Output |
Dedicated HDMI Output Interface, with Built-in DC 12V Regulated Power Supply and Serial Communication Function. Paired with AOTOP HDMI Monitor, Requiring No Extra Power, Making Installation Easier. Also the Touch Screen Supports More Convenient Operation |
|
| Video Input Interface | AHD Video Input |
4~8CH of 1080P AHD Camera Input, Standard GX12-4P Aviation Male Connector, with DC 12V Regulated Power Supply |
| AI Blind Spot Warning Function | AI Warning |
The System Features Built-in AI Algorithms for 360 Blind Spot Detection. It Alerts Drivers Through the Cabin Monitor (Visual) + Blind Spot (BSD - LED) Indicator Lights (Light) + Intelligent Voice Broadcast (Audible), Provide Comprehensive (3 in 1) Warning System. Additionally, It Connects to External Audio & Visual Alarm to Warn Pedestrians or Non-Motor Vehicles Entering the Blind Spot, Enhancing Overall Driving Safety |
| CAN Communication Function | Features |
High-Speed CAN Bus Transceiver, Compliant with ISO 11898 Standards, with Low Power Management and Network Wake Up Functionality |
| Storage Function | MSATA_SSD (Optional) | Support 2.5 Inch HDD or SSD Storage via SATA Interface (128G-2TB) |
| SD_CARD | Standard SD Card Storage Function, Supporting 8G-512G | |
| Physical Specifications | Dimension | 105mm (L) x 178mm (W) x 50mm (H) |
| Weight |
360 Box: 0.65KG; Whole System: 2.9-4KG (Weight Difference Due to Varying Cable Lengths) |
|

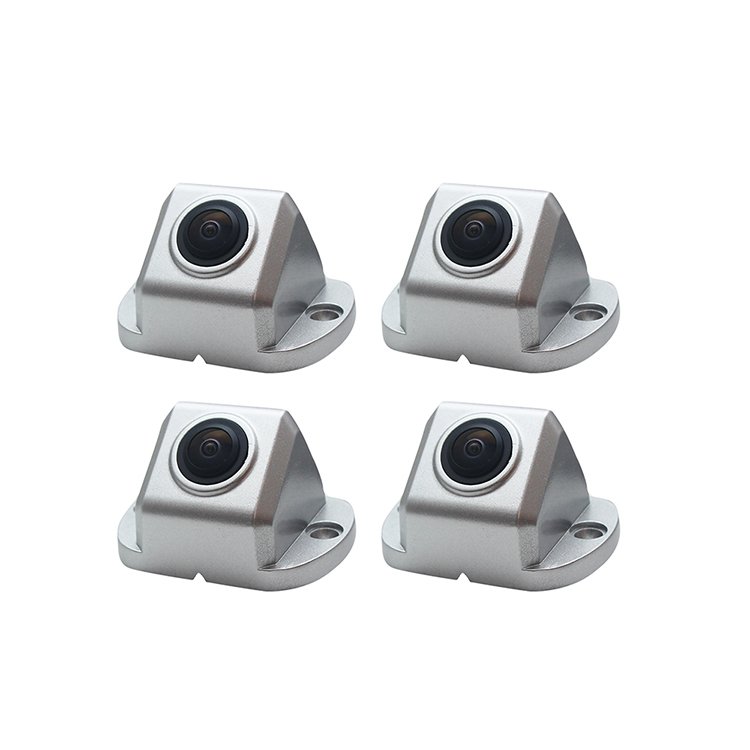

| Camera Parameters | Voltage | DC 8-16V |
| Power Consumption | 0.5-1W Per Camera. | |
| Resolution | AHD 1080P | |
| Operating / Storage Temperature | -30°C~+70°C / -40°C~+85°C | |
| Video Frame Rate | Capture Rate 25 FPS (Frames Per Second) | |
| Waterproof Rating | IP68 | |
| Low Light | 0.01 Lux | |
| Vibration / Shock | Complies with MIL-STD-810F, Method 516.5 | |
| Horizontal Angle | 210° | |
| Vertical Angle | 126° | |
| Aperture | 1.6±5% | |
| Focal Length | 1.5MM | |
| Recording Parameters | Video Format | H.265 |
| Recording Resolution | 1920*1080P | |
| File Size | 1.25GB / Hour | |
| 360 Box Parameters | IP Protection Rating | IP51 |
| Operate Temperature | -20°C~+70°C | |
| Storage Temperature | -40°C~+80°C | |
| Vibration / Shock | Complies with MIL-STD-810F, Method 516.5 | |
| Housing Material | High Quality Aluminum Alloy with Anodized Brushed Finish | |
| HDMI HD Monitor Parameters | Screen Size | 10.1 Inch / 7 Inch【Optional】 |
| Aspect Ratio | 16:9 | |
| Resolution | 1024*R.G.B*600 | |
| Touch Screen |
Capacitive Touch, Supports Full Touch Operation in 360 Display Mode and All 360 Functions |
|
| Brightness | LED, 500 cd/㎡ | |
| Contrast Ratio | 500:1 | |
| Screen Angle | Up 85°, Down 85°, Left 85°, Right 85° | |
| Video Output | HDMI | |
| Operate Temperature | -20°C~+70°C | |
| Storage Temperature | -30°C~+80°C | |
| Audio-Visual Alarm Function【Optional】 | Specifications |
Voltage DC 10-36V, Maximum Power Consumption 6W, Protection Rating IP69K, Speaker Volume 105 Decibels, RS485 Communication |
Why 3D Surround View 360 Vehicle Camera System?
A single rear view system can’t completely eliminate vehicle blind spots, where can you find the perfect fleet management solution?
How can you improve vehicle perception in complex road conditions and environments?
How can you quickly provide evidence in case of an accident or rear-end collision?
In order to expand the driving field of vision, 360 all-round environmental perception must be achieved. This requires comprehensive monitoring of the vehicle’s surroundings by installing a 360 vehicle camera system. HD Surround view 360 vehicle camera system is an intelligent panoramic monitoring system designed to assist low-speed driving by providing the driver with a complete real-time panoramic view of the vehicle.
Multiple Viewing Models, 3D & 2D Switchable
Allowing user can switch 3D/2D view freely, meets the needs of all kinds of viewing angles.
Built-in AI Human & Vehicle Detection Algorithm
The system core 360 control box has a built-in 4CH AI algorithm, support human and vehicle detection, as well as adjustable no-entry zone recognition. When a pedestrian or vehicle is detected, the system will issue a warning through audio and visual alarms both inside and outside the vehicle. Also alert other vulnerable road users outside the vehicle.
Strong Video Recording Function, Supporting 8-512GB SD Card / 2T SSD
Supporting 4CH/8CH HD video recording, in the unfortunate event of a rear-end collision or other traffic accidents, it can fully restore what happened during the accident and provide important first-hand evidence. This not only helps insurance companies to speed up the claims process, but also reduces disputes caused by unclear responsibility, and effectively protects the legitimate rights and interests of drivers.
UI Model Customization
Vehicle UI model customization, providing a more intuitive monitoring experience.
Product Applications
AOTOP 3D surround view AI 360 vehicle camera system is widely applied in RVs, buses, cranes, trailers, loaders, forklifts, container trucks, and fire trucks and other commercial vehicles, fully covering the blind spot around the vehicle body, ensuring the safety of drivers, away from dangerous accidents.
