7 Inch HD Quad View Wireless Car Camera System

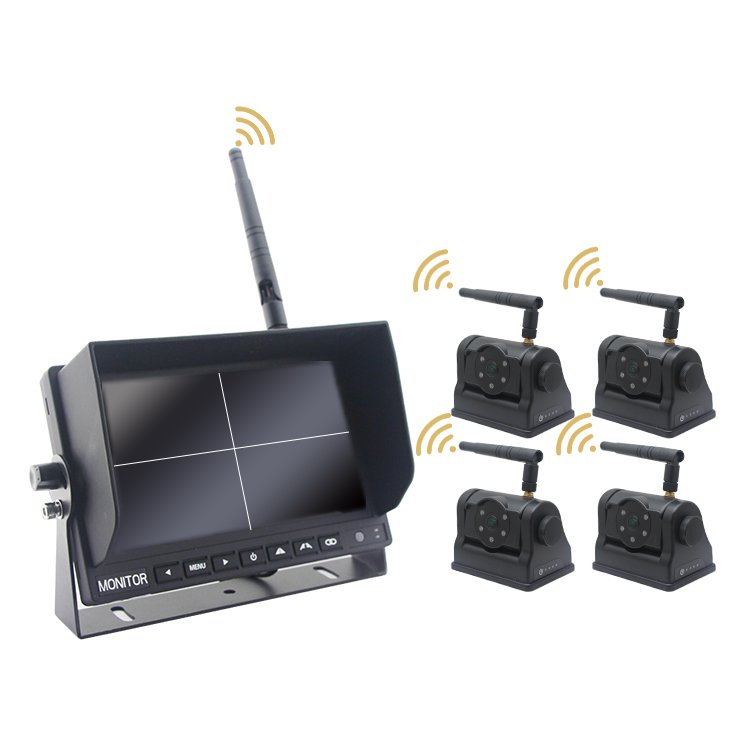

AOTOP 7 inch HD quad view wireless car camera system, it is easily to install without wiring. The monitor support 4CH wireless vehicle camera video signal inputs. The camera base is a magnet, so the install is simple and convenient. The video transmissions range is up to 200M (656ft). This wireless system is good for trucks, trailers, RVs, forklift, vans and other commercial vehicles.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.
Features
- 7 Inch IPS LCD Screen, 1024*R.G.B*600 High Definition Resolution.
- Support 4CH Video Signals Input, A Variety of Monitors Modes Quad View, Double View, Triple View and Single View to Meet Various Monitoring Needs and Reduce Blind Spots.
- Support 720P AHD Camera Wireless Video Signal Inputs.
- 2.4G Wireless Signal Transmission 200M (656ft) Wireless Transmission Distance, without Wiring Easy to Install, Save Money and Time.
- Rear View Parking Lines Can be Configured.
- Camera Features IP67 Waterproof, HD Night Vision etc. Magnetic Base Quick Installation.
- Camera Built-in 6400mAh Rechargeable Battery, Can Work Continuously for 18 Hours.
- Supports Manual and AUTO Pairing, Easy to Operate. After the First Pairing is Completed, Just Connect the Car Power Supply to Work.

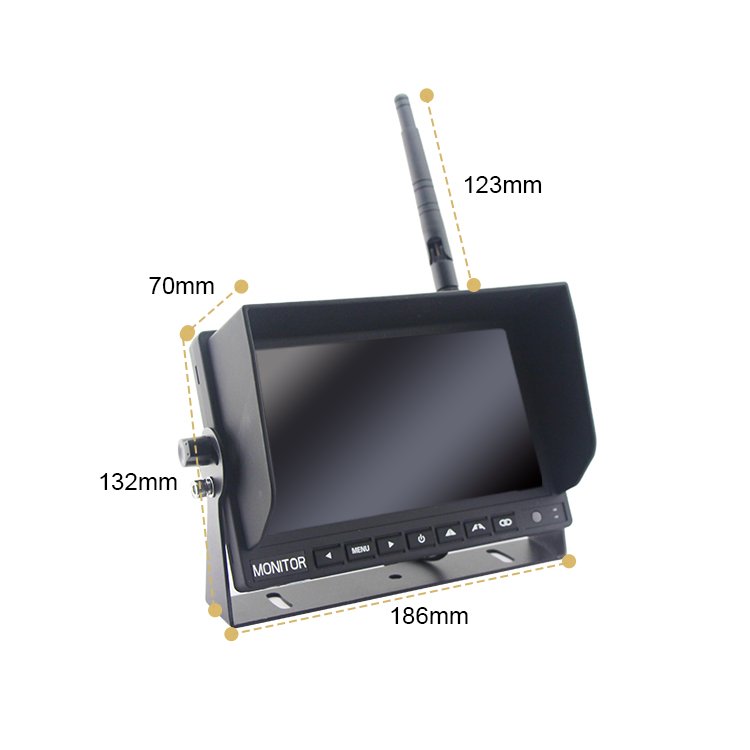

| WIRELESS VEHICLE MONITOR | |
| Screen Ratio | 16:9 / IPS |
| Resolution | 1024*R.G.B*600 |
| Luminance | LED, Brightness 500 cd/㎡ |
| Viewing Angle | Hor. Left 85°, Right 85° / Ver. Up 85°, Down 85° |
| Trigger | 4 Trigger Control |
| Wireless Input | 4CH AHD Wireless Input |
| Audio | Without (Customized) |
| System | PAL / NTSC Automatically |
| Working Frequency | 2400 ~ 2483.5MHz |
| Receiving Sensitivity | -89dBm@4MHZ |
| Image Delay Time | 120mS |
| Wireless Reception Range | 200M (656ft) in Open Area |
| Operating Temperature | -20ºC~+70ºC / 85%RH MAX |
| Storage Temperature | -30°C~+85ºC / 95%RH MAX |
| Vibration Rating | 4G |
| Power Consumption | ＜5W |
| Power Supply | DC 12-24V |
| WIRELESS VEHICLE CAMERA | |
| Image Sensor | CMOS 1/2.7” |
| Effective Pixels | 1280×720 Pixels |
| Viewing Angle | 140° |
| Wireless Transmission Distance | 200M (656ft) in Open Area |
| System | NTSC / PAL Automatically |
| Spread Spectrum | FHSS (Adaptive Frequency Hopping) |
| Transmission Bandwidth | 8MHz BER<1E-3 |
| Battery Capacity | 6400mAh |
| Battery Indicator | Support, 4 LED Lights |
| Battery Charging Time | DC5.5, 5~24Volts, 6hours |
| Working Time with Fully Charged | 18 Hours (Under Continuous Working Conditions) |
| Camera Adjustable Angle | 0-100° |
| Frequency | 2400-2483.5MHZ |
| ON/OFF Mode |
Long Press to ON/OFF, Short Press to Show Battery Status |
| Installation Mode | Magnet Base Adsorption Installation |
| Night Vision | Infrared HD Night Vision |
| SNR | 46.5dB |
| Audio | Without (Customized) |
| Waterproof Level | IP67 |
| Transmitting Sensitivity | -89 dBm |
| Material | Aluminium Alloy |
| Shockproof Level | 4G |
| Operation Temperature | –20℃~70℃ / RH85%MAX |
| Storage Temperature | –30℃~85℃ / RH95%MAX |
| Warranty | 2 Years |
Product Applications
AOTOP 7 inch HD quad view wireless car camera system requires no wiring. Through simple installation, it can be applied to a variety of vehicles such as forklifts, cranes, trailers, trucks, RVs, vans and other commercial vehicles.
