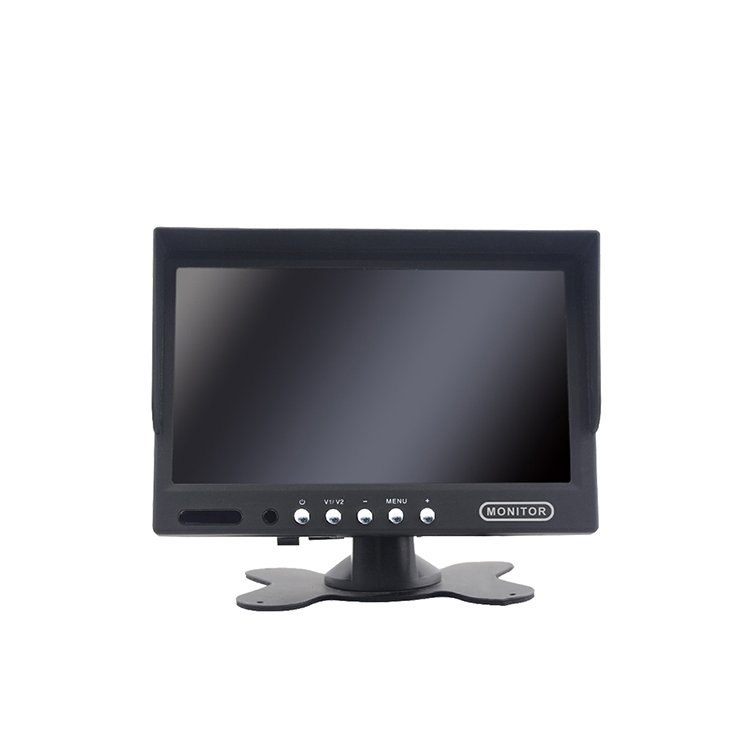

7 Inch High Definition Vehicle Backup Monitor
AOTOP 7 inch high definition vehicle backup monitor supports 2CH HD backup camera input, dual split view display allowing drivers can view 2CH camera video signal at the same time while driving. Support multi-language settings & mirror switching. The monitor can meet customers’ requirement for in-vehicle high quality monitoring and easy to operation.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.
Features
- 1024*RGB*600 HD Resolution (IPS LCD Screen)
- 2CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 1CH Audio Signal Input (High Quality Speaker)
- Full Display & Dual Split View Mode

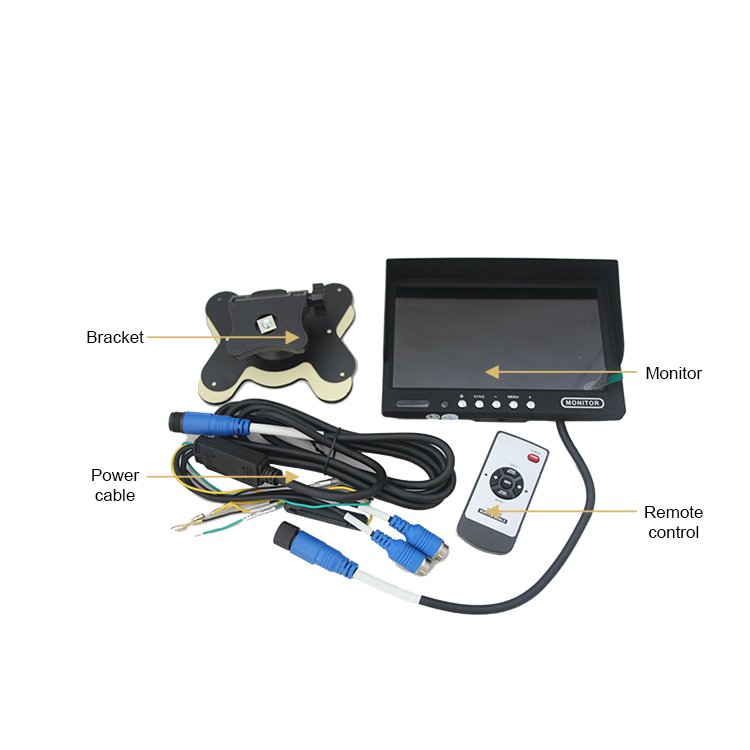

- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO Adaption PAL / NTSC System
| Model | CM-700HQ2 |

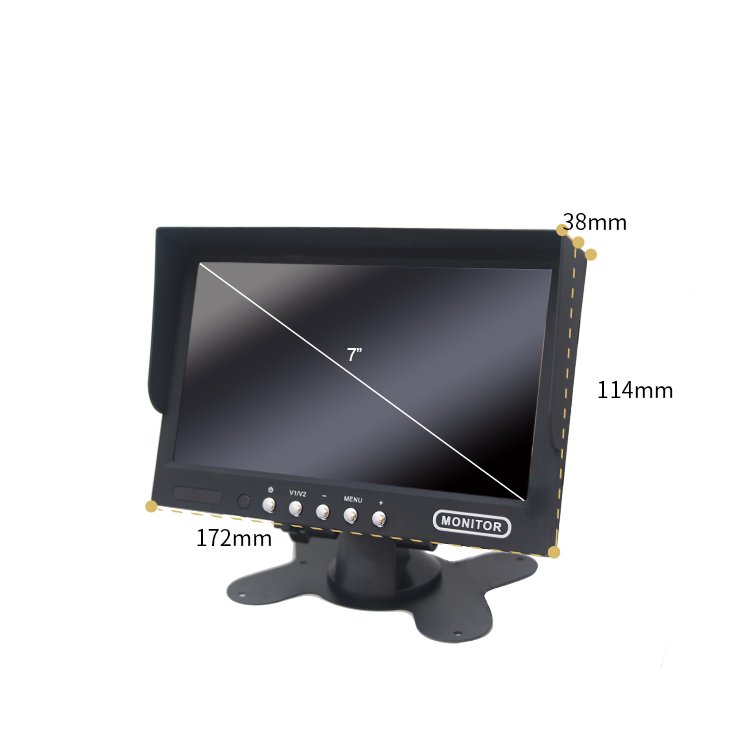

| Screen Size & Type | 7 Inch IPS LCD Screen |
| Aspect Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Brightness | 500cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up 85°, Down 85°, Left 85°, Right 85° |
| Video Input |
Support 2CH AHD 1080P/720P/960P/CVBS Mixed Video Signal Input |
| Audio Input | 1CH Camera Audio Input (Available Speaker) |
| OSD Menu |
Image Signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Parking Guide Line On/Off, Reset |
| Parking Guide Line |
Each Channel is Controlled Separately (Off As Default) |
| Mirror / Normal Image |
Each Channel is Controlled Separately (Mirror As Default) |
| Split View | Full & Dual Split View Display |
| System | AUTO Adaptation PAL / NTSC |
| Power Supply | DC 12-24V |
| Currents | 12V/1.1A |
| Operating Power | 13.2W |
| Boot Time | About 2~3 sec. |
| Connection Plug (Connector) | Waterproof Aviation Female Connector |
| Vibration Rating | 4G |
| Operating Temperature | -20°C~+70°C (RH0%-RH90%) |
| Storage Temperature | -30°C~+80°C (RH0%-RH90%) |
| Warranty | 2 Years |
| Certification | E-Mark, UKCA, E24, CE, FCC |
Product Applications
AOTOP 7 inch high definition vehicle backup monitor can be easily applied to various commercial vehicles and work well with our vehicle HD cameras. It helps drivers see their surrounding clearly and effectively reduce the risk of scratches and accidents.
