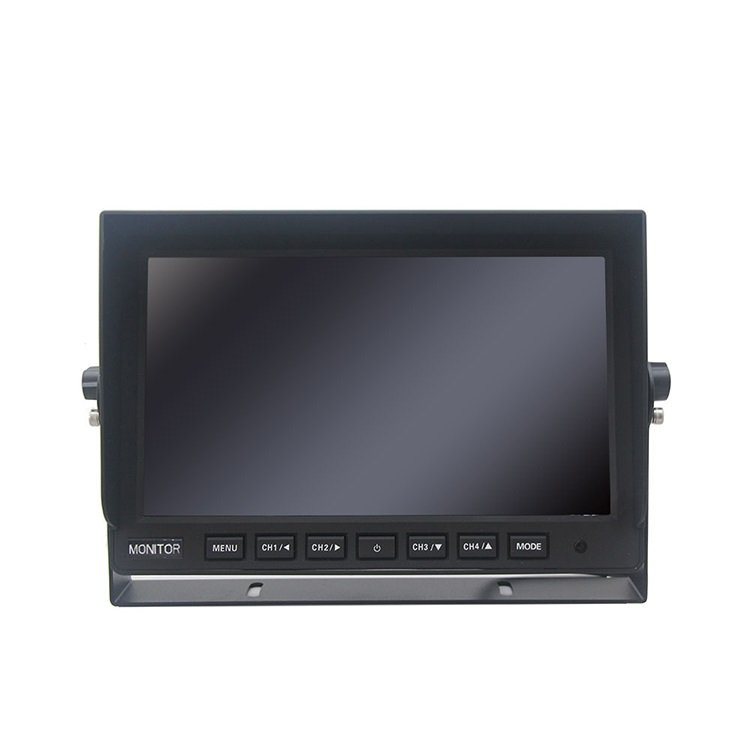

10.1 Inch AHD Quad DVR Recording Monitor
AOTOP 10.1 inch AHD Quad DVR recording monitor supported 4CH AHD video signal input, connects to 4 1080p vehicle cameras to help drivers understand the situation around the vehicles at any time. Reducing the possibility of blind collision, scratching and other accident. Built-in DVR loop video recording function can provide important video evidence in the event of an traffic accidents, improving the safety and operational efficiency of the fleet.
Our EXP
Years Auto Electronics Industry Experience
Quality
We ensure each product meets strict quality standards, 100% tested.
Customized
With the great R&D, we offer professional OEM & ODM services.
Warranty
Support 2 years warranty service, PRO after-sales technical support.
Features
- 1024*RGB*600 Resolution (IPS LCD Screen)
- 4CH x Cameras Video Signal Input
- Multiple Video Formats Available to Cameras: 720P / 1080P / AHD / Compatibility CVBS
- 4 Trigger Lines Input, Trigger Line Definition, Trigger Delay & Priority Can Be Adjusted Freely;
- Full Display & 2/3/4 Split View Mode
- 1CH Audio Signal Input (High Quality Speaker)
- Max. 256GB Memory Card (4CH DVR HD Loop Recorder)

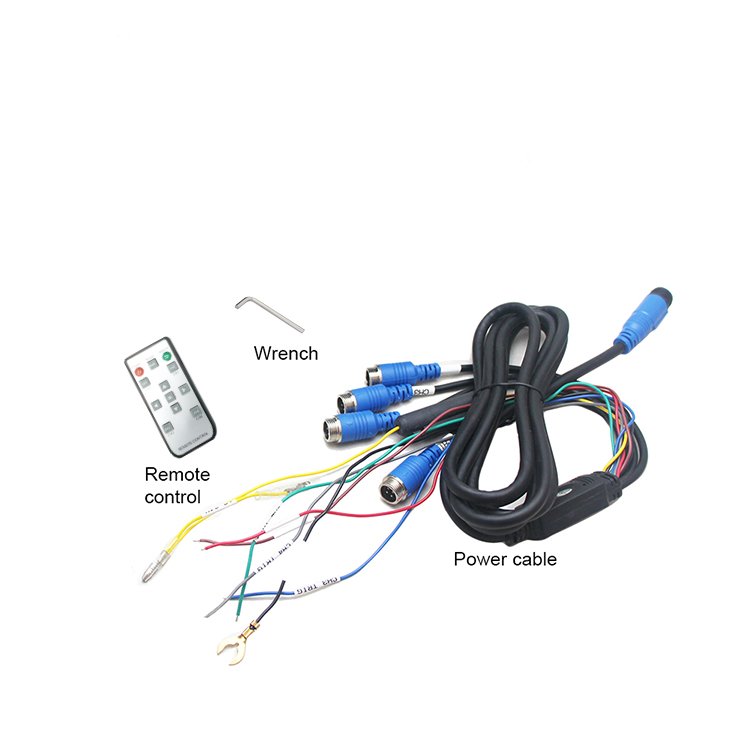

- Full-Function Remote Control
- Multi-Language Settings
- Horizontal Mirror Image Switching
- DC 12-24V Wide Voltage
- AUTO Adaptation PAL / NTSC System
| Model | CM-1010HQ |

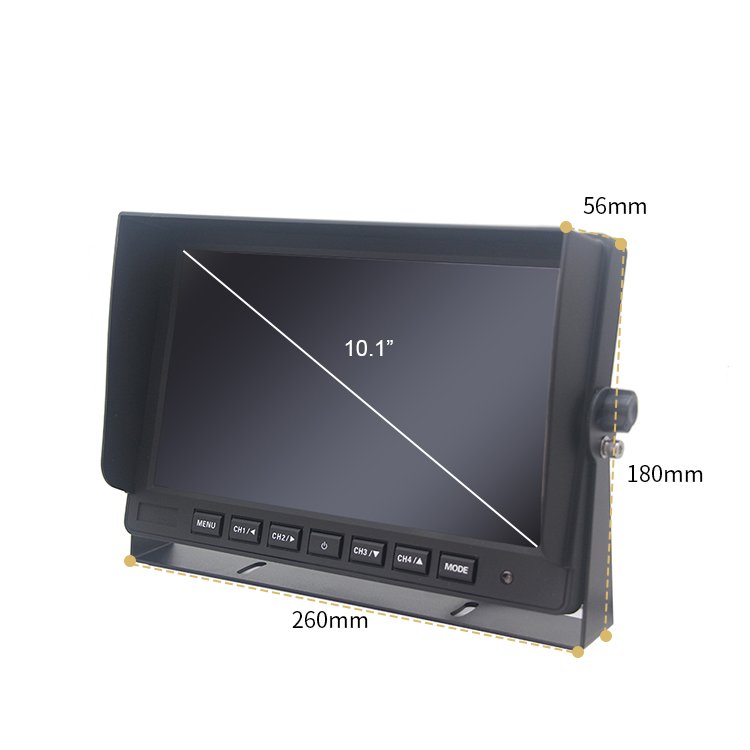

| Screen Size | 10.1 Inch HD Color IPS Screen |
| Screen Ratio | 16:9 |
| Resolution | 1024*R.G.B*600 |
| Luminance | 400cd/㎡ |
| Contrast | 500:1 |
| Viewing Angle | Up 85°, Down 85°, Left 85°, Right 85° |
| Video Input |
Support 4CH 1080P/720P/960P/CVBS Mixed Video Signal Input |
| Audio Input |
1CH Audio Input for CH1 (No Audio When Playback) |
| OSD Menu |
Image Setting, Image Signal Turnover, Blue/Black Screen (No Signal), Multi-Language Setting, Recording Setting, Parking Guide Line On/Off, Reset |
| DVR | Built-in |
| Parking Guide Line |
Each Channel is Controlled Separately (Off As Default) |
| Mirror / Normal Image |
Each Channel is Controlled Separately (Mirror As Default) |
| Reversing Delay |
Each Channel is Controlled Separately (3S As Default) |
| Storage Memory Card | SD Card (C10), 256G (Max. C10) |
| Compressed Format | H.264 |
| Recording Resolution | 1080P |
| Recording File Output | AVI |
| Recording Replay | Support Single Image Real Time Replay |
| Language | English / Chinese |
| Image Display | Single / Double / Triple / Quad Image Display |
| Trigger | 4CH |
| Speaker | 1CH |
| System | PAL / NTSC (Automatically) |
| Power Supply | DC 12-24V |
| Currents | 12V/1.1A |
| Operating Power | 13.2W |
| Boot Time | About 3 Sec. |
| Operating Temperature | -20ºC~+70 ºC |
| Operating Humidity | 95%RH |
| Storage Temperature | -30ºC~+80 ºC |
| Vibration Rating | 4G |
| Warranty | 2 Years |
| Certification | E-Mark, UKCA, E24, CE, FCC |
Product Applications
AOTOP 10.1 inch AHD quad DVR recording monitor can be easily applied to various commercial vehicles and work well with our HD vehicle cameras. It can helps drivers to see the surroundings of the vehicle in real-time, eliminating blind spots around the vehicle and reducing the risks of scratches and other accidents. Built-in DVR video recording function can providing important video evidence in the event of an accident, facilitates incident review and liability determination.
